Shop Click Boards GNSS RTK 5 Click front

View larger

GNSS RTK 5 Click

PID: MIKROE-6451

Weight: 23 g

Status:

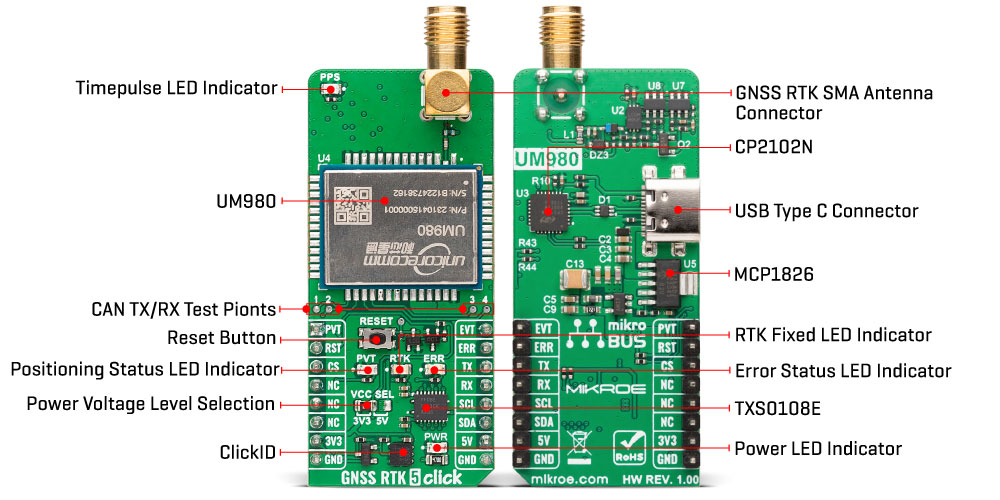

Type GPS/GNSS,RTK Applications Ideal for applications such as surveying, precision agriculture, UAVs, and autonomous robotics On-board modules UM980 - all-constellation multifrequency RTK positioning module from Unicore Key Features High-precision RTK positioning, module based on NebulasIV SoC, supports multifrequency and all-constellation GNSS, JamShield adaptive anti-jamming technology, UART and USB interface, visual status indicators, CAN TX/RX signals, and more Interface UART,USB Feature ClickID Compatibility mikroBUS™ Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V or 5V,External

OFF

QTY	%	PPU
2	5%	$284.05
5	10%	$269.10
10+	15%	$254.15

Looking for a customized version of this product?

If you have other questions about this product contact us.

Specification

Type	GPS/GNSS,RTK

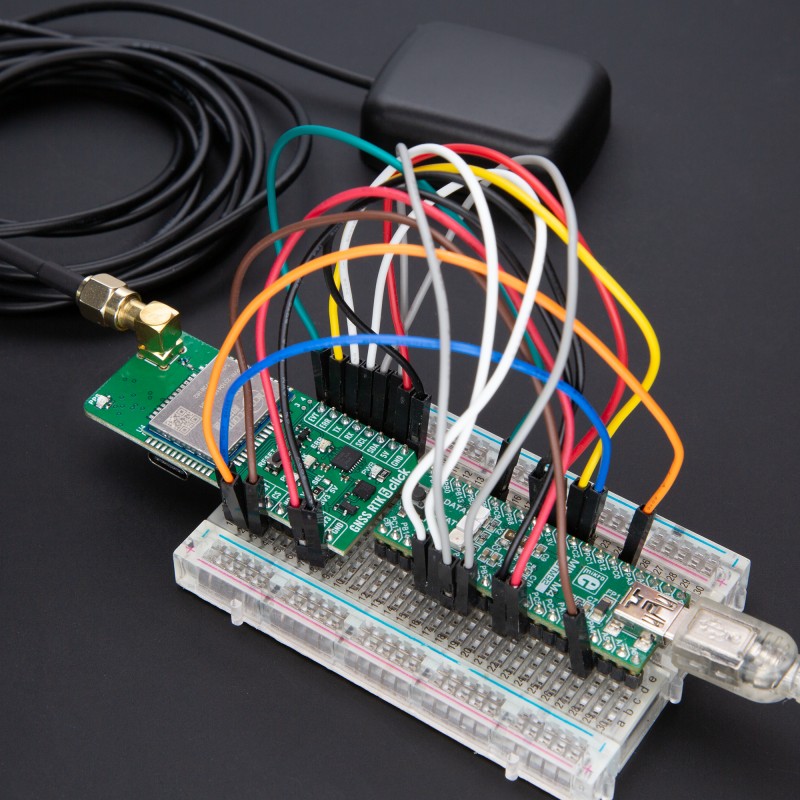

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
