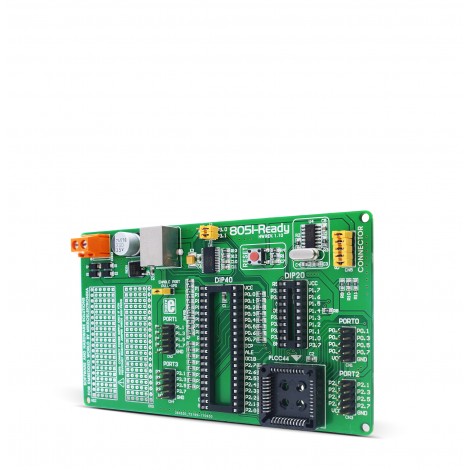

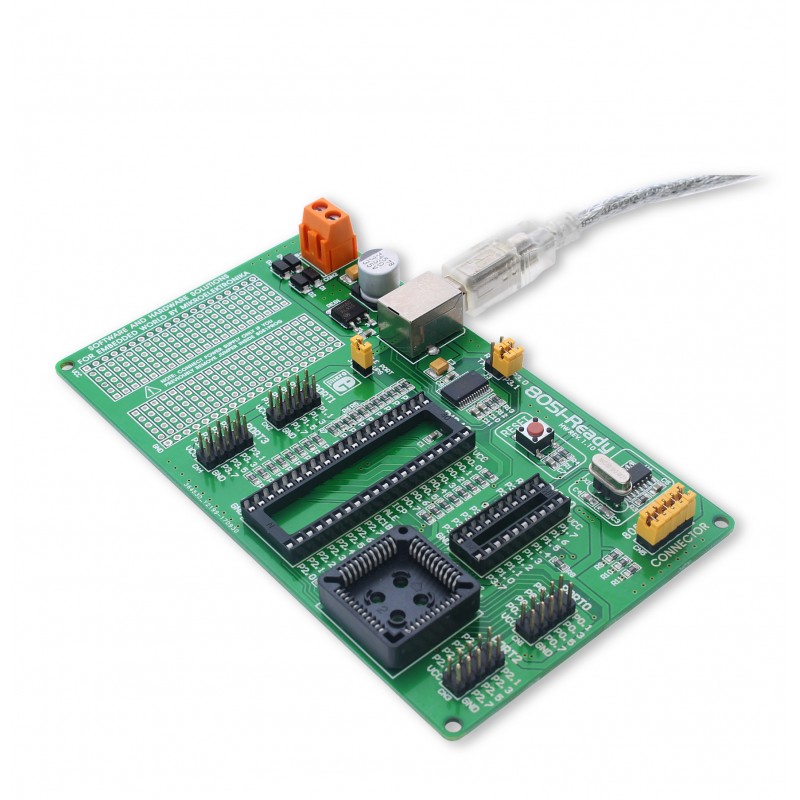

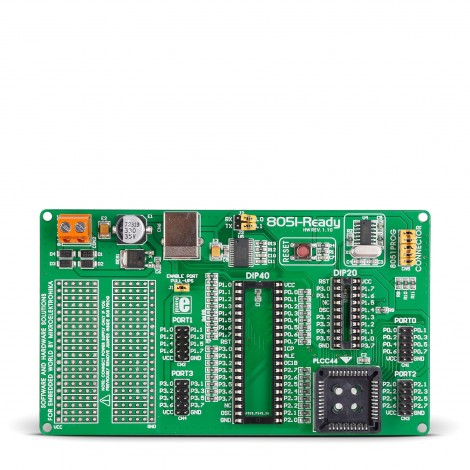

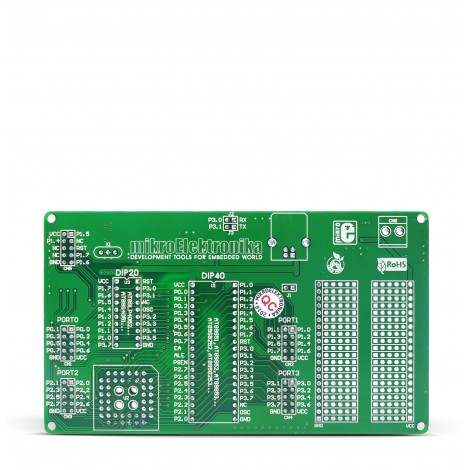

The 8051-Ready Board is the best solution for fast and simple development of 20-, 44-pin DIP and PLCC44 8051 microcontroller applications. It includes connectors for connecting the 8051prog2 in-system stand-alone programmer that enables you to program MCUs without any other additional device. There are also IDC10 connectors linked to the MCU pins provided on the board. These conectors enable numerous additional modules to be connected to the board, so you can quickly assemble functional working environment that perfectly suits your needs.
This tool also contains a USB to serial UART interface FT232R which simplifies USB to serial designs and reduces external component count by fully integrating an external EEPROM, USB termination resistors and an integrated clock circuit which requires no external crystal into the device.
Note: 8051 microcontroller, USB cable and 8051prog programmer are not included in the price!
|Applications||The 8051-Ready Board is the best solution for fast and simple development of 20-, 44-pin DIP and PLCC44 8051 microcontroller applications|
|On-board modules||USB-UART module|
|Key Features||On-board USB to serial UART interface FT232R can be easily connected to a PC|
|Expandability||4 x IDC10 male headers|
