MIKROE-6469
105 g
Status:
GNSS L1/L5 Band Active Antenna - Standard Precision (ANN-MB5) is a high-performance multi-band GNSS antenna designed for standard precision positioning in challenging environments. It is a multi-band RHCP stacked-patch element that supports L1, L5, E5a, B2a, and NavIC frequencies for GPS, Galileo, and BeiDou constellations. Its built-in low-noise amplifier (LNA) with SAW pre-filtering ensures enhanced signal quality and interference suppression, while the 3-meter cable with an SMA connector offers installation flexibility. Compact and cost-effective, it seamlessly integrates with u-blox multi-band GNSS receivers like the F10 platform, minimizing development efforts and accelerating time-to-market. It is ideal for applications requiring reliable and accurate positioning, such as navigation, asset tracking, and precision timing systems.
This product is no longer in stock
Availability date:
OFF
| Company | Stock | Price |
|---|---|---|
GNSS L1/L5 Band Active Antenna - Standard Precision (ANN-MB5) is a high-performance multi-band active GNSS antenna developed by u-blox for GPS, Galileo, and BeiDou systems. Designed for standard precision applications, this antenna offers exceptional performance at an affordable price, making it an ideal choice for next-generation multi-frequency GNSS technology. The ANN-MB5 supports multiple bands, including L1, L5, E5a, B2a, and NavIC, enabling precise and reliable positioning even in complex and obstructed environments.
Engineered for ease of integration, the ANN-MB5 boasts a compact design, simple mounting options, and a cost-effective solution for large-scale deployments. This antenna perfectly suits u-blox’s multi-band GNSS receivers, such as the F10 standard precision platform, ensuring seamless compatibility. Minimizing the need for additional evaluation and design efforts accelerates development timelines and reduces time-to-market.
The ANN-MB5 features an advanced multi-band RHCP (Right-Hand Circularly Polarized) single-feed stacked-patch antenna element, providing robust signal reception across multiple GNSS frequencies. It incorporates a built-in low-noise amplifier (LNA) with SAW (Surface Acoustic Wave) pre-filtering to enhance signal quality and reduce interference. The antenna has a 3-meter cable and an SMA connector, offering flexible placement options for diverse application needs.
This antenna meets the demands of modern GNSS applications, offering high reliability, accurate positioning, and simplified deployment in a wide range of environments.
| Specification | |
|---|---|
| Frequency Bands (MHz): | 1164 ~ 1186 / 1559 ~ 1608 |
| Nominal Impedance (Ω): | 50 |
| Peak Gain (dBic): | 4 / 4.5 |
| Cable Length (m): | 3 |
| Connector Type: | SMA |

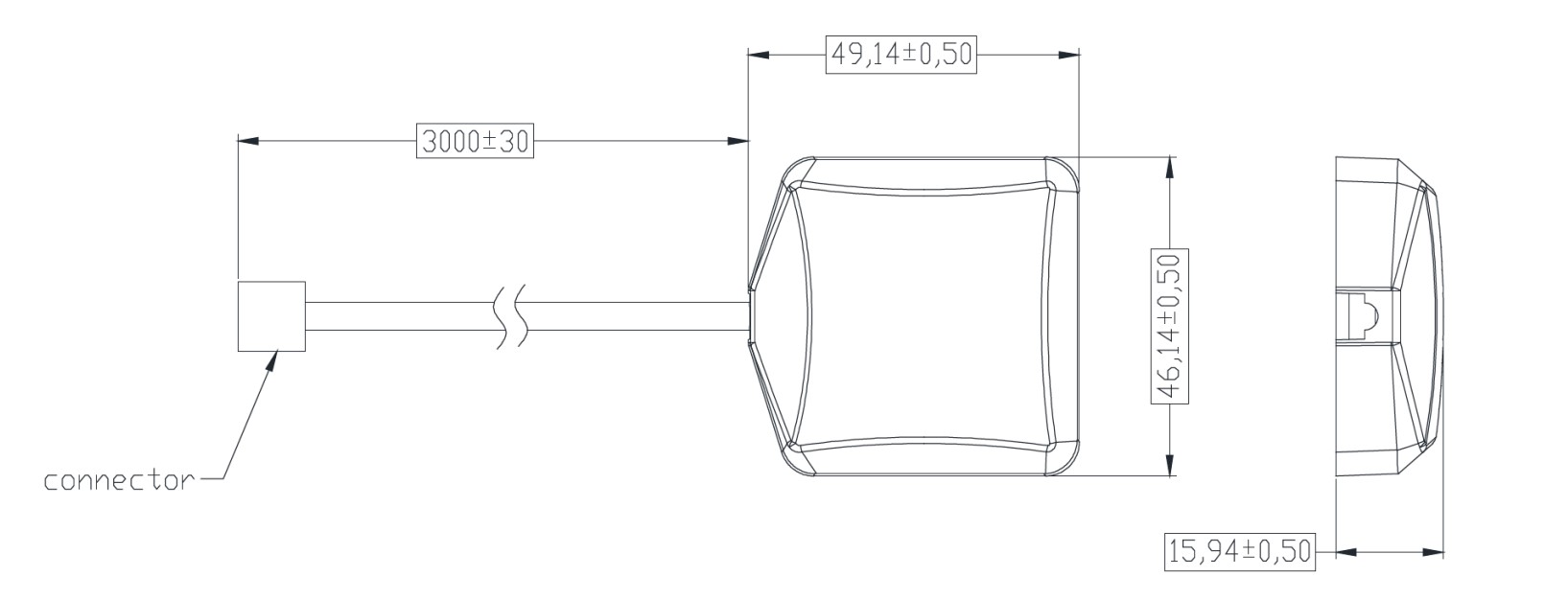

| Dimensions (mm): | 49.14 x 46.14 x 15.94 |
