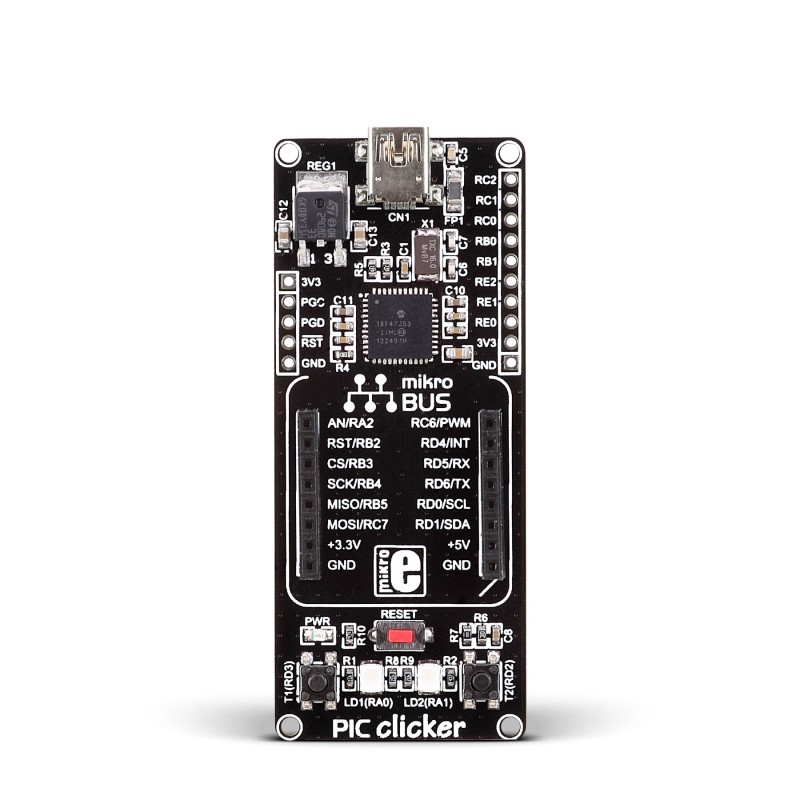

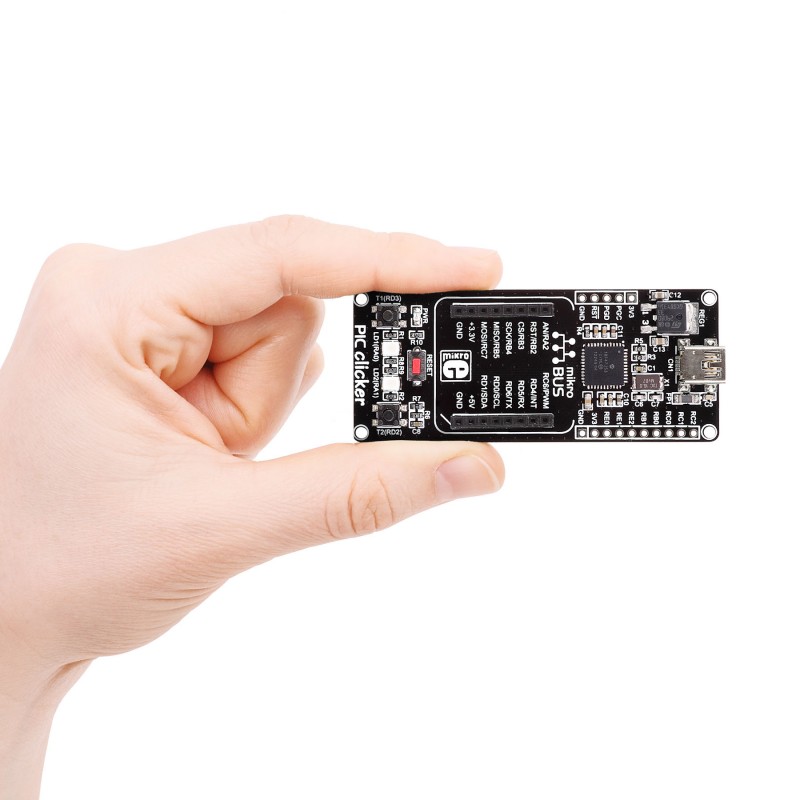

PIC clicker is an amazingly compact starter development kit which brings innovative mikroBUS™ host socket to your favorite microcontroller. Board features all you need to get started: PIC18F47J53 microcontroller, USB connector, two LEDs and push buttons, reset button, mikroProg connector and headers for interfacing with external electronics..

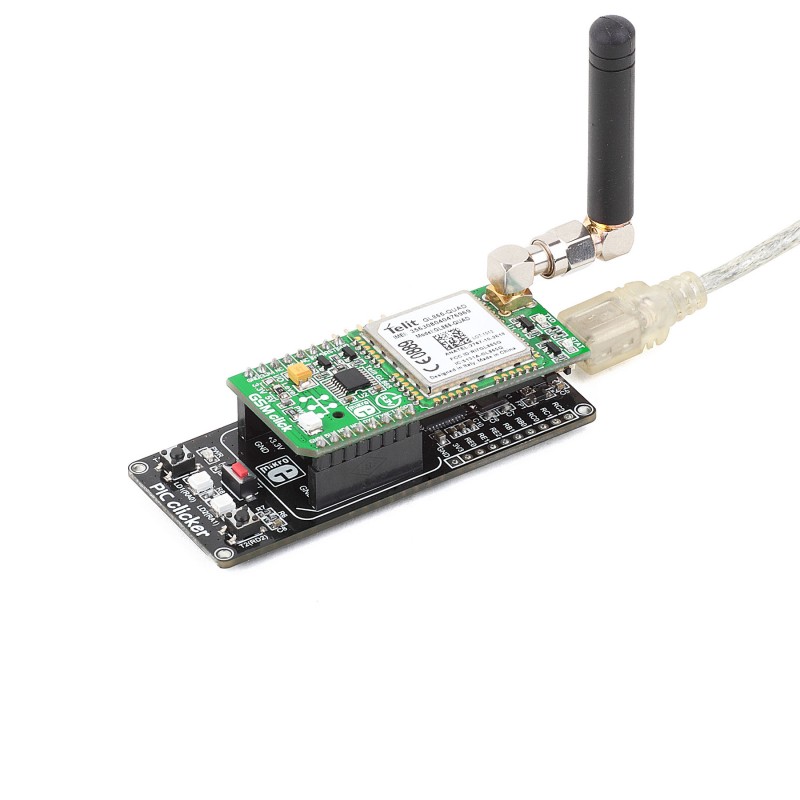

Hundreds of possibilities with click boards. With mikroBUS™ socket, you can take advantage of the huge potential of click™ boards, the constantly expanding range of over 300 add-on boards.
Programming. To make your prototyping experience as convenient as possible, PIC clicker is preprogrammed with a USB HID bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. On-board mikroProg for PIC, dsPIC and PIC32 connector enables programming through external programmer/debugger.
NOTE: If programming with mikroProg for PIC, dsPIC, PIC32, make sure to use mikroProg Suite for PIC 2.29 and above.
This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas.

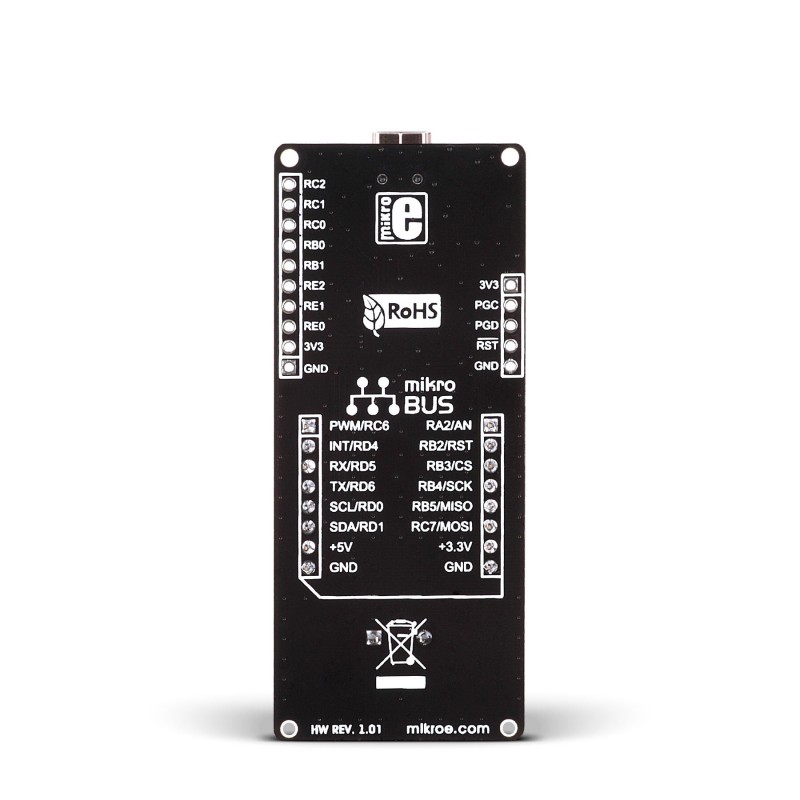

mikroBUS™ is specially designed pinout standard with SPI, I2C, Analog, UART, Interrupt, PWM, Reset and Power supply pins. See Standard Specification.
|Applications||This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas|
|MCU speed||12MIPS, 48MHz|
|MCU Memory||128KB of Flash, 3,800 bytes of RAM|
|On-board modules||1 x USB MINI-B connector, 2 x LEDs, 2 x push buttons, 1 x reset button|
|Programming||Preprogrammed with USB HID bootloader. Also features mikroProg for PIC, dsPIC and PIC32 connector|
|Input Voltage||5V (via USB)|
