Ready for AVR Board

Mikroe Ready for AVR Board front View larger
Mikroe Ready for AVR Board front

$29.00

MIKROE-977

300 g

Ready for AVR Board

Ready for AVR Board is the best solution for fast and simple development of microcontroller applications using 40-pin AVR MCUs. It comes with ATmega16 connected to 8MHz crystal oscillator. It contains four IDC10 headers for all available microcontroller ports, USB-UART module, prototyping area and a power supply circuit. Board is specially designed to fit into special white plastic casing which is sold separately.

Board comes preprogrammed with fast UART bootloader which eliminates the need for external programmers. Board also supports fast USB 2.0 AVRProg™ programmer.

Ready for AVR is fully supported by mikroC, mikroBasic and mikroPascal compilers for AVR. Compilers come with dozens of examples that demonstrate every feature of the board.

On-board power supply regulator is great. It creates stable 5V for the microcontroller. It features standard power connector, and screw terminals for even easier connectivity, but you can also power the board over USB.

Gallery

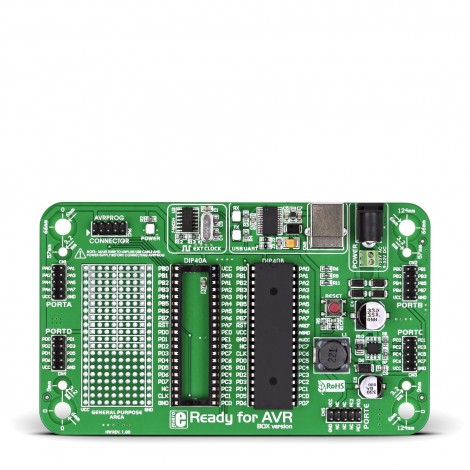

  • Mikroe Ready for AVR Board front

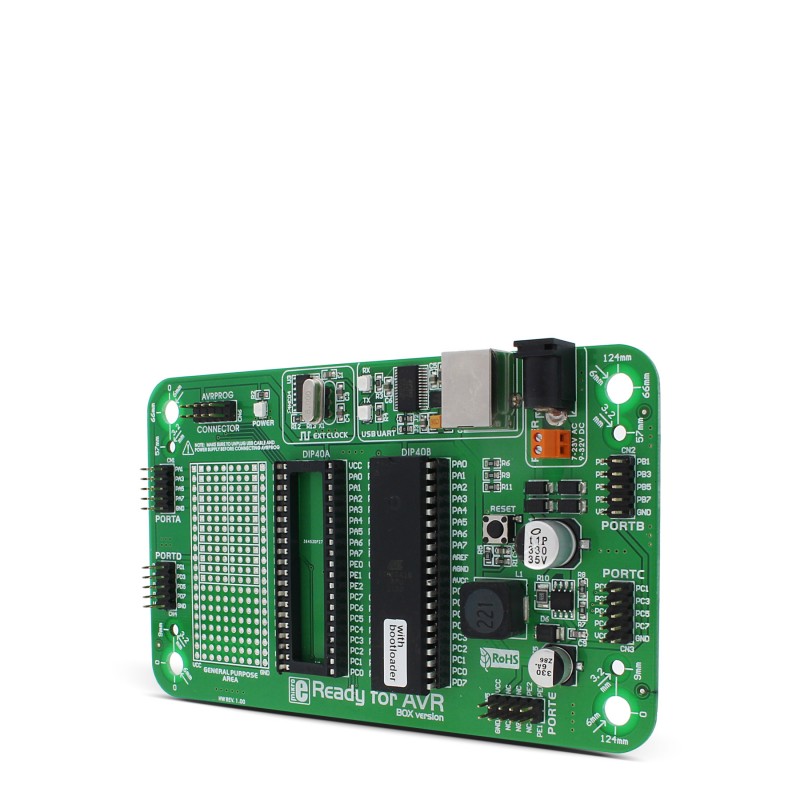

  • Mikroe Ready for AVR Board side

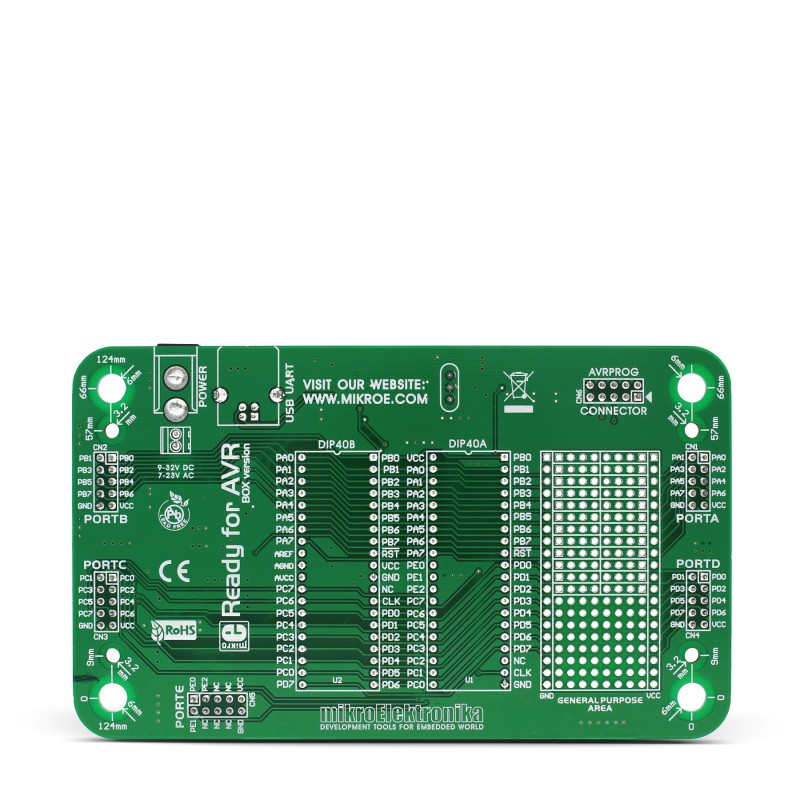

  • Mikroe Ready for AVR Board back

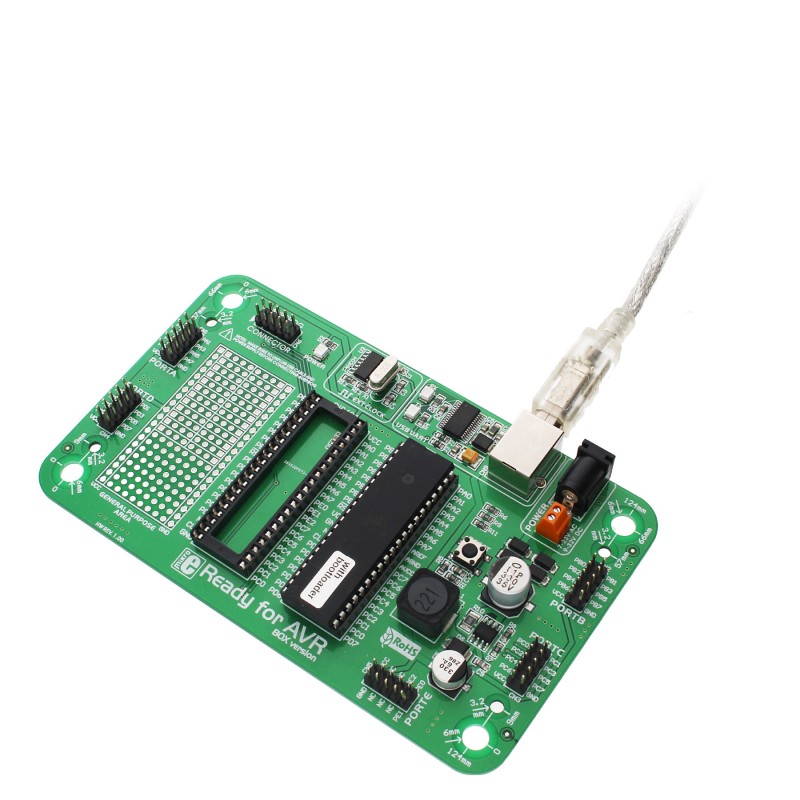

  • Mikroe Ready for AVR Board in position
Mikroe Ready for AVR Board front
Mikroe Ready for AVR Board side
Mikroe Ready for AVR Board back
Mikroe Ready for AVR Board in position

Why choose Ready for AVR?

IDC10 headers on-board

Easily add extra boards

  • Development system features IDC10 connectors for all available ports, that are 100% compatible with over 70 additional boards from mikroElektronika.
New casing for your board

Make it a final product

  • With new strong hi-quality white plastic casing (sold separately), you can turn your cool AVR project into a final product! Board is designed to fit perfectly inside.
AVR microcontroller on board

Comes with Atmega16

  • Ready for AVR comes with ATmega16 microcontroller, which is a great choice for projects of both beginners and professionals.
Easy Programming

Bootloader inside

  • Having fast UART bootloader, this board is ready to rock right out of the box. No need for external programmers.
Applications Board is the best solution for fast and simple development of microcontroller applications using 40-pin AVR MCUs
Architecture AVR (8-bit)
MCU ATmega16
MCU speed 8MIPS, 8MHz
MCU Memory 16KB of Flash
On-board modules FTDI chip, DIP40A, DIP40B socket, Power regulator, External oscillator
Programming Preprogrammed with UART bootloader. Also features mikroProg for AVR connector
Key Benefits Can be fitted in a professional-looking casing, which turns the your device into a ready-to-sell product
Expandability 4 x IDC10 male headers

What’s on board

Get to know your board even before you buy it.

With the casing it’s a final product!

Put your Ready for AVR in hi-quality white plastic casing, place your product logo sticker on top, and you’ve got yourself a final product! Ready for AVR is specially designed to fit perfectly inside. Casing comes with holes for Power supply and USB cables, but if you need more than that, simply cut out a piece on the side panel and connect it with the rest of your electronics easily.

Casings are sold separately.

What's in the package?

Ready for AVR is packed in the protective box along with the relevant documentation and product DVD. This box is very resistant to all kinds of damages and shocks. The package contains:


Damage resistant protective box


Ready for AVR board and ATmega16 with bootloader


USB cable


DVD with documentation and code examples
