Clicker 4 for STM32F4
PID: MIKROE-5850
Weight: 86 g
Secure online payments provided by 2Checkout.com, Inc.
All credit card and personal details are kept secure, and our customer list is not
disclosed to any third party.
Status:
$83.00
$83.00
MIKROE-5850
86 g

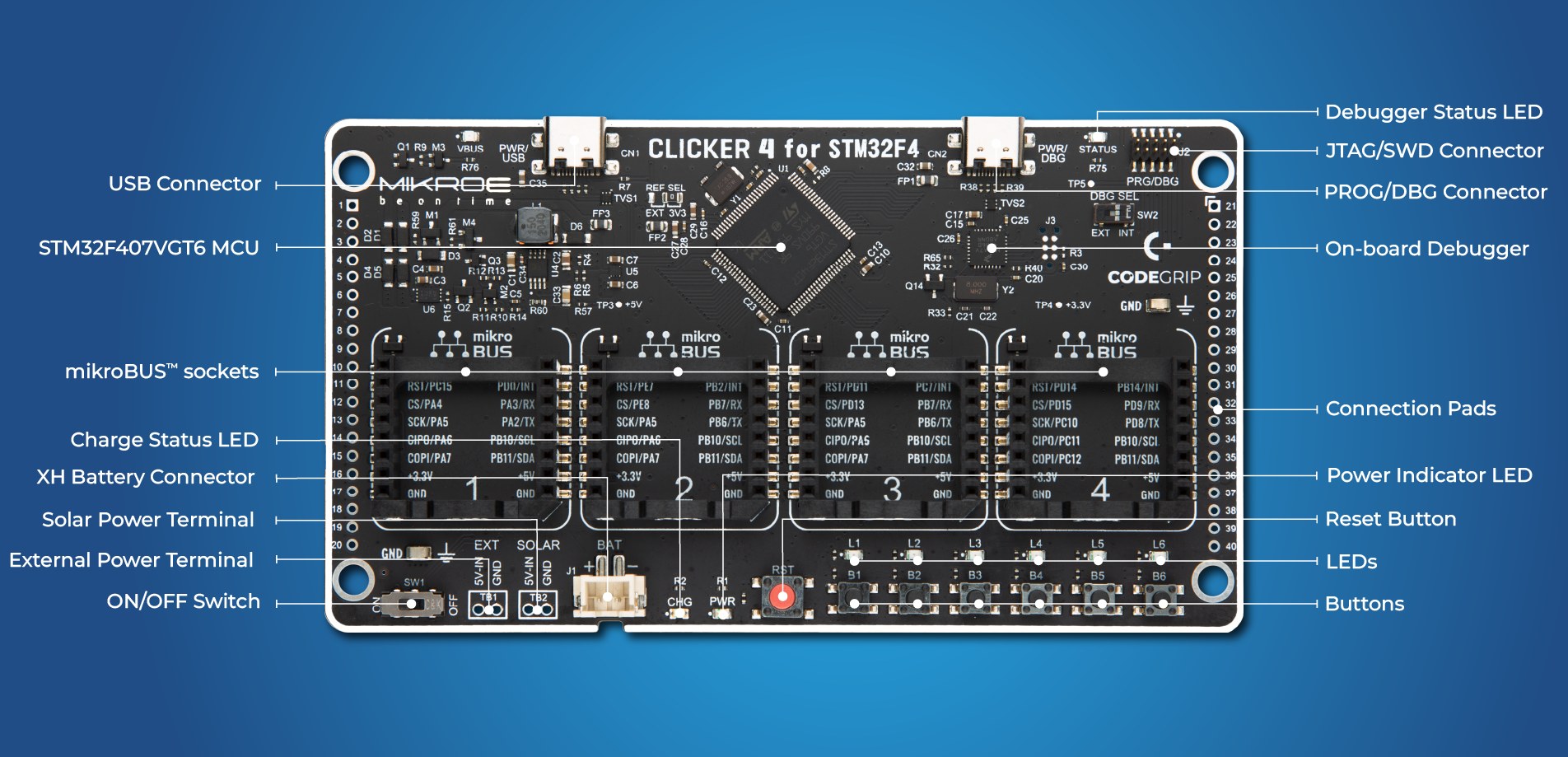

Clicker 4 for STM32F4 is a compact development board designed as a complete solution, you can use it to quickly build your own gadgets with unique functionalities.
31Â 505Â 245Â 751
Featuring a MCU Card socket, four mikroBUSΓäó sockets, power management, and more, this board represents a perfect solution for the rapid development of the most diverse applications.
mikroBUSΓäó is specially designed pinout standard with SPI, I2C, Analog, UART, Interrupt, PWM, Reset and Power supply pins. See Standard Specification.
Clicker 4 is equipped with five different power supply inputs, offering all the flexibility that development needs, and a reliable and safe battery charging circuit, which allows a single-cell Li-Po/Li-Ion battery to be charged.
To make your prototyping experience as convenient as possible, Clicker 4 is equipped with an on-board Debug Unit, the MIKROE's advanced CODEGRIP programmed/debugger, compliant with an on-board emulator standard called CMSIS-DAP. It allows you to fully use, test, and debug the target device right out of the box.
| Silicon Vendor | STM |
| Category | Clicker 4 |
