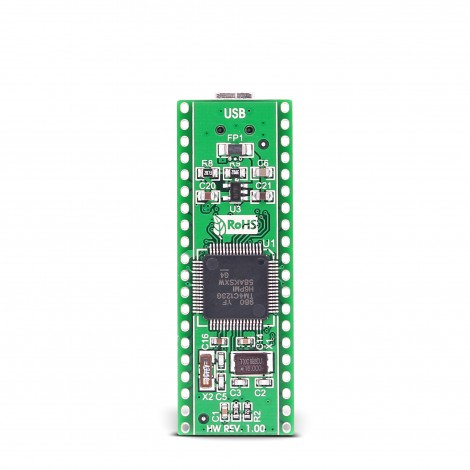

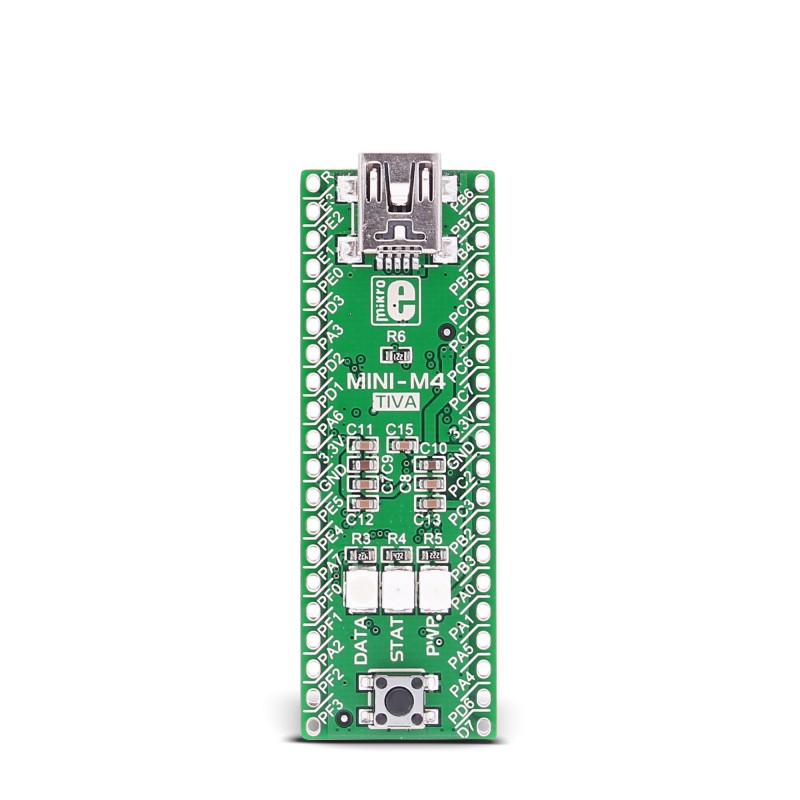

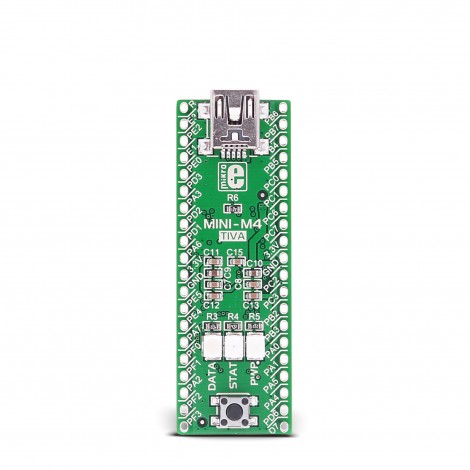

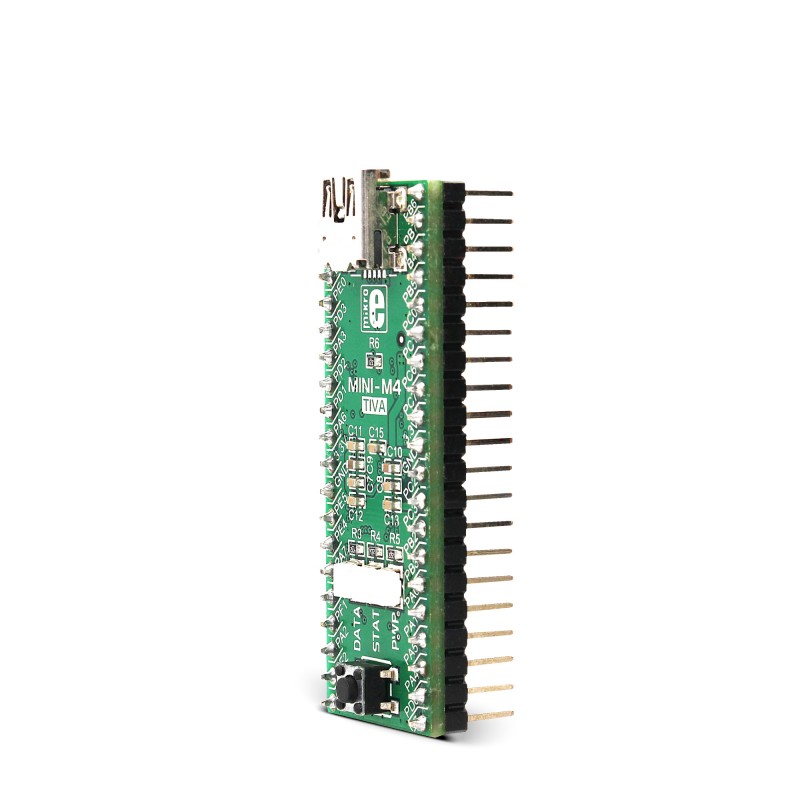

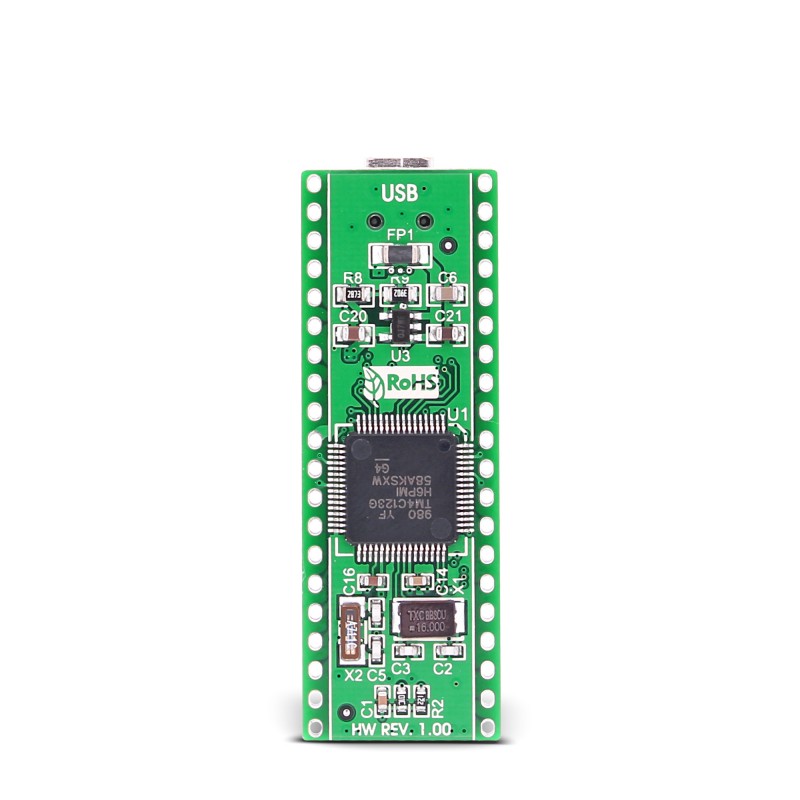

MINI-M4 for Tiva™ C Series is a small ARM® Cortex™-M4 development board containing Tiva™ C Series TM4C123GH6PM microcontroller. It perfectly fits into a standard DIP40 socket. Board is equipped with 16MHz SMD crystal oscillator, and 32.768KHz crystal which can be used for internal hibernation module. It has reset button and three signal LEDs.
Board comes preprogrammed with fast USB HID bootloader, so no external programmers are needed for development. It operates on 3.3V power supply. On-board voltage regulator allows the board to be powered directly from USB cable.
Board can be used as a DIP40 substitute for PIC16 and PIC18 microcontrollers working on 3.3V, thus adding exponentially more power to your target device.
Board operates on 3.3V power supply only. Dedicated voltage regulator enables the board to be powered directly from on-board USB connector.
|MCU Memory||256KB of Flash, 32kB of SRAM|
|On-board modules||3 x LEDs, 1 x Reset Button, USB 2.0 OTG connector|
|Programming||Comes preprogrammed with USB HID bootloader|
|Input Voltage||5V (via USB) or 3.3V (via external source)|
