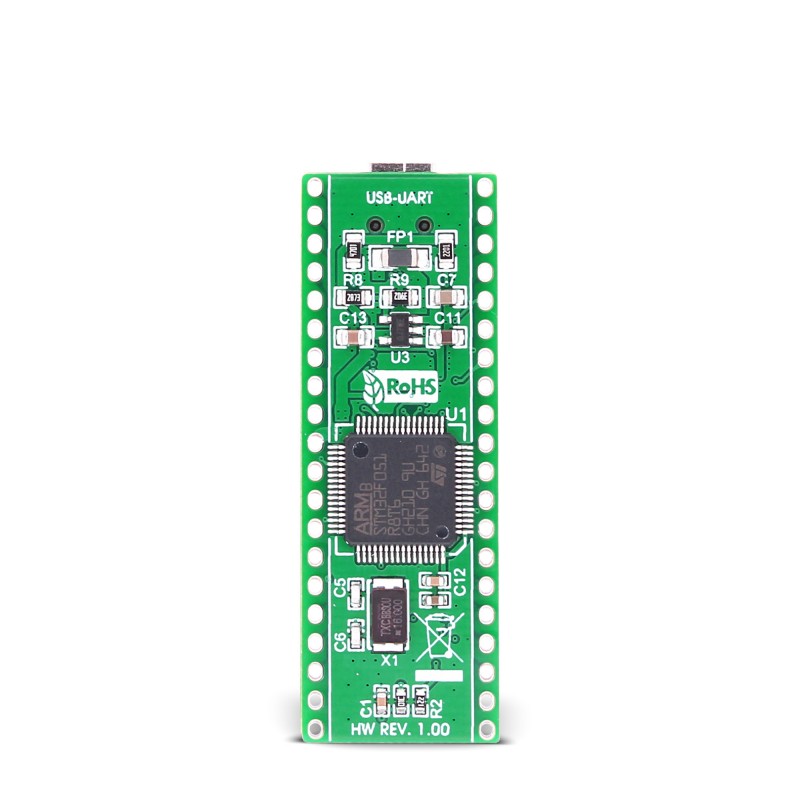

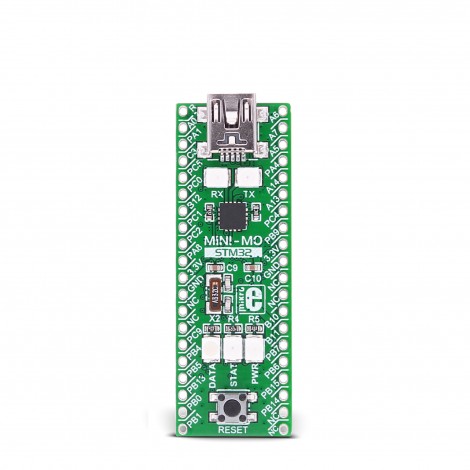

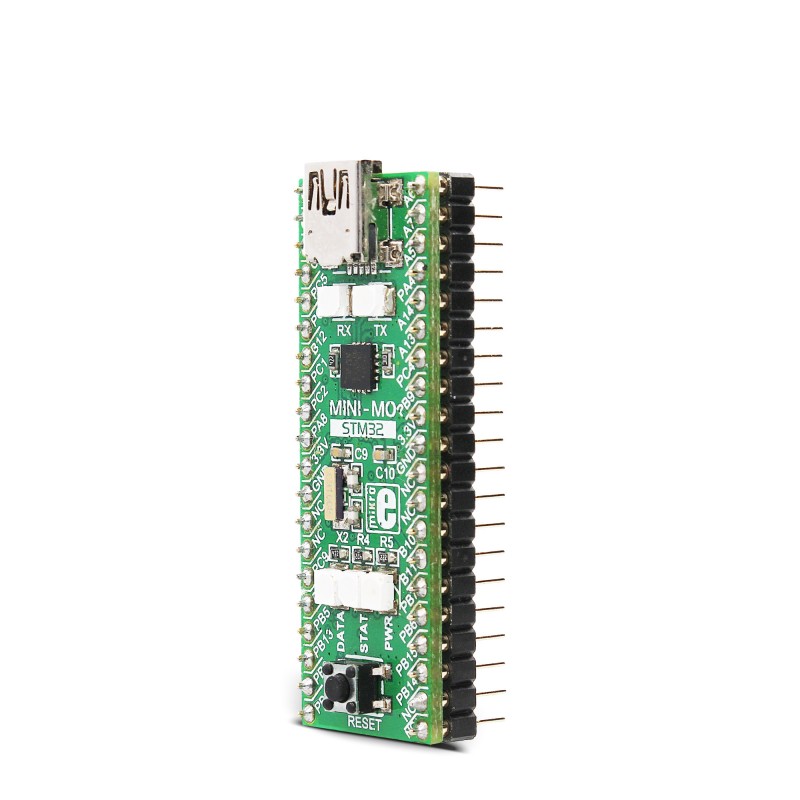

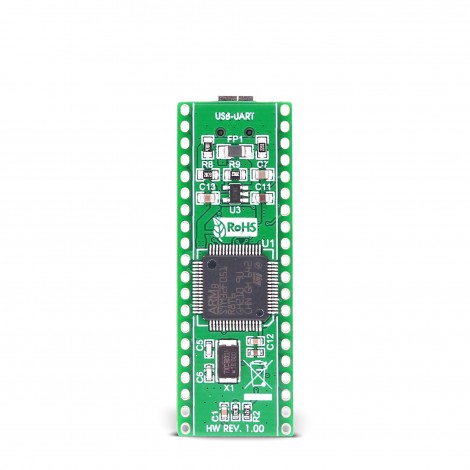

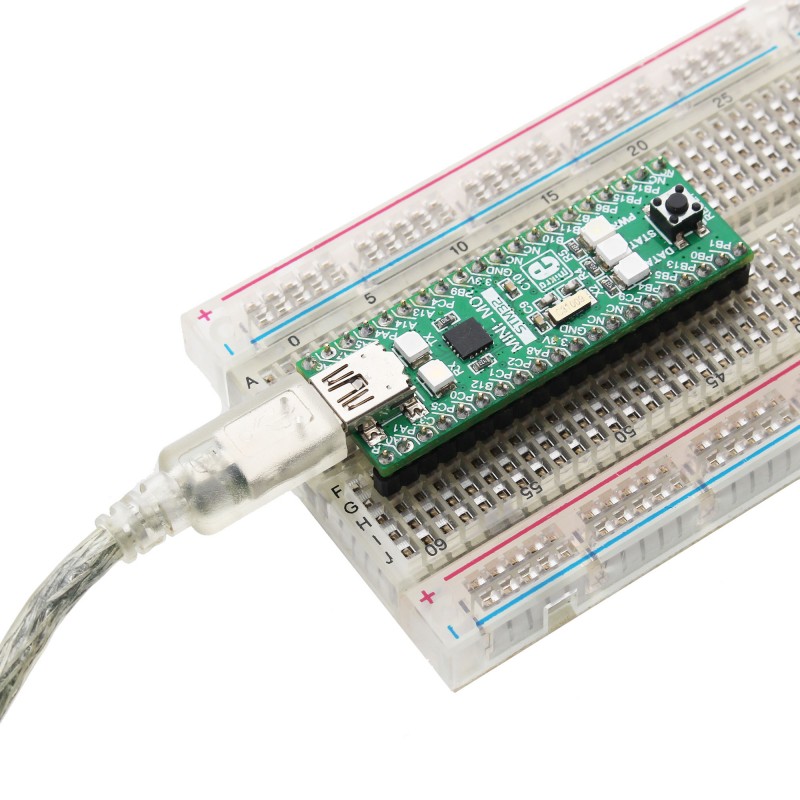

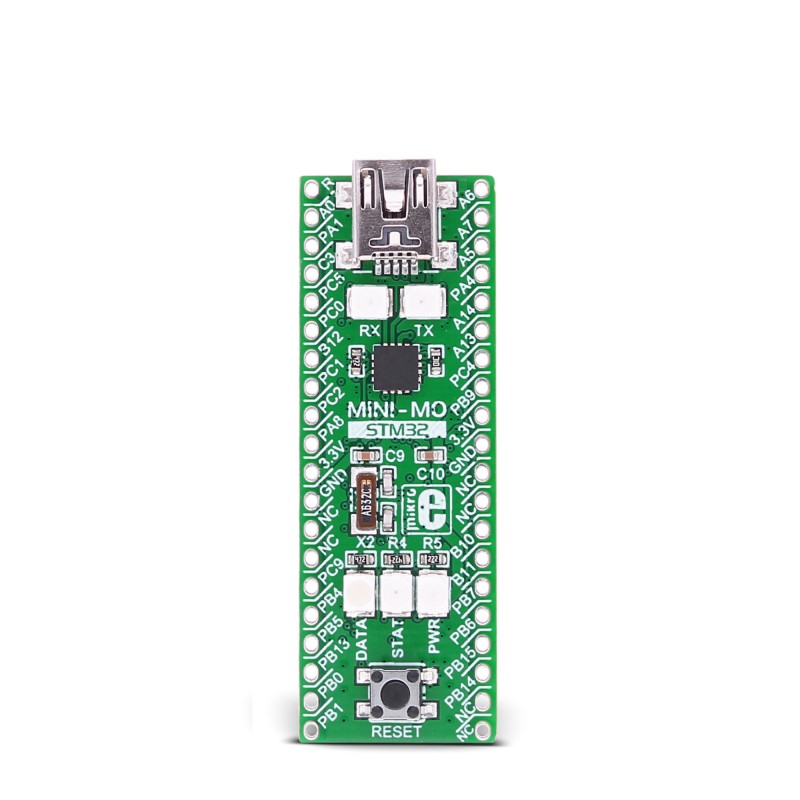

MINI-M0 for STM32 is a small ARM® Cortex™-M0 development board containing STM32F051R8 microcontroller. It perfectly fits into standard DIP40 socket. Board is equipped with 16MHz SMD crystal oscillator, and 32.768KHz crystal which can be used for internal RTCC module. It has reset button and three signal LEDs.
Board comes preprogrammed with fast USB-UART bootloader, so no external programmers are needed for development. It operates on 3.3V power supply. On-board voltage regulator allows the board to be powered directly from USB cable.
Board can be used as a substitute for 8-bit microcontrollers in DIP40 packaging working on 3.3V, thus adding exponentially more power to your target device.
Board operates on 3.3V power supply only. Dedicated voltage regulator enables the board to be powered directly from on-board USB connector.
|MCU Memory||64KB of Flash, 8KB of RAM|
|On-board modules||3 x LEDs, 2 x UART LEDs, 1 x Reset Button, USB-UART connector|
|Programming||Comes preprogrammed with UART bootloader|
|Integration||Pin compatible with PIC16F887 and PIC18(L)F45K20 in DIP40 packaging|
|Input Voltage||5V (via USB) or 3.3V (via external source)|
