Status:Pre-orderAvailable from 06/10/2018

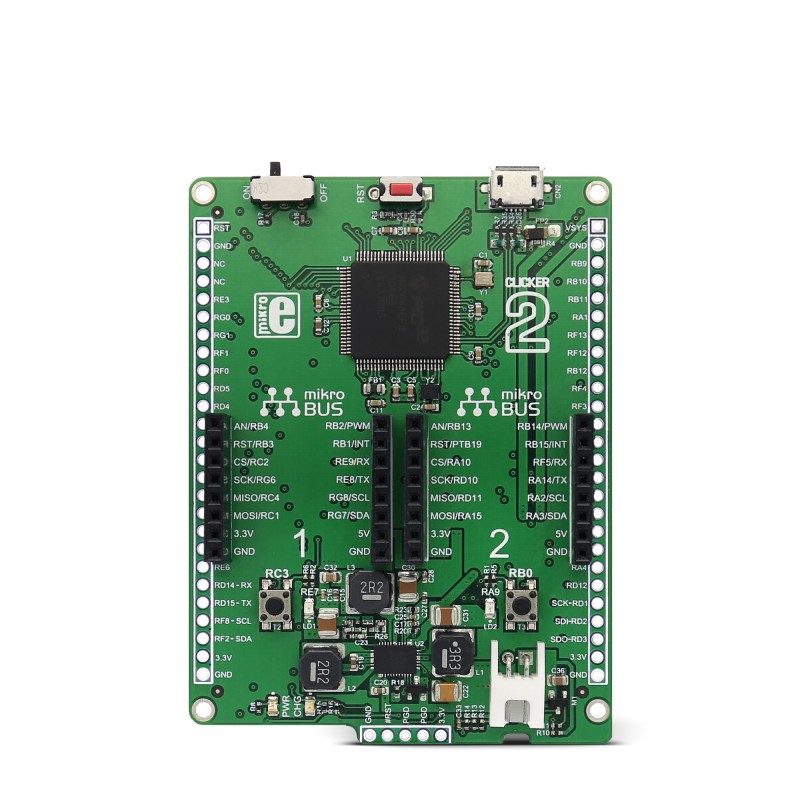

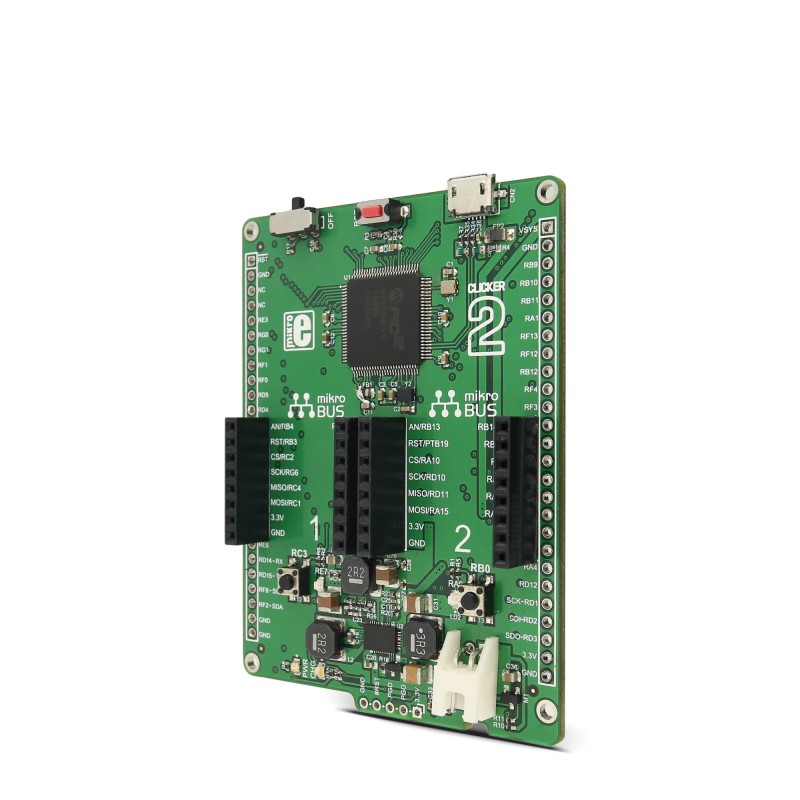

Clicker 2 for PIC32MZ is a compact PIC32 development kit with two mikroBUS™ sockets for click board connectivity. It carries the PIC32MZ 32-bit microcontroller (1 MB Live-Update Flash and 512 KB SRAM) with FPU from Microchip. With a built-in USB-HID bootloader the Clicker 2 for PIC32MZ it easy to program.

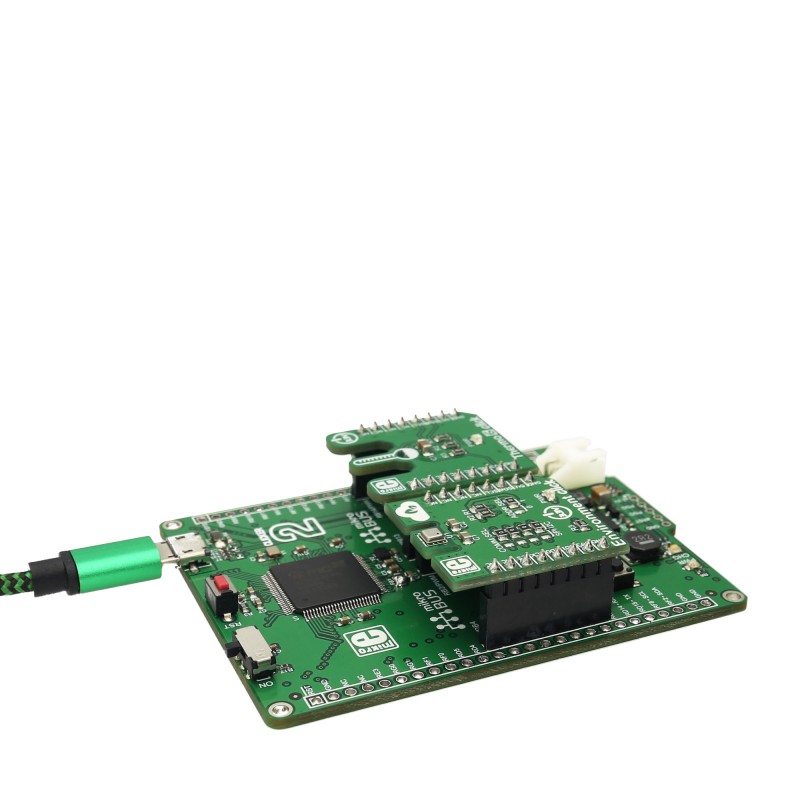

Thousands of possibilities with click boards. With two mikroBUS™ sockets on clicker 2, you can take advantage of the huge potential of click™ boards, the constantly expanding range of over 300 add-on boards. Blend different functionalities together and come up with new and original inventions. That’s just two clicks and your project is half-way done. Go ahead and play with a few ideas right away.
Programming. To make your prototyping experience as convenient as possible, Clicker 2 for PIC32MZ is preprogrammed with a USB-HID bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. The on-board mikroProg connector enables programming through external programmer/debugger. You can supply power to the board with a micro USB cable provided in the package. Onboard voltage regulators provide the appropriate voltage levels to each component on the board.
Power Management. Clicker 2 for PIC32MZ features LTC®3586, a highly integrated power management and battery charger IC that includes a current limited switching PowerPath manager. LTC®3586 also enables battery charging over a USB connection. You can supply power to the board with a micro USB cable provided in the package. On-board voltage regulators provide the appropriate voltage levels to each component on the board.
Use one of these, or try some of the possible combinations. All click™ boards are compatible.
This 32-bit (1 MB Live-Update Flash and 512 KB SRAM) microcontroller with FPU is rich with on-chip peripherals. The PIC32MZ EF family features high core performance up to 200 MHz, an integrated Floating-Point Unit (FPU), a wide selection of peripherals and excellent connectivity options including Controller Area Network (CAN).
Focus on your main idea because clicker 2 will take care of the details for you: your prototype already has a power management system in place. The onboard LTC®3586-1 IC will provide 3.3V or 5V to the clicks. It turns the USB port into a battery charger. For convenience, clicker 2 for PIC32MZ features a reset button and an ON/OFF switch (you can also connect an external ON/OFF switch).
- PIC32MZ has 512 KB SRAM
- Speed: 200MHz
- 52 programmable GPIOs
- 2 mikroBUS host sockets
- Micro USB connector

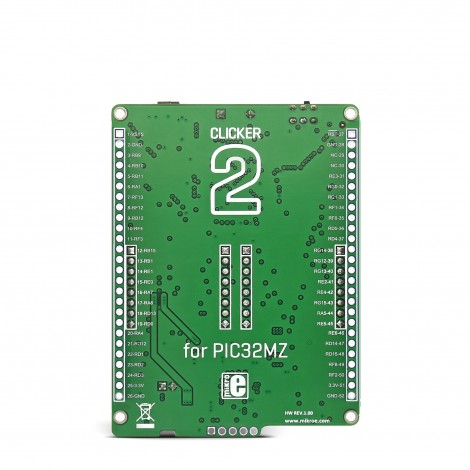

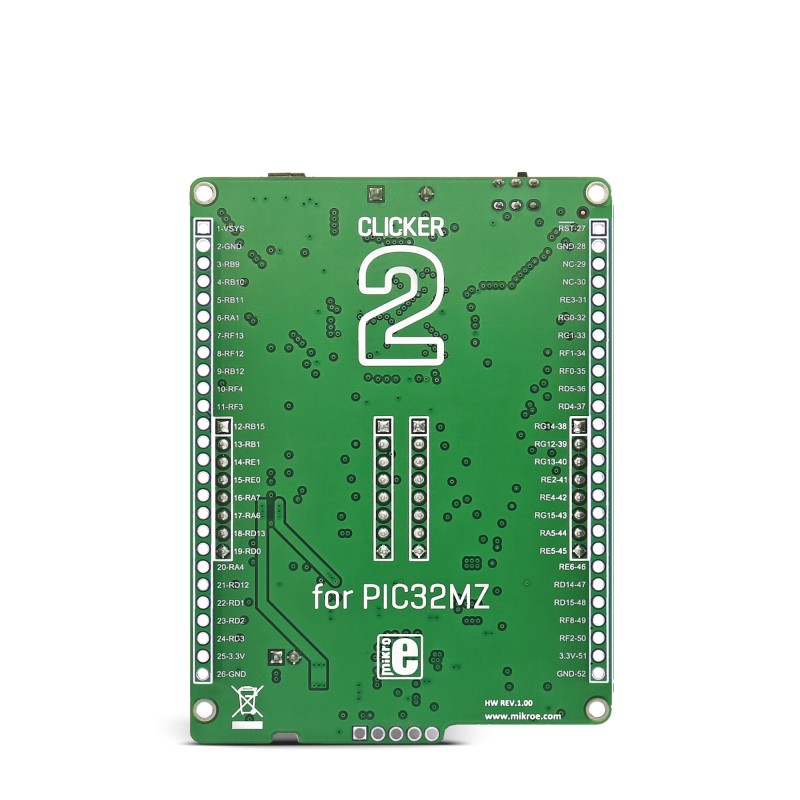

No idea is too big for clicker 2. Let your train of thought lead you anywhere. Consider all options, explore all directions. More click boards? Additional electronics? Done and done. clicker 2 has the same pocket-size form factor and the same pair of 1x26 connection pads as mikromedia boards. This makes it compatible with mikromedia shields letting you expand your device any way you want.
To make your prototyping experience as convenient as possible, clicker 2 for PIC32MZ is preprogrammed with a USB HID bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware.
Efficiently erradicate any bugs and iron out your code until it’s wrinkle free and your clicker 2 device works perfectly—use mikroProg™ for PIC32MZ. It’s a fast hardware debugger and programmer that exploits the MCU’s integrated encryption module, enabling secure firmware updating.
|Applications||This compact development board brings the flexibility of click boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas.|
|MCU Memory||Up to 2 MB Live-Update Flash and 512 KB SRAM|
|On-board modules||1 x USB MICRO-B connector, 2 x LEDs, 2 x push buttons, 1 x reset button|
