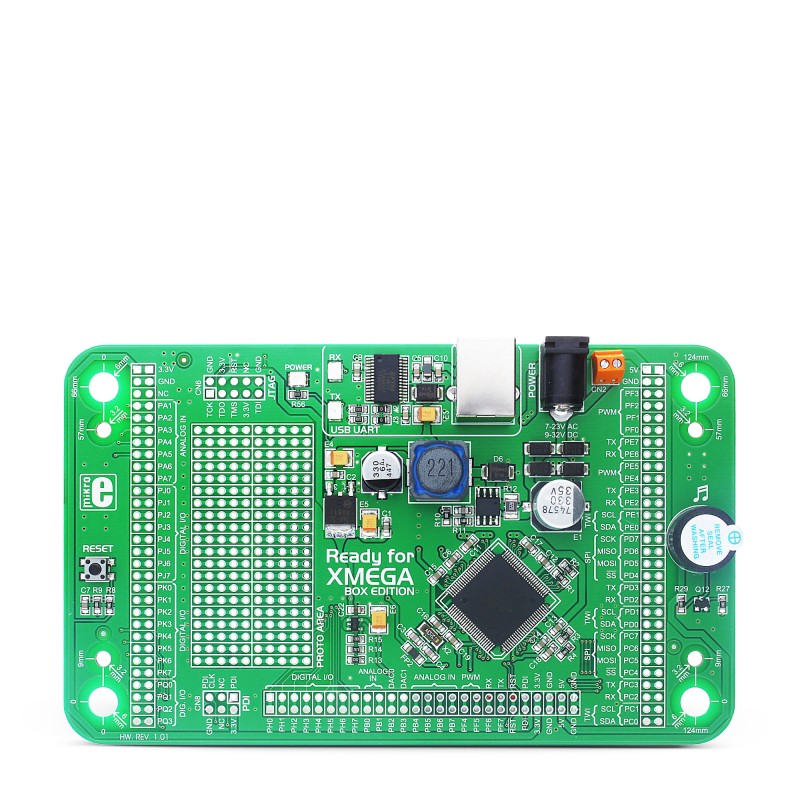

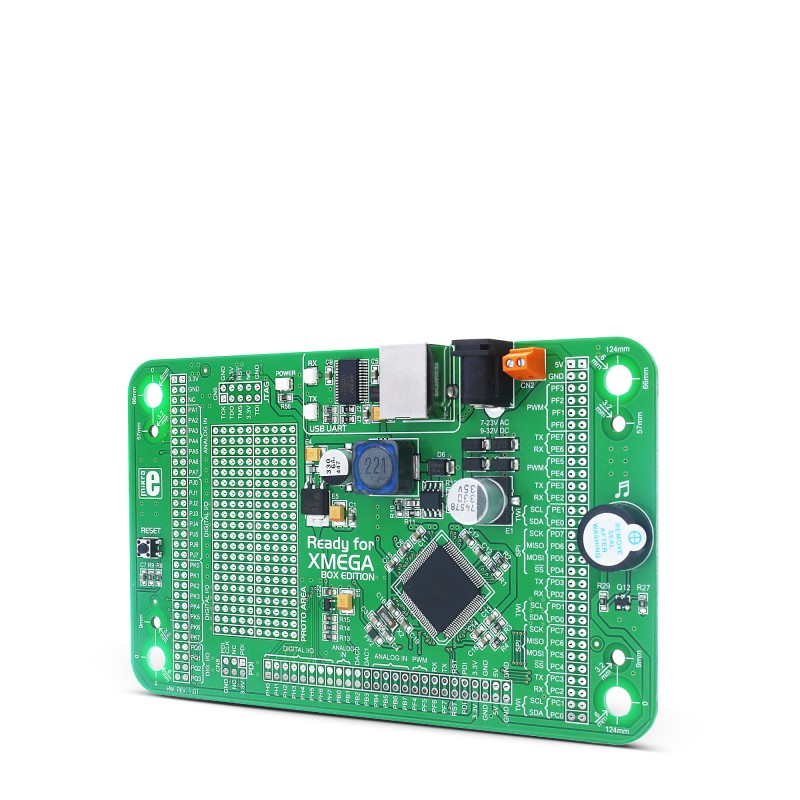

Ready for XMEGA Board is the best solution for fast and simple development of various microcontroller applications. It comes with ATXmega128A1. It contains double-row smart headers for all available microcontroller ports, USB-UART module, prototyping area and a power supply circuit. Board is specially designed to fit into special white plastic casing which is sold separately.
Board comes preprogrammed with fast UART bootloader which eliminates the need for external programmers. Board also supports PDI programming and has JTAG connector for debugging.
Ready for XMEGA is fully supported by mikroC, mikroBasic and mikroPascal compilers for AVR. Compilers come with dozens of examples that demonstrate every feature of the board.
On-board power supply regulator is great. It creates stable 3.3V for the microcontroller, and additional 5V power line which is available on one header pin. It features standard power connector, and screw terminals for even easier connectivity, but you can also power the board over USB.
|Applications||Board is the best solution for fast and simple development of microcontroller applications using AVR XMEGA MCU|
|MCU speed||32MIPS, 32MHz|
|MCU Memory||128KB of Flash|
|On-board modules||Power regulator, External oscillator, FTDI chip, Piezo Buzzer|
|Programming||Preprogrammed with UART bootloader. Also features JTAG and PDI connector for external programmer/debugger|
|Key Benefits||Can be fitted in a professional-looking casing, which turns the your device into a ready-to-sell product|
|Expandability||Two connection pads for each microcontroller pin|
Get to know your board even before you buy it.

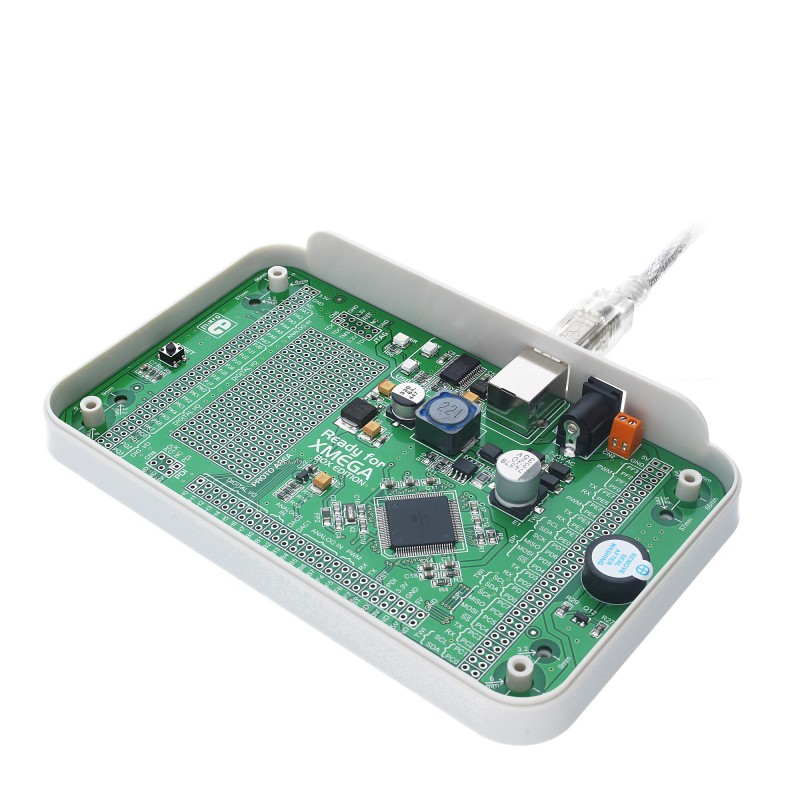

Put your Ready for XMEGA in hi-quality white plastic casing, place your product logo sticker on top, and you’ve got yourself a final product! Ready for XMEGA is specially designed to fit perfectly inside. Casing comes with holes for Power supply and USB cables, but if you need more than that, simply cut out a piece on the side panel and connect it with the rest of your electronics easily.
Casings are sold separately.
Ready for XMEGA is packed in the protective box along with the relevant documentation and product DVD. This box is very resistant to all kinds of damages and shocks. The package contains:
Damage resistant protective box
Ready for XMEGA board with double row male pin headers
Ready for XMEGA board documentation
DVD with documentation and code examples
