Kinetis Clicker
MIKROE-2330
22 g
Kinetis Clicker

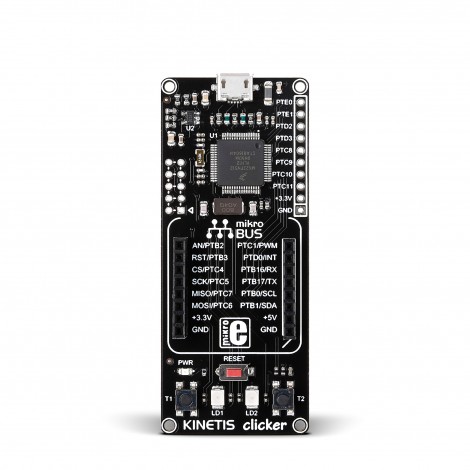

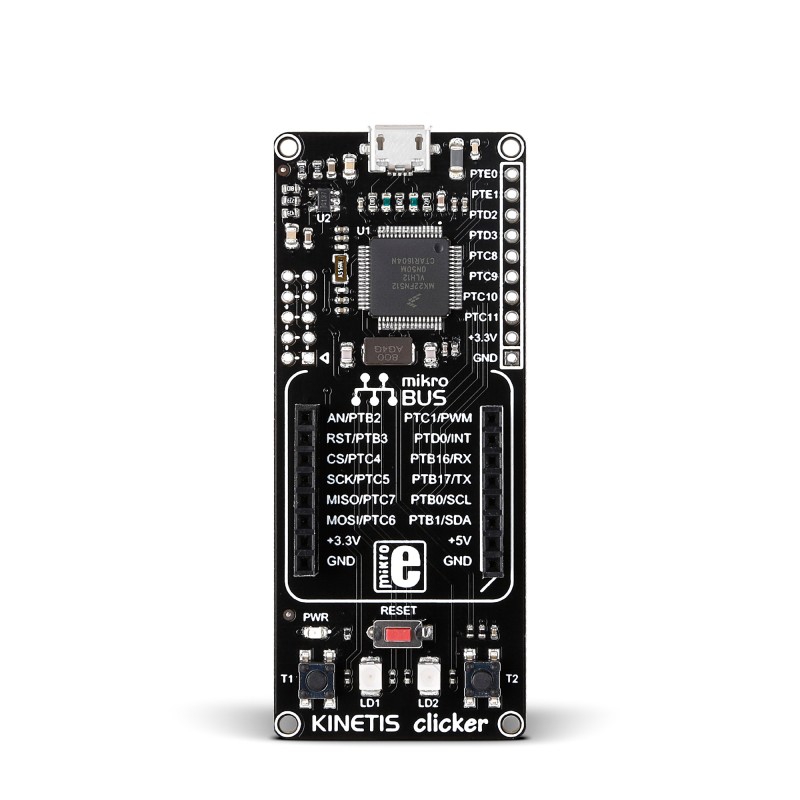

Kinetis clicker is an amazingly compact starter development kit which brings click board connectivity an NXP's Kinetis ARM Cortex™-M4 microcontroller. The board features all you need to get started: a low power ARM Cortex™-M4 32-bit MK22FN512VLH12 microcontroller, a USB connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.
Hundreds of possibilities with click boards. With mikroBUS™ socket, you can take advantage of the huge potential of click™ boards, the constantly expanding range of over 300 add-on boards.
Programming. To make your prototyping experience as convenient as possible, STM32 M4 clicker is preprogrammed with a USB HID Bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. On-board mikroProg for Kinetis connector enables programming through external programmer/debugger.
Technical Specifications
Applications
This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas.
Key features
- MK22FN512VLH12 MCU, delivering 120 MHz of processing power, 512KB of Flash, 128 KB of RAM. Micro USB connector.
- Two LEDs, two push buttons, and a reset button.
- Micro USB connector.
- mikroProg connector and headers for interfacing with external electronics.
mikroBUS™ is specially designed pinout standard with SPI, I2C, Analog, UART, Interrupt, PWM, Reset and Power supply pins. See Standard Specification.
Key Benefits
- Single mikroBUS™ socket for adding Click additional boards.
- Small, affordable, yet powerful starter development kit.
- Mounting holes simplify integration.
- Compact design with clear and depictive silk screen markings.
| Applications | This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas |
| Architecture | ARM (32-bit) |
| MCU | MK22FN512VLH12 |
| MCU speed | 150 MIPS, 120 MHZ, 1.25 MIPS/MHz |
| MCU Memory | 512 KB of Flash, 128 KB of RAM |
| On-board modules | 1 x USB MINI-B connector, 2 x LEDs, 2 x push buttons, 1 x reset button |
| Programming | Preprogrammed with USB HID bootloader. Also features mikroProg for Kinetis connector. |
| Input Voltage | 5V (via USB) |
What’s in the package?
