GNSS L1/L5 Active External Antenna

Name: GNSS L1/L5 Active External Antenna
Brand: MIKROE
SKU: MIKROE-5283
Price: 78.00 USD
Availability: InStock

PID: MIKROE-5283

Weight: 130 g

Status:

GNSS L1/L5 Active External Antenna (YB0017AA) is an active patch antenna from Quectel optimized for GNSS L1/L5, BD B1/B2, GLONASS L1 that provides superior performance when coupled with a RTK Rover Click board™. The antenna is designed to work with various ground plane sizes or in free space, and is connected to the device by a cable and SMA male connector. This is the right product if you want a perfect external active antenna for navigation or tracking applications.

More details

OFF

GO LOCAL

Company	Stock	Price

MIKROE products are not subject to U.S. tariffs. Under the U.S. HTSUS classification specified in Annex III, 9903.01.32, subdivision (v)(iii) of U.S. Note 2 and Executive Order 14257, they are exempt from ad valorem duty rates.

How does it work?

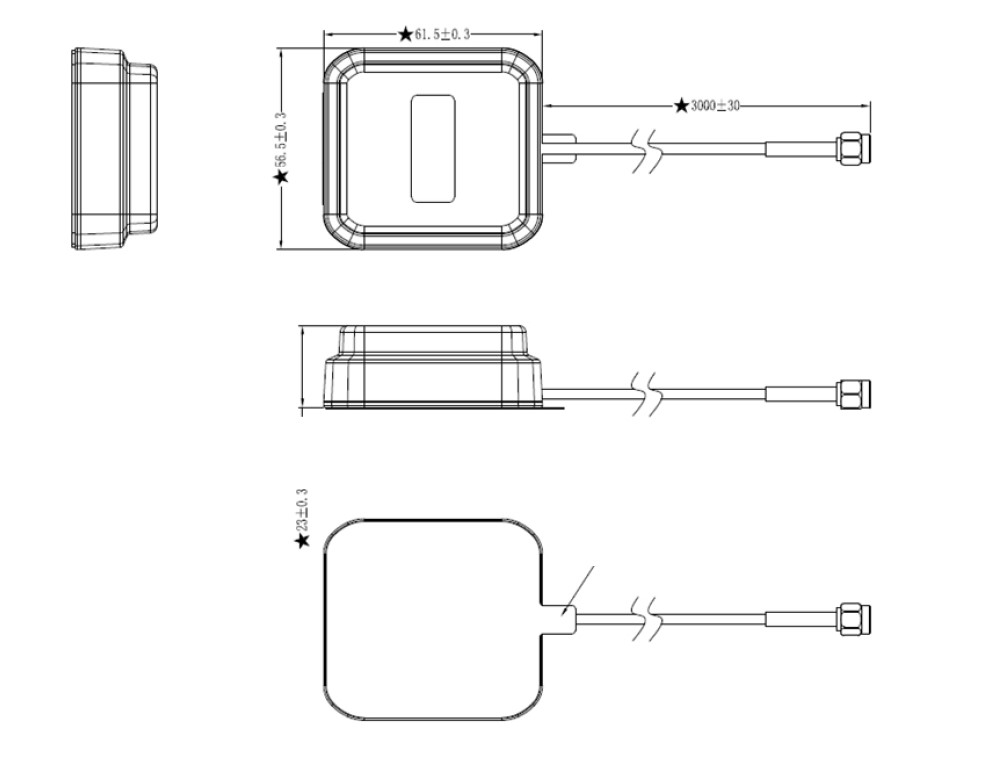

GNSS L1/L5 Active External Antenna (YB0017AA) is an active patch antenna from Quectel that supports GNSS L1/L5 BD B1/B2 GLONASS L1, offering excellent performance with its high gain and efficiency for fleet management, navigation, RTK and many other tracking applications. The magnetic-mounting antenna, with dimensions of 61.5×56.5×23mm, is designed to work with various ground plane sizes or in free space, and is connected to the device by a 3m length cable with SMA male connector. The YB0017AA is highly compatible with GNSS L1/L5 Quectel modules like the LG69TAMMD, a multi-constellation GNSS module implemented on the RTK Rover Click board™ that can be found in our offer.
