GNSS L1/L5 Band Active Antenna - High Precision (ANN-MB1) is designed for high-precision GNSS applications requiring accurate location capabilities. This multi-band antenna supports GPS, GLONASS, Galileo, and BeiDou systems, covering L1, L5, E5a, B2a, and NavIC frequency bands. It features a high-performance RHCP dual-resonance patch element, an integrated high-gain LNA with SAW pre-filtering, and a 5-meter cable with an SMA connector for flexible installation. Its compact design and exceptional price-to-performance ratio, the ANN-MB1 ensure fast, reliable, and efficient GNSS operation. It is ideal for surveying, precision agriculture, and autonomous navigation applications, where accuracy and reliability are paramount.
This product is no longer in stock
Availability date:
OFF
Company | Stock | Price |
---|---|---|
GNSS L1/L5 Band Active Antenna - High Precision (ANN-MB1) is a multi-band active antenna designed to support GPS, GLONASS, Galileo, and BeiDou systems, offering a comprehensive solution for high-precision GNSS applications. Optimized for applications demanding exceptional accuracy, this multi-band antenna provides coverage for L1, L5, E5a, B2a, and NavIC frequency bands, ensuring reliable performance across diverse GNSS systems. The ANN-MB1 stands out with its compact design and excellent price-to-performance ratio, making it an ideal choice for users seeking a fast and efficient path to market.
This antenna is an excellent companion for the u-blox F9 platform, including models such as NEO-F9P-15B, ZED-F9P15B, and ZED-F9T-10B. By supporting both L1 and L5 bands, the ANN-MB1 streamlines integration efforts, helping users minimize evaluation and design complexities. Its robust design enables superior multi-band operation, which is essential for applications requiring high positional accuracy, such as surveying, precision agriculture, and autonomous navigation systems.
At the heart of the ANN-MB1 is a high-performance Right-Hand Circularly Polarized (RHCP) dual-resonance, dual-feed patch antenna element. This sophisticated design is complemented by a built-in high-gain Low-Noise Amplifier (LNA) with Surface Acoustic Wave (SAW) pre-filtering, ensuring optimal signal quality by reducing noise and interference. The integrated LNA significantly enhances the antenna’s ability to capture weak GNSS signals, providing reliable performance even in challenging environments.
The ANN-MB1 antenna is equipped with a 5-meter cable terminated with an SMA connector, offering flexibility in placement and ease of installation. Its well-engineered design ensures consistent performance across various applications, making it an invaluable tool for the next generation of GNSS-based systems. With its user-friendly setup and robust performance, the ANN-MB1 is tailored to meet the demands of industries requiring precise and reliable GNSS solutions.
Specification | |
---|---|
Frequency Bands (MHz): | 1164 ~ 1188 / 1559 ~ 1606 |
Nominal Impedance (Ω): | 50 |
Peak Gain (dBic): | 1.3 / 3.8 |
Cable Length (m): | 5 |
Connector Type: | SMA |

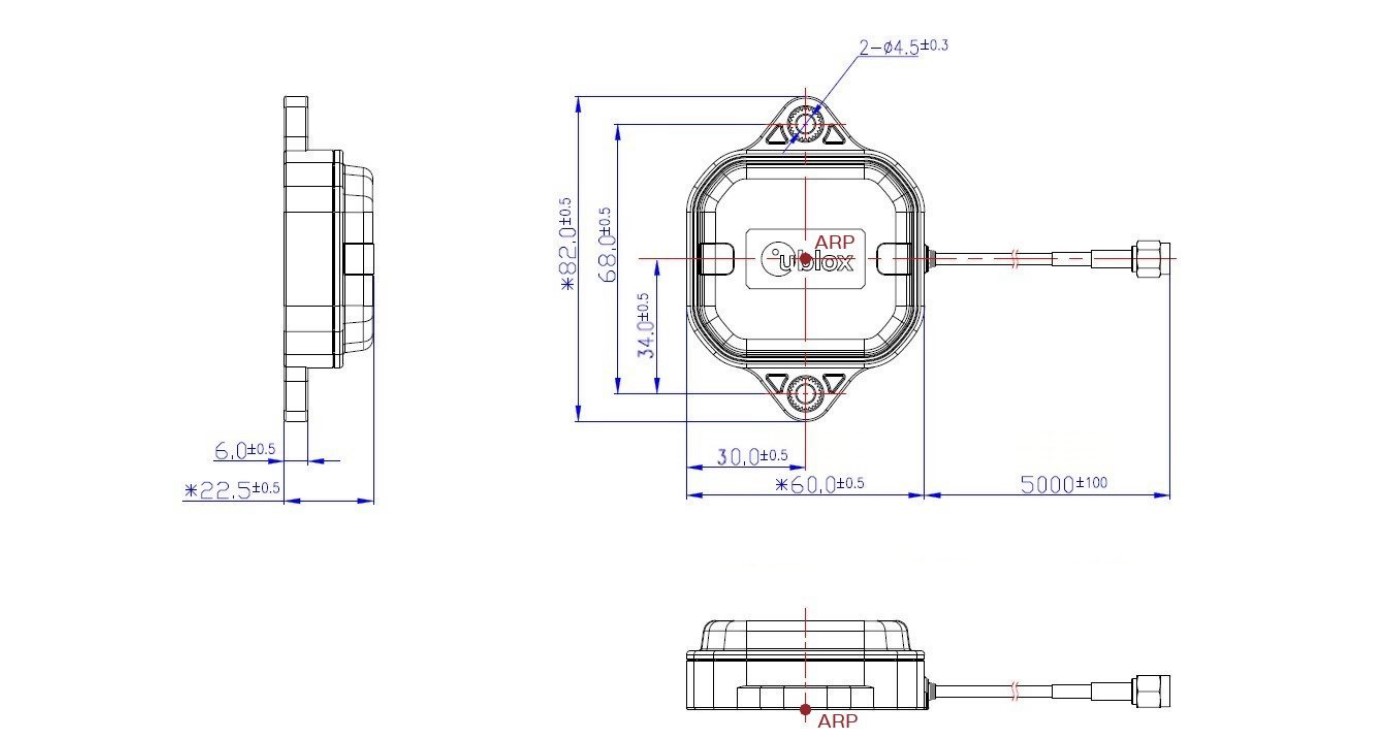

Dimensions (mm): | 82.0 x 60.0 x 22.5 |
