MIKROE-6062
16 g
Status:
Proximity 19 Click is a compact add-on board designed for precise proximity sensing in various applications. This board features the RPR-0720, a digital optical proximity sensor from ROHM Semiconductor. The RPR-0720 integrates an infrared VCSEL (IrVCSEL) and an IC with an I2C interface, featuring a detection range adjustable from 1 to 15mm and an ambient light canceling function. The board uses a 2-wire I2C interface for communication, supporting up to 400kHz frequency clock, allowing control over sensor functions such as operating mode, interrupt system, and offset/threshold adjustments. This Click board™ is ideal for wearable devices, AR/VR systems, smart home applications, and industrial automation.
Proximity 19 Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization. What sets this Click board™ apart is the groundbreaking ClickID feature, enabling your host system to seamlessly and automatically detect and identify this add-on board.
This product is no longer in stock
Availability date:

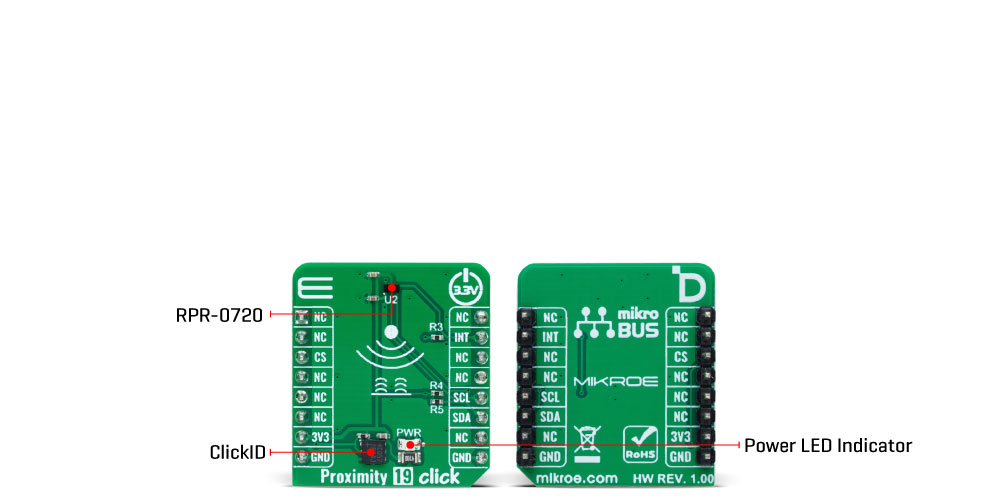

Proximity 19 Click is based on the RPR-0720, a miniature digital optical proximity sensor from ROHM Semiconductor that integrates an infrared VCSEL (IrVCSEL) and an IC with an I2C interface in a tiny package. This IC includes a built-in infrared receiver and VCSEL driver, enabling the sensor to detect human presence or objects by reflecting IrVCSEL light. The detection range of the proximity sensor is adjustable from approximately 1 to 15mm. Additionally, it is equipped with an ambient light canceling function, making it ideal for use in wearable and AR/VR devices, among other applications.
Proximity 19 Click uses a standard 2-wire I2C interface to communicate with the host MCU, supporting Standard mode with up to 400kHz of frequency clock. The I2C interface and registers allow for controlling various sensor functions, such as operating mode control, interrupt system management for interrupt signals available on INT pin, and adjusting offset and threshold values for proximity sensor data. This flexibility ensures precise and customizable operations tailored to specific application needs.
This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used as a reference for further development.
Type
Proximity
Applications
Ideal for wearable devices, AR/VR systems, smart home applications, and industrial automation
On-board modules
RPR-0720 - digital optical proximity sensor from ROHM Semiconductor
Key Features
Combining an infrared VCSEL (IrVCSEL) and an IC in one package, adjustable detection range from 1 to 15mm, ambient light canceling function, control over various sensor functions such as operating mode, interrupt system, and offset/threshold adjustments, operates exclusively with a 3.3V logic voltage level, and more
Interface
I2C
Feature
ClickID
Compatibility
mikroBUS™
Click board size
S (28.6 x 25.4 mm)
Input Voltage
3.3V
This table shows how the pinout on Proximity 19 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | - | 3.3 | - | V |
Distance Measurement Range | 1 | - | 15 | mm |
We provide a library for the Proximity 19 Click as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on MIKROE github account.
Library Description
This library contains API for Proximity 19 Click driver.
Key functions
proximity19_get_distance
This function reads the distance measured by the sensor in millimeters by using the I2C serial interface.
proximity19_set_ps_gain
This function adjusts the gain of the sensor's sensitivity to light reception.
proximity19_set_period
This function sets the desired data measurement period value.
Example Description
This example demonstrates the use of the Proximity 19 Click board™ by measuring and displaying the distance data.
void application_task ( void )
{
float distance = 0;
if ( PROXIMITY19_OK == proximity19_get_distance( &proximity19, &distance ) )
{
log_printf( &logger, " Distance: %.2f [mm] rnn", distance );
}
Delay_ms( 100 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on MIKROE github account.
Other MIKROE Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.
This Click board™ is supported with mikroSDK - MIKROE Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
For more information about mikroSDK, visit the official page.
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
