PCR Click

MIKROE-4636

21 g

Status:

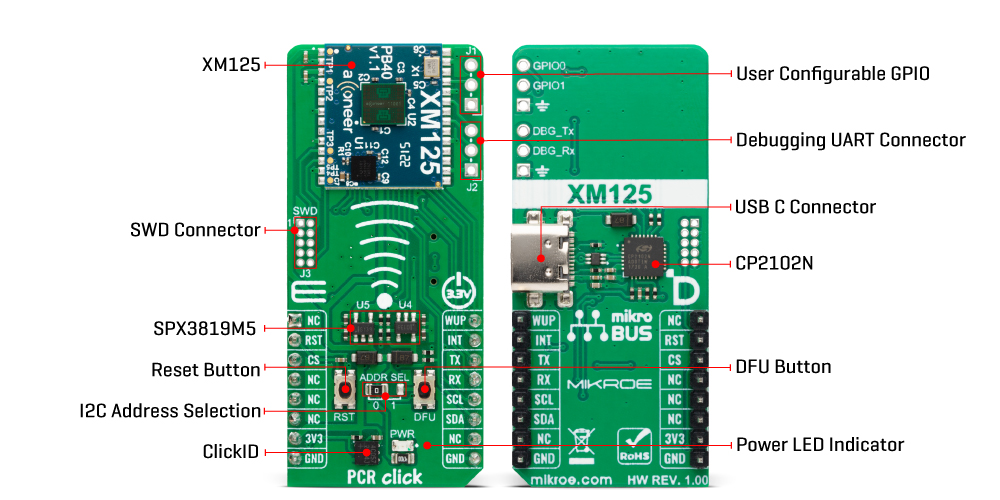

Type Proximity Applications Can be used for for developing high-precision people presence detection with the capability to recognize movement within configurable zones, motion detection, parking space occupancy detection, and level measurement in tanks or waste containers with configurable update frequency On-board modules XM125 - Entry+ PCR module from Acconeer Key Features Pulse coherent radar (PCR) with an integrated baseband, RF front-end and antenna in package (AiP), 32-bit ARM Cortex-M4 MCU, SWD/JTAG, integration of the device behind plastic or glass radomes without any need for a physical aperture, and more Interface I2C,UART,USB ClickID Yes Compatibility mikroBUS™ Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V


OFF

2 5 10

Quantity discount

QTY % PPU
2 5% $56.05
5 10% $53.10
10+ 15% $50.15

$59.00

SAVE:

Was: $59.00

Total Save:

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
