IR Thermo 4 Click

MIKROE-6135

20 g

Status:

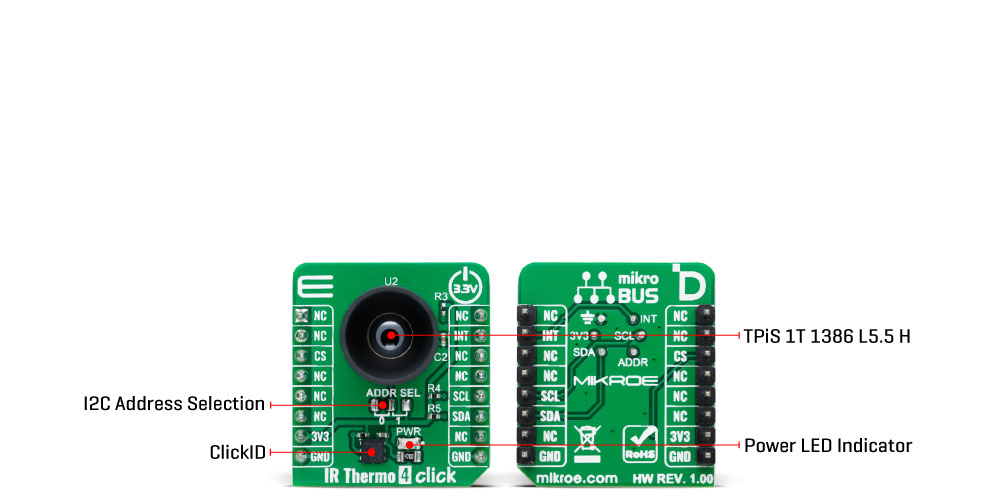

Type Temperature & humidity Applications Ideal for remote skin temperature monitoring, over-temperature protection, human presence sensing, and motion detection On-board modules TPiS 1T 1386 L5.5 H - high-accuracy narrow FoV thermopile sensor from Excelitas Key Features Narrow Field of View (FoV), factory-calibrated, high sensitivity, isothermal TO-39 sensor package, I2C interface, built-in ADC, multiple low-pass filters, interrupt support, and more Interface I2C Feature ClickID Compatibility mikroBUS™ Click board size S (28.6 x 25.4 mm) Input Voltage 3.3V


OFF

2 5 10

Quantity discount

QTY % PPU
2 5% $42.75
5 10% $40.50
10+ 15% $38.25

$45.00

SAVE:

Was: $45.00

Total Save:

Type Temperature & humidity

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
