HDC1000 click is a humidity (and temperature) measurement click™ board carrying the HDC1000 sensor from TI. Its chief features are low power consumption, precision, and resistance to dust, dirt, and similar environmental contaminants.
This product is no longer in stock
Availability date:

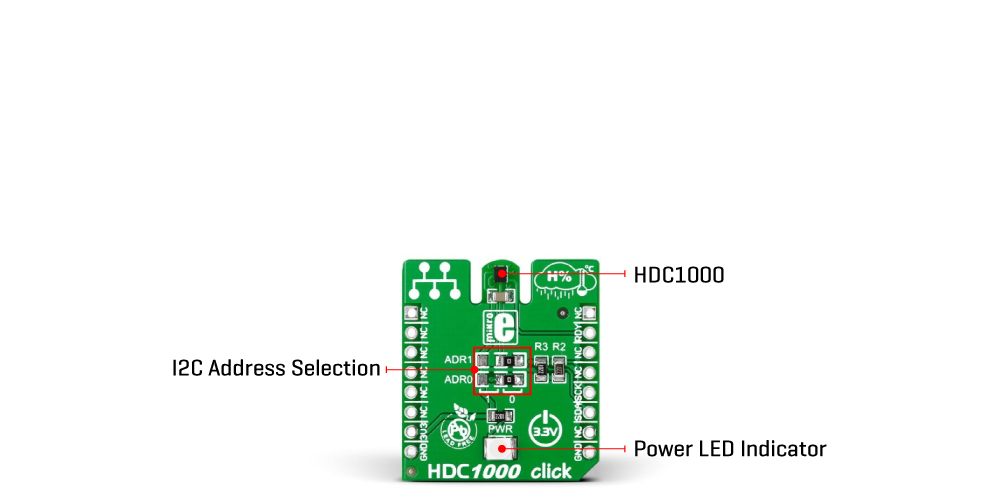

HDC1000 click is a humidity (and temperature) measurement click™ board carrying the HDC1000 sensor from TI. Its chief features are low power consumption, precision, and resistance to dust, dirt, and similar environmental contaminants. The relative humidity (0-100%RH) is measured with an accuracy of ±3%; the temperature is measured within a range from –20°C to 85°C with ±0.2°C accuracy. HDC1000 click communicates with the target board MCU through mikroBUS I2C and INT lines. It operates as a slave device on the I2C interface. A pair of onboard jumpers allow you to specify the slave byte address, with four to choose from. The board is designed to use a 3.3V power supply only.
| Type | Temperature & humidity |
| Applications | HVAC systems, thermostats, weather stations |
| On-board modules | HDC1000 sensor |
| Key Features | 0-100%RH, ±3% accuracy. -20°C to 85°C with ±0.2°C accuracy. 14-bit resolution measurements |
| Interface | GPIO,I2C |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
| Input Voltage | 3.3V |
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
