MIKROE-2539
20 g
Status:
Grid-EYE Click is a compact add-on board with an 8x8 thermal array detector. This board features the AMG8853, an infrared array sensor from Panasonic Semi. The temperature detection is achieved on a two-dimensional area of 8x8 (64 pixels) as a digital output, where the temperature values can be an output, too. A total number of 64 individual sensors can build an image on display and detect an object at a distance of up to 5m. This Click board™ makes the perfect solution for the development of thermal imaging systems, detecting movement of people and objects, high-performance home appliances (microwave ovens and air conditioners), energy savings in the office (air-conditioning and lighting controls), digital signage, automatic door, elevator, and more.
Grid-EYE Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
This product is no longer in stock
Availability date:
Grid-EYE Click is based on the AMG8853, an infrared array sensor from Panasonic Semi. It can detect the absolute surface temperature of an object without any contact, even a moving object such as a moving hand. The sensor senses the heat, so you don’t need light to form a picture. The temperature measuring range is from -20°C up to +100°C with a viewing angle of 60 degrees and a 5m detecting distance. It can be used in various applications. The AMG8853 has a built-in thermistor for suppressing ambient temperature noise. Infrared waves are outside the visible spectrum of the human eye, just like radio waves. Even though people can’t see infrared waves, they can certainly feel them in the form of heat. Our bodies emit heat or infrared radiation, and the AMG8853 thermal array sensor can detect it.
Grid-EYE Click uses a standard 2-Wire I2C interface to communicate with the host MCU, supporting fast mode. The I2C address can be selected over the ADDR SEL jumper with 0 selected by default. The AMG8853 works at 5V, and to work with a 3.3V logic level, this Click board™ features the PCA9306, a dual bidirectional I2C bus, and an SMBus voltage-level translator from Texas Instruments. The sensor features an interrupt function over the INT pin. For logic level translation of the interrupt pin, this Click board™ uses the SN74LVC1T45, a single-bit dual-supply bus transceiver with configurable voltage translation and 3-state outputs from Texas Instruments.
This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.
Type
Temperature & humidity
Applications
Can be used for the development of thermal imaging systems, detecting movement of people and objects, high-performance home appliances (microwave ovens and air conditioners), energy savings in the office (air-conditioning and lighting controls), digital signage, automatic door, elevator, and more
On-board modules
AMG8853 - infrared array sensor from Panasonic
Key Features
Up to 5m of detecting distance, 60 degrees viewing angle, 64 individual thermal sensors formin an 8x8 grid display of 64 pixels, interrupt function, logic level translation circuits, and more
Interface
GPIO,I2C
Feature
No ClickID
Compatibility
mikroBUS™
Click board size
M (42.9 x 25.4 mm)
Input Voltage
3.3V or 5V
This table shows how the pinout on Grid-EYE Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
- | VCC SEL | Left | Logic Level Voltage Selection 3V3/5V: Left position 3V3, Right position 5V |
- | ADDR SEL | Right | I2C Address Selection 1/0: Left position 1, Right position 0 |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | 3.3 | - | 5 | V |
Distance | - | - | 5 | m |
Temperature Operating Range | -20 | - | 100 | °C |
Temperature Output Resolution | - | - | 0.25 | °C |
Image Resolution | - | - | 64 | pixels |
We provide a library for the Grid Eye Click as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager(recommended), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for Grid Eye Click driver.
Key functions
Generic write function.
Generic read function.
Write data function
Example Description

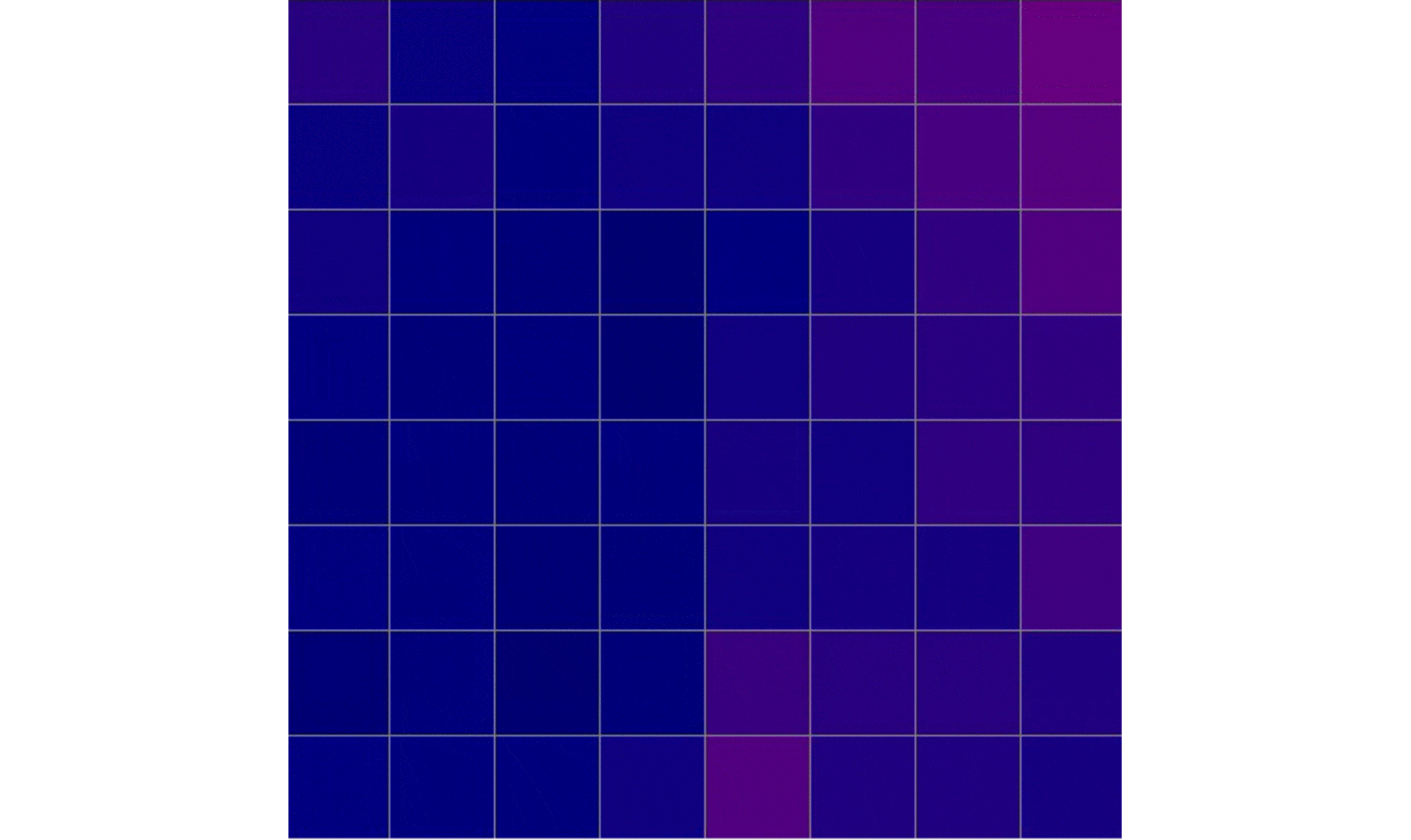

64 individual thermal sensors build an image on a display. The detecting distance is 5m.
void application_task ( void )
{
uint8_t i;
uint8_t j;
uint16_t grid_array[ 64 ];
uint16_t grid_array_tmp;
grideye_read_grid( &grideye, &grid_array );
for( i = 1; i < 9; i++ )
{
for( j = 1; j < 9; j++ )
{
log_printf( &logger, "| " );
grid_array_tmp = grid_array[ i * j ];
log_printf( &logger, "%d ", grid_array_tmp );
}
log_printf( &logger, " rn" );
log_printf( &logger, "-------------------------------------- rn" );
}
Delay_ms( 1000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager(recommended), downloaded from our LibStock™ or found on Mikroe github account.
Other Mikroe Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.
This Click board™ is supported with mikroSDK - MIKROE Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
For more information about mikroSDK, visit the official page.
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
