GNSS 21 Click

MIKROE-6409

20 g

Status:

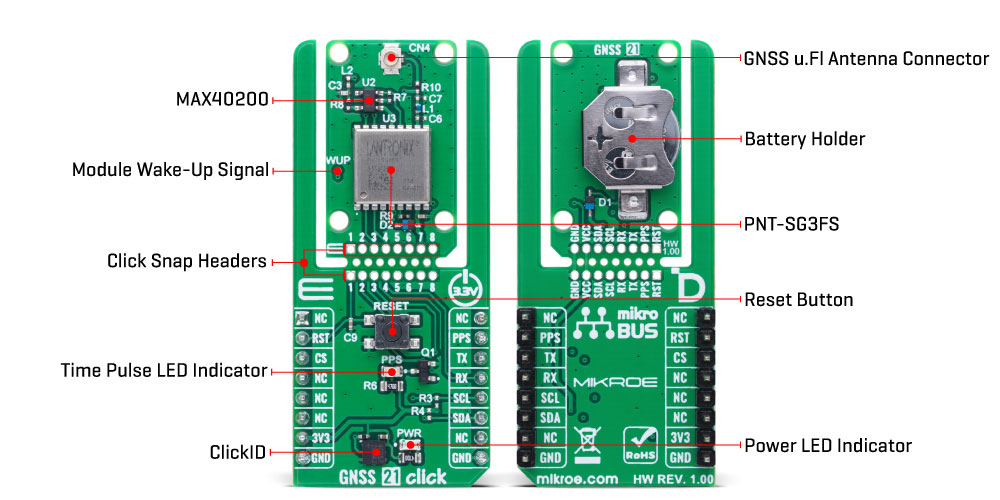

Type GPS/GNSS Applications Ideal for applications such as geolocation, fleet tracking, mapping, and any system requiring high-accuracy GNSS data On-board modules PNT-SG3FS - Global Navigation Satellite System (GNSS) standalone module from Lantronix Key Features Multi-constellation GNSS support, simultaneous tracking of up to 32 satellites, Assisted GNSS, Differential GPS support, high tracking sensitivity, onboard flash memory for data logging and firmware updates, geofencing and odometer functionality, UART and I2C communication interfaces, backup battery support, timepulse (PPS) output, Click Snap, and more Interface I2C,UART Feature Click Snap,ClickID Compatibility mikroBUS™ Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V,External


OFF

2 5 10

Quantity discount

QTY % PPU
2 5% $61.75
5 10% $58.50
10+ 15% $55.25

$65.00

SAVE:

Was: $65.00

Total Save:

Type GPS/GNSS

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
