Click Snap is the new feature of our standardized Click add-on boards, which gives many new possibilities for implementation
Our Click board™ format hasn't changed since its inception in 2011, so we wanted to address some usability requirements like low power, board size, and flexibility. With Click Snap feature we are getting all motioned benefits and still maintaining compatibility with existing mikroBUS™ systems and development boards. Boards with the Click Snap feature consist of two sections - flexible Snap-ing Part, and regular fixed Click board™ mikroBUS™ form factor.
BENEFITS
SMALL
Click Snap's compact design ensures it occupies minimal space in your project, making it ideal for applications where space is at a premium. This allows for more efficient use of available project board area and makes it easier to integrate multiple components into a single project.
LOW-POWER
Designed with energy efficiency in mind, Click Snap operates with minimal power consumption. This is particularly advantageous for battery-powered applications or projects where power availability is limited, helping to extend the overall operational life of your devices.
MOBILE
The lightweight and portable nature of Click Snap makes it perfect for mobile applications. Whether you are developing handheld devices or wearable technology, Click Snap provides the flexibility and ease of integration required for mobile use cases.
READY TO IMPLEMENT
Click Snap is designed to be easy to use right out of the box. With readily available connectors and wires from the MIKROE shop, you can quickly incorporate Click Snap into your projects, reducing development time and accelerating your time-to-market
HOW TO USE IT?
STEP 1

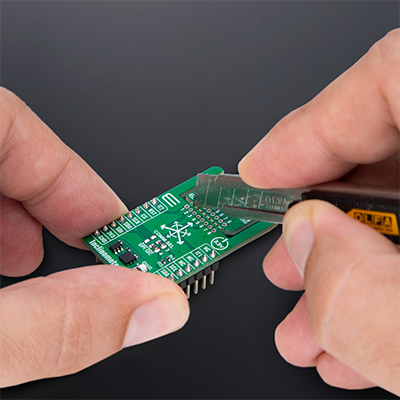

Make several cuts on both sides of the bridge to weaken the PCB.
STEP 2

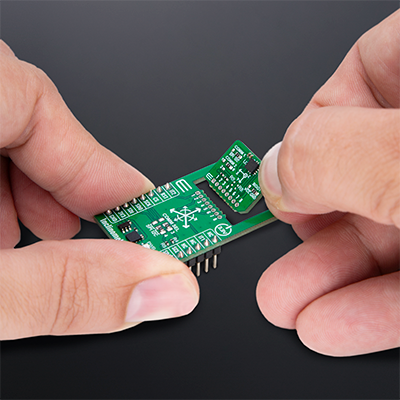

Carefully snap the board along the weakened lines using your hands or a suitable tool.
STEP 3

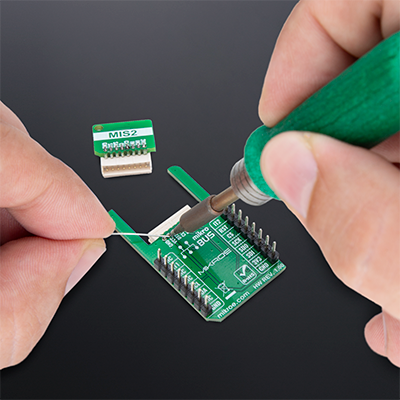

Solder a 1x8 male right angle connector, available in the MIKROE shop, onto the designated area of the PCB.
STEP 4

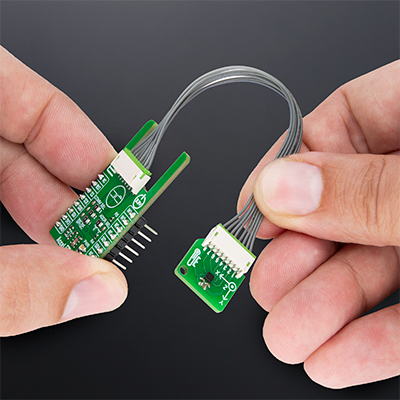

Connect the detached Click Snap area using an 8-wire female-to-female cable (available in 10cm or 30cm lengths) or a 1.5mm pitch male/female header for a board-to-board connection

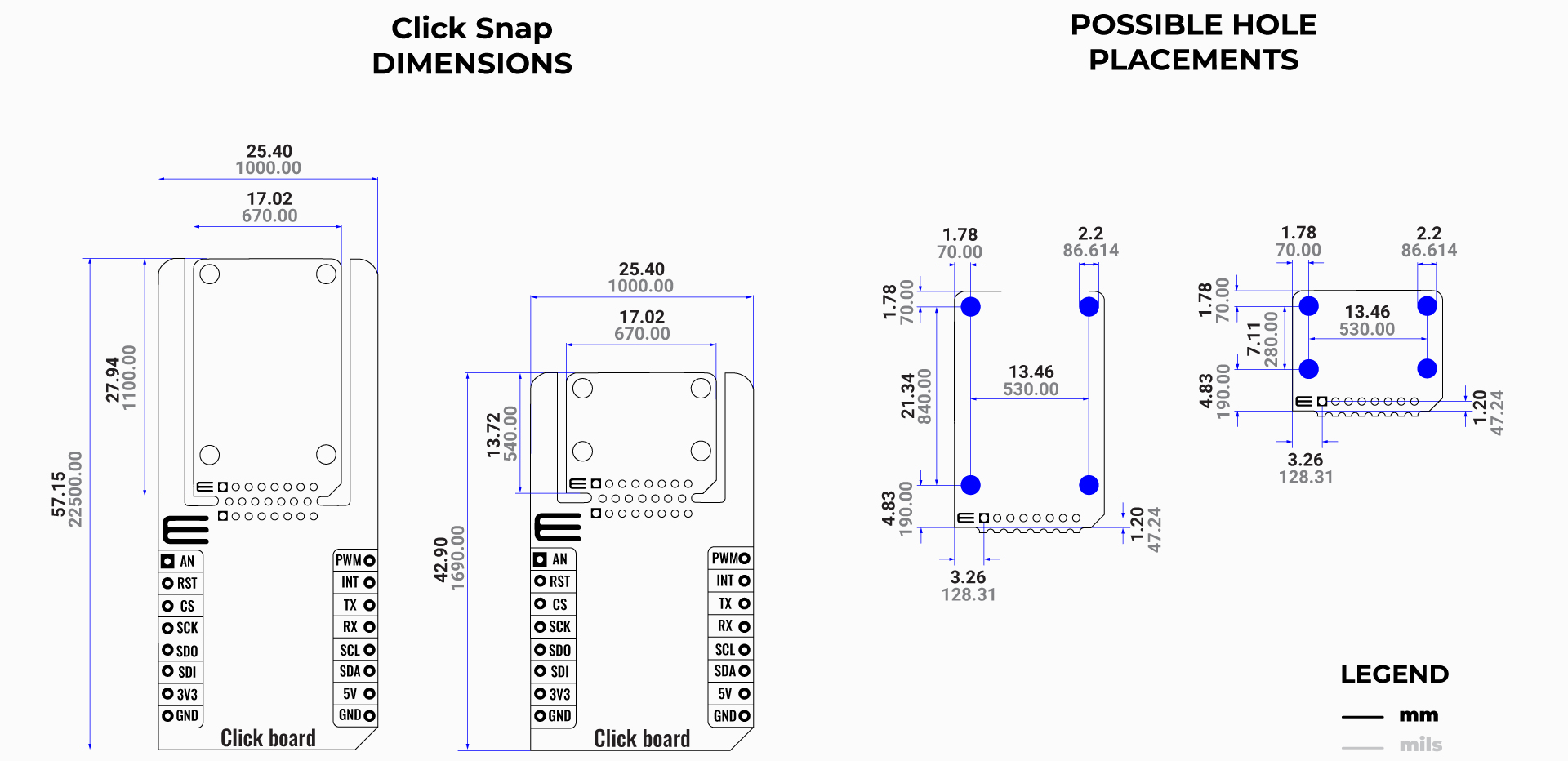

FORM-FACTOR
CONNECTORS AND WIRES

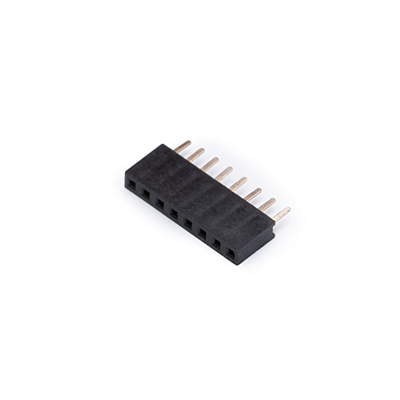

1x8 Female Header Socket TH - 1.5mm pitch for board-to-board connections

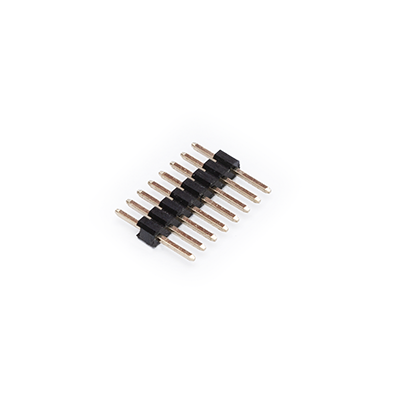

1x8 Male Header Socket TH - 1.5mm pitch for board-to-board connections

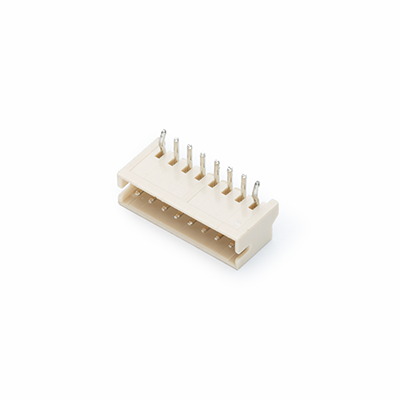

1x8 Male Connector Header Right Angle TH - 1.5mm pitch

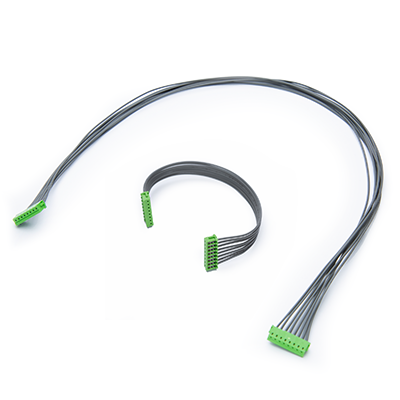

8-wire Female to Female Cable (10cm or 30cm)
Introducing the first ever Click board with Click Snap: the Inclinometer 4 Click, developed in collaboration with NXP. Stay tuned, because every week we'll be unveiling a new Click board™ featuring the innovative Click Snap functionality.
