OFF
MIKROE-6514
17 g
Status:

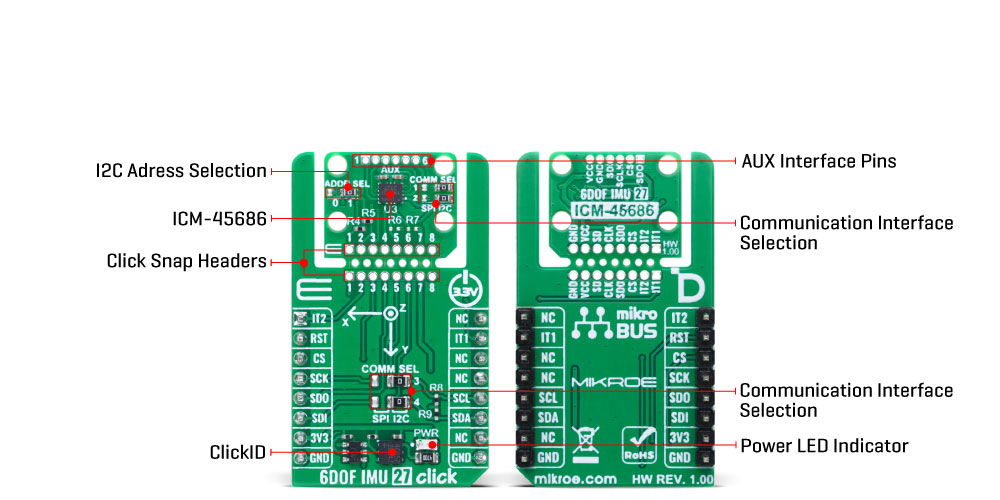

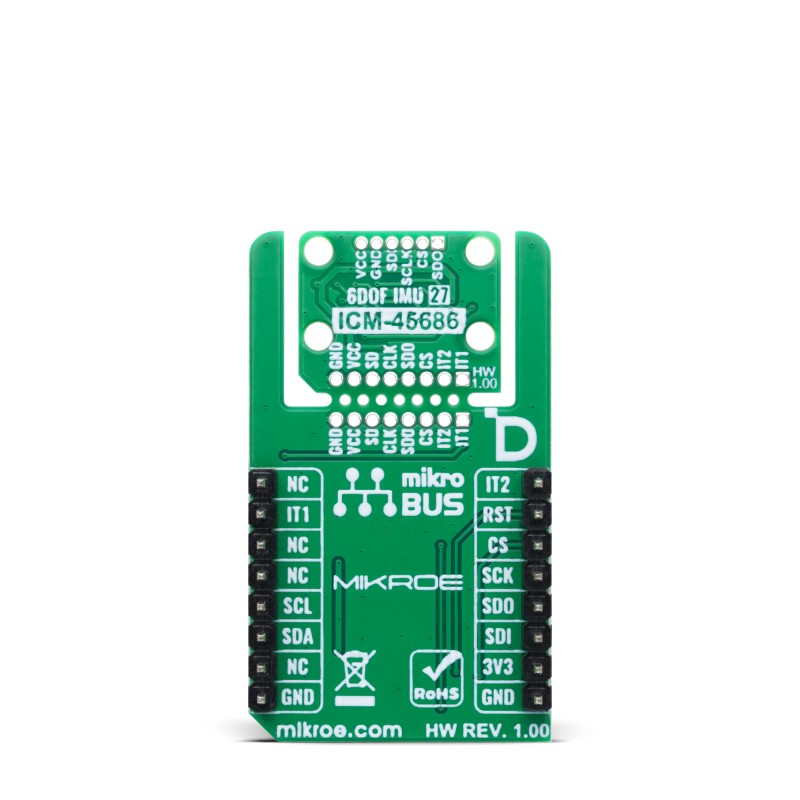

6DOF IMU 27 Click is a compact add-on board designed for precise and reliable 6-axis motion sensing. This board features the ICM-45686 sensor from TDK InvenSense, which combines a 3-axis gyroscope and a 3-axis accelerometer in a single compact package. The board features ultra-low sensor noise, exceptional stability against temperature and mechanical shock, an 8KB FIFO buffer, and supports I3C, I2C, and SPI interfaces. It also includes the advanced APEX Motion Processing engine, programmable filters, and a unique Click Snap format for flexible integration. This Click board™ is ideal for head-mounted displays, AR/VR controllers, wearable technology, and various IoT applications.
This product is no longer in stock
Availability date: 05/01/2025
Type
Motion
Applications
Ideal for head-mounted displays, AR/VR controllers, wearable technology, and various IoT applications
On-board modules
ICM-45686 - 6-axis MEMS MotionTracking device from TDK InvenSense
Key Features
Ultra-low noise 3-axis gyroscope and accelerometer, exceptional thermal and mechanical stability, embedded APEX Motion Processing engine, programmable digital filters, 8KB FIFO buffer, configurable Output and FIFO Data Rates, support for I3C, I2C, and SPI host interfaces, auxiliary interface supporting SPI slave and I2C master modes, Click Snap, and more
Interface
I2C,SPI
Compatibility
mikroBUS
Click board size
M (42.9 x 25.4 mm)
Input Voltage
3.3V
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
