WiFi NORA Click is a compact add-on board that provides WiFi and BLE connectivity for professional-grade applications. This board features the NORA-W366-00B6-00B, a dual-band WiFi module with Bluetooth Low Energy (BLE) from u-blox, offering support for WiFi 4 (802.11a/b/g/n) in both 2.4 and 5GHz bands and Bluetooth v5.3 with peripheral and central roles. It features a UART interface for easy integration with the host MCU, high-level AT command configuration, and robust security protocols, including WPA2/WPA3 and TLS encryption. The board also includes a user-configurable RGB LED indicator and buttons for bootloader and application mode selection. This Click board™ is ideal for applications in industrial automation, smart buildings, smart cities, healthcare, and EV charging, where reliable and versatile wireless communication is essential.
WiFi NORA Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization. What sets this Click board™ apart is the groundbreaking ClickID feature, enabling your host system to seamlessly and automatically detect and identify this add-on board.
This product is no longer in stock
Availability date:
WiFi NORA Click is based on the NORA-W366-00B6-00B, a dual-band WiFi and Bluetooth Low Energy (BLE) module from u-blox, based on a Realtek RTL8720DF chip designed to enhance wireless connectivity in professional-grade applications. This module supports WiFi 4 (802.11a/b/g/n) in both 2.4 and 5GHz bands, enabling it to function as either a WiFi station or an access point. Additionally, it offers Bluetooth v5.3 capabilities, allowing it to operate as a peripheral, central, or both, with the flexibility to act as a GATT client or server. Designed for a wide range of applications, WiFi NORA Click is ideal for industrial automation, smart buildings and homes, smart cities, metering and utilities, healthcare, and EV charging. The module comes globally certified and equipped with an internal PCB antenna that delivers high performance and an extensive range.
Pre-flashed with u-connectXpress software, the NORA-W366-00B module simplifies end-product integration and accelerates time-to-market. It includes a TCP/IP stack for both point-to-point and point-to-multipoint use cases and ensures secure communication with cloud-based services through support for TLS encryption and MQTT protocols. The module also offers robust security features, including WPA2/WPA3, WiFi enterprise security, and Bluetooth LE secure connections.

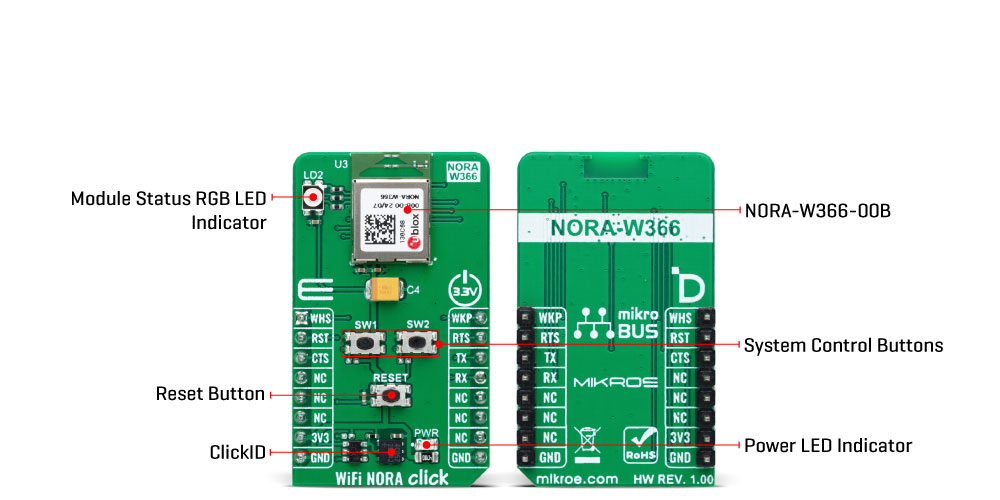

This Click board™ establishes communication between the NORA-W366-00B6-00B module and the host MCU through a UART interface, using standard UART RX and TX pins along with hardware flow control pins (CTS/RTS). The default communication speed is set at 115200bps, ensuring efficient data exchange. The host MCU configures wireless communication and various other features using high-level AT commands, eliminating the need for in-depth expertise in WiFi and Bluetooth protocol stacks. Besides interface pins, the module also uses some other mikroBUS™ pins like the WKP pin, which serves as an output for the host MCU wake-up function, and the WHS pin, which is used as the module wake-up signal to bring the module out of deep sleep mode. The board also features an RST pin and a RESET button, providing functionality for resetting the module.
WiFi NORA Click features two buttons, SW1 and SW2, to enter bootloader mode. When both buttons are pressed simultaneously, the module enters bootloader mode. If this state is maintained for more than 10 seconds without sending commands to the bootloader via UART, the u-connectXpress application will automatically boot, and the module settings will be restored to factory default values. Pressing only the SW1 button triggers the booting of the u-connectXpress application. Additionally, the Click board™ includes one user-configurable RGB LED indicator labeled LD2, which is used to indicate various module statuses.
This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used as a reference for further development.
Type
WiFi
Applications
Ideal for industrial automation, smart buildings, smart cities, healthcare, and EV charging
On-board modules
NORA-W366-00B6-00B - WiFi module with Bluetooth Low Energy (BLE) from u-blox
Key Features
Dual-band WiFi support, v5.3 BLE, UART interface with AT commands, pre-flashed software, user-configurable module status LED indicator, buttons for bootloader and application mode, wake-up signals for additional system control, reset, and more
Interface
UART
Feature
ClickID
Compatibility
mikroBUS™
Click board size
M (42.9 x 25.4 mm)
Input Voltage
3.3V
This table shows how the pinout on WiFi NORA Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
LD2 | LD2 | - | Module Status RGB LED Indicator |
T1 | RESET | - | Reset Button |
SW1-SW2 | SW1-SW2 | - | Bootloader/Application Mode Button |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | - | 3.3 | - | V |
WiFi Operating Range | 2.4 / 5 | GHz | ||
WiFi Range | - | - | 500 | m |
WiFi Sensitivity | - | -98 | - | dBm |
WiFi Output Power | - | - | +20 | dBm |
Bluetooth Sensitivity | - | -101 | - | dBm |
Bluetooth Output Power | - | - | +8 | dBm |
We provide a library for the WiFi NORA Click as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on MIKROE github account.
Library Description
This library contains API for WiFi NORA Click driver.
Key functions
wifinora_hw_reset
This function is used to perform HW reset.
wifinora_send_cmd
This function is used to send a desired command.
wifinora_send_cmd_with_par
This function sends a desired command with the parameter.
Example Description
This example demonstrates the use of WiFi NORA Click by processing the incoming data and displaying them on the USB UART.
void application_task ( void )
{
wifinora_example( );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on MIKROE github account.
Other MIKROE Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.
This Click board™ is supported with mikroSDK - MIKROE Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
For more information about mikroSDK, visit the official page.
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
