MIKROE-5707
2 g
Status:
WiFi 2.4GHz/5.4GHz Active FPC Antenna (W3918B0100) is a small but powerful flat patch antenna that operates in two different frequency ranges, offering dual-frequency capabilities with central frequencies of 2.4GHz and 5.4GHz. Measuring just 35.2x8.5x0.15mm, this antenna is incredibly efficient and has a nominal impedance of 50Ω. Besides the 2W power rating and omni radiation pattern, this antenna also has a U.FL connector type and 100mm cable length for easy integration. This antenna is an excellent choice for various applications, including WiFi 6E, Bluetooth, ZigBee, ISM band radios, IoT, M2M, and many more.
Furthermore, this antenna proves to be an exceptional option when paired with numerous Click boards™ from our wireless connectivity group, including WiFly Click, WiFi 10 Click, BLE 5 Click, and BLE TX Click. For more details about these Click boards™, please refer to their product pages.
This product is no longer in stock
Availability date:
OFF
WiFi 2.4GHz/5.4GHz Active FPC Antenna (W3918B0100) is an active flat patch antenna from Pulse Electronics ideal for WiFi 6E, Bluetooth, ZigBee, ISM band radios, IoT, M2M, and more. With dual-frequency capabilities in a range of 2.4-2.5GHz and 4.9-5.925GHz, with central frequencies of 2.4GHz and 5.4GHz, this flat patch antenna boasts a gain of typical 3dBi and omnidirectional radiation pattern. Measuring 35.2x8.5x0.15mm, the antenna size is compact yet efficient, and with a nominal impedance of 50Ω, it's designed to work seamlessly with your existing setup. The FPC material used for the antenna ensures durability and reliability, and with a power rating of 2W, you can trust it to perform consistently. The U.FL connector type and 10mm cable length make for easy integration into your system, and with its superior performance, the WiFi 2.4GHz/5.4GHz Active FPC Antenna is the perfect choice for your wireless communication and networking needs.
| Specification | |
|---|---|
| Frequency Bands (MHz): | 2.4-2.5GHz , 4.9-5.925GHz |
| Nominal Impedance (Ω): | 50 |
| Radiation Pattern: | Omni |
| Cable Length (mm): | 10 |
| Connector Type: | U.FL |
| Antenna Material: | FPC |

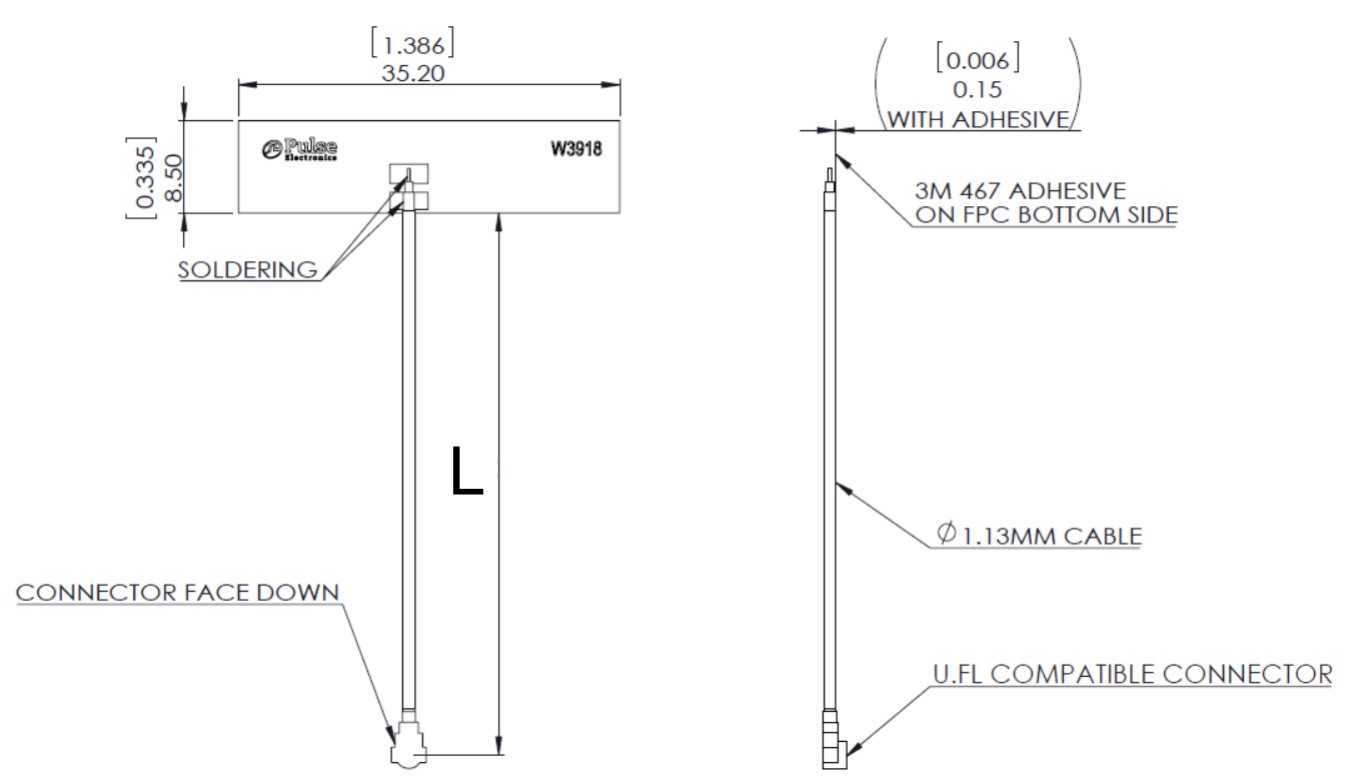

| Dimensions (mm): | 35.2x8.5x0.15 |
