UWB 3 Click

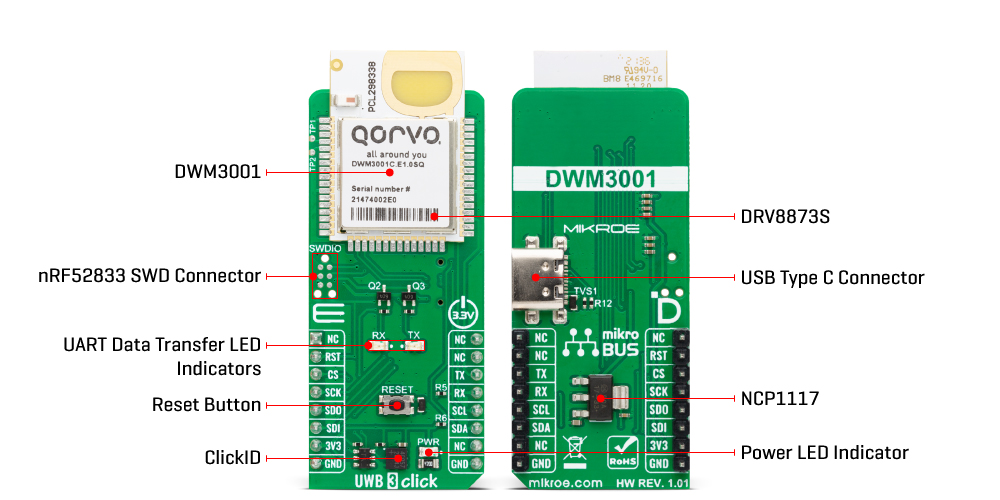

Applications Can be used for the development of precision real-time location systems (RTLS) using two-way ranging or TDoA schemes in various markets, location-aware wireless sensor networks (WSNs), and more On-board modules DWM3001 - fully integrated UWB transceiver module from Qorvo Key Features Support IEEE 802.15.4 – 2015, and IEEE 802.15.4z BPRF, fully aligned with FiRaTM PHY, MAC, and certification development, supports channels 5 and 9, Bluetooth, AES-128/256 security block, low power consumption, and more Interface I2C,SPI,UART,USB ClickID Yes Compatibility mikroBUS Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V
