MIKROE-5410
20 g
Status:

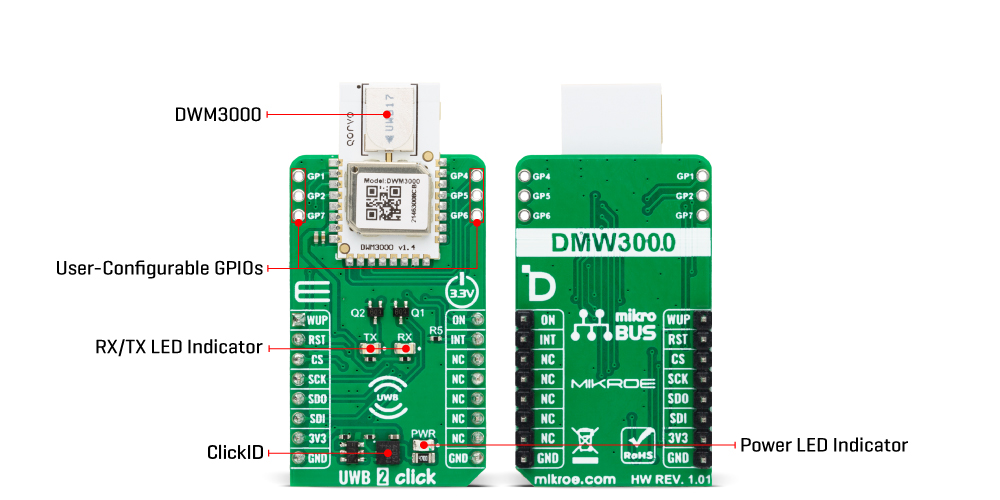

Type UWB Applications Can be used for for developing precision real-time location systems (RTLS) using two-way ranging or TDoA schemes in various markets, location-aware wireless sensor networks (WSNs), and more On-board modules DWM3000 - IEEE 802.15-z UWB transceiver module from Qorvo Key Features Ultra-wideband transceiver supporting UWB channels 5, and 9, fully aligned with FiRaTM PHY, MAC, and certification development, IEEE 802.15.4-2015 and IEEE 802.15.4z BPRF compliant, programmable transmitter output power, fully coherent receiver for maximum range and accuracy, low power consumption, integrated MAC support features, and more Interface SPI ClickID Yes Compatibility mikroBUS Click board size M (42.9 x 25.4 mm) Input Voltage 3.3V
This product is no longer in stock
Availability date: 09/12/2023
Type | UWB |
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
