How does it work?

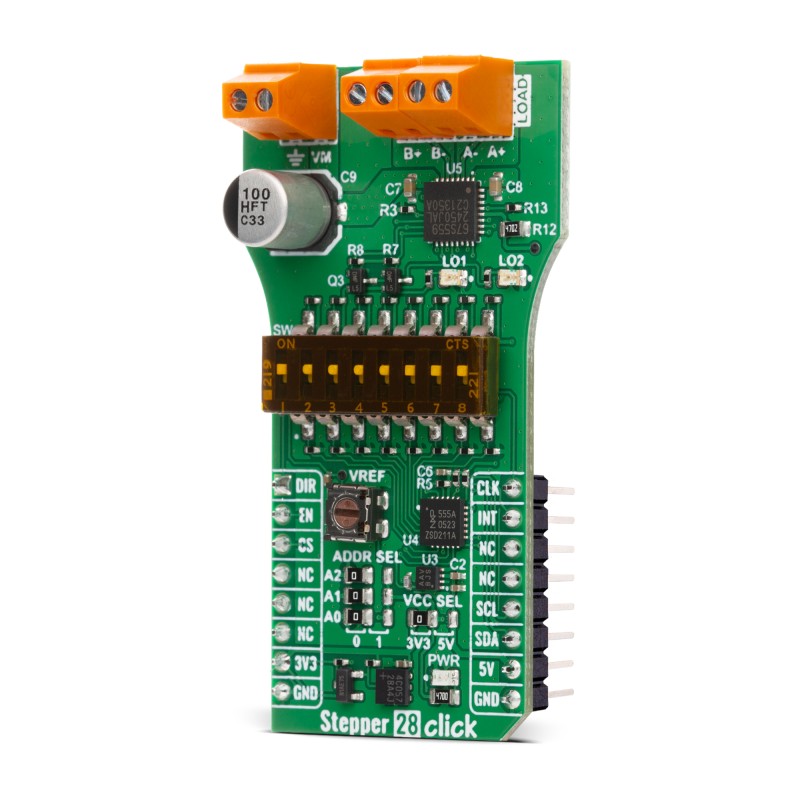

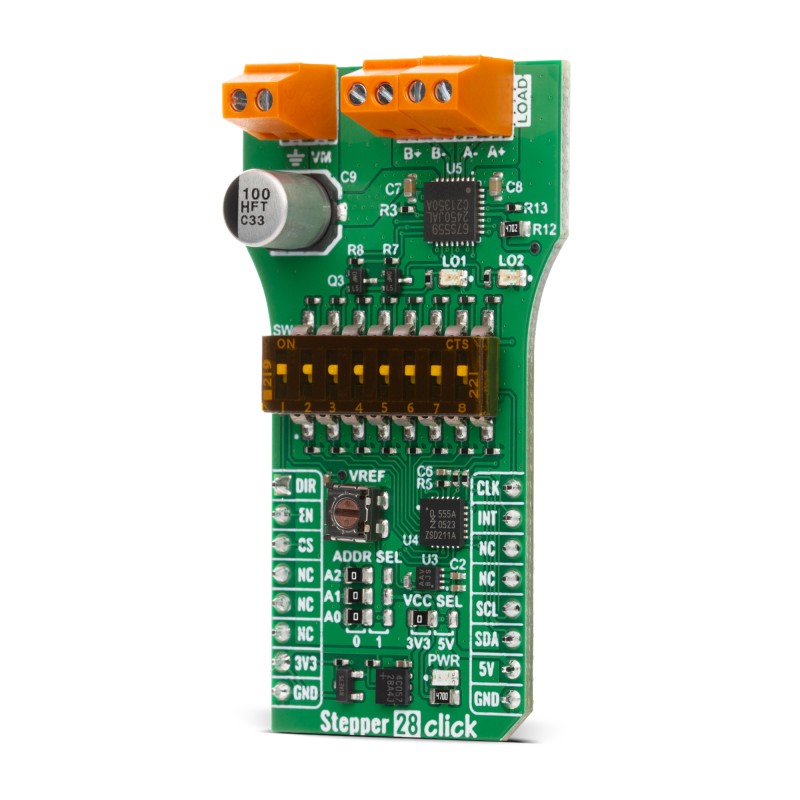

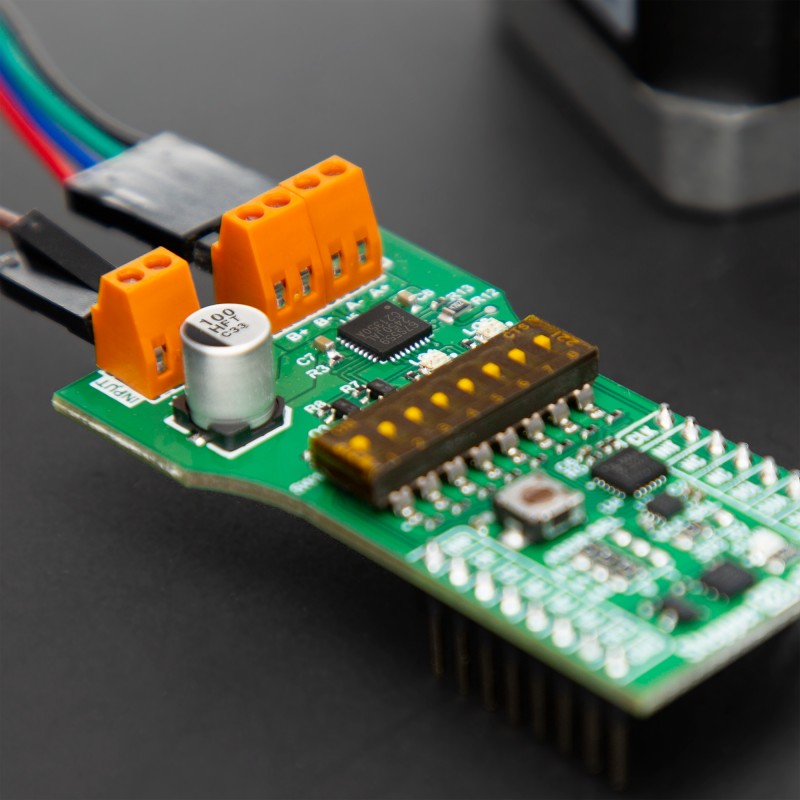

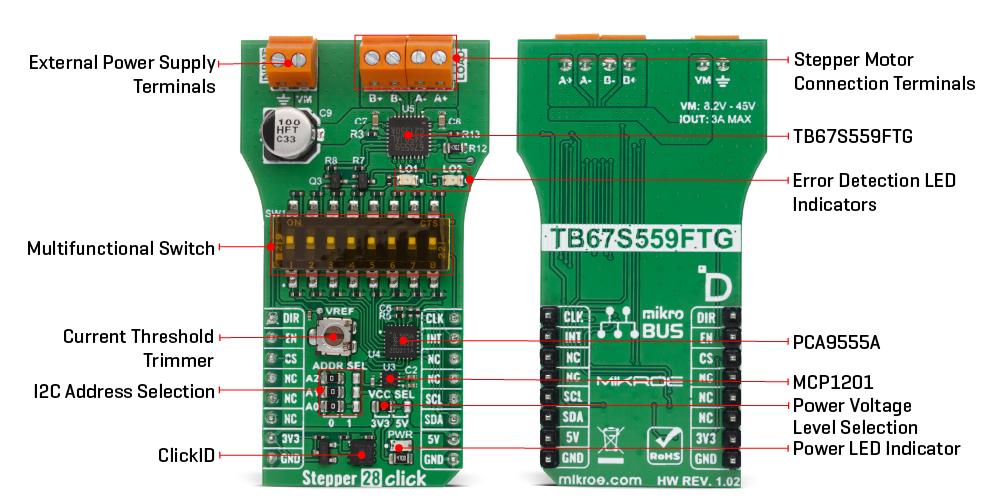

Stepper 28 Click is based on the TB67S559FTG, a PWM chopper-type 2-phase bipolar stepping motor driver IC from Toshiba Semiconductor designed using the BiCD process, integrating DMOSFETs as output power transistors. It supports motor drive with a single power supply ranging from 8.2V to 44V and delivers up to 2.7A maximum current output with a built-in regulator for internal IC supply. The TB67S559FTG incorporates Advanced Current Detect System (ACDS) technology, eliminating the need for external current detection resistors, and Advanced Dynamic Mixed Decay (ADMD) functionality, and protections like over-temperature, over-current, and under-voltage lockout. It also supports full-step to 1/32 step resolutions for less motor noise and smoother control, with a built-in mixed decay mode which helps to stabilize the current waveforms.
.jpg)
Thanks to the micro steps capability the TB67S559FTG supports, motor noise can be significantly reduced with smoother operation and more precise control. It is suited for driving 2-phase bipolar stepper motors in industrial automation, office equipment, and robotics applications. The current value is set by the reference voltage value obtained by the MCP1501, a high-precision voltage regulator. Also, the current threshold point of the TB67S589FTG, alongside MCP1501, can be set manually using an onboard trimmer labeled VR.
The control of the Stepper 28 Click is managed through specific pins on the mikroBUS™ socket: The CLK clock signal, routed to the default PWM position, advances the motor's current step and electrical angle with each rising edge. The Enable pin, EN pin, controls the activation state of the output A and B stepping motor drive channels. Additionally, the DIR pin determines the rotation direction of the stepping motor, with a HIGH logic level indicating forward rotation and a LOW logic level indicating reverse rotation.
Due to the limited number of control pins on the mikroBUS™ for managing the TB67S559FTG, the Stepper 28 Click also incorporates the PCA9555A port expander. This port expander, interfacing via the I2C interface, provides additional control over the TB67S559FTG and its functions. One of the key functions enabled through this port expander is the Decay mode. The selectable mixed decay function allows to switch between four decay modes MIXED, SLOW, FAST, and ADMD (Advanced Dynamic Mixed Decay technology from Toshiba). This optimization enhances the performance and efficiency of the stepping motor.
Additionally, the Torque mode pins set the motor's torque by adjusting the logical levels of both IC’s TRQx pins. It is possible to set the torque to 100%, 75%, 50%, or 25% without changing the reference voltage level of the current regulator . The RST pin resets the electrical angle in the internal counter to an initial position. Furthermore, the MO pin indicates the achievement of the initial electrical angle position.
Besides these functions, the port expander also controls the DMODE pins, which set the step resolution to full, half-step, quarter-step, 1/8, 1/16, or 1/32. The Sleep mode function allows switching between power-saving mode and normal operation mode. By setting the Sleep mode and then returning to the normal operation mode, it is possible to recover from the forced OFF-state caused by the overheating or over-current detection circuit operation. Alternatively these functions can also be controlled via a multifunctional switch, where selecting a particular switch position (1 for Sleep Mode; 2, 3 for Torque Control; 4,5 for Decay Mode Control; 6,7,8 for Step Resolution Setting) allows for easy and efficient management of the board's operations.
The board also includes two LED error signalling indicators: a LO1 red LED is active when overcurrent or overtemperature occurs, while LO2 is only active when overtemperature occurs (to differentiate the LO1 general error signal). The PCA9555A also allows choosing the least significant bit (LSB) of its I2C address by positioning SMD jumpers labeled as ADDR SEL to an appropriate position marked as 0 and 1, alongside its interrupt feature routed to the INT pin of the mikroBUS™ socket. The INT pin signals the host MCU in cases such as overcurrent and overtemperature conditions (in addition to LED indicators for visual detection of these states), as well as the MO pin status that indicates the achievement of the initial electrical angle position.
This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.
Specifications
Type |
Stepper |
Applications |
Ideal for office automation equipment, point of sale (POS) terminals, vending machines, surveillance cameras, industrial equipment, and more |
On-board modules |
TB67S559FTG - BiCD constant-current 2-phase bipolar stepping motor driver IC from Toshiba Semiconductor |
Key Features |
BiCD process integration with DMOSFET output transistors and low ON resistance, Advanced Current Detect System for resistor-less current sensing, Advanced Dynamic Mixed Decay function, step resolutions from full-step to 1/32, manual current threshold adjustment via onboard trimmer, selectable decay modes, torque control with selectable levels, Sleep mode, and more |
Interface |
I2C,PWM |
Feature |
ClickID |
Compatibility |
mikroBUS™ |
Click board size |
L (57.15 x 25.4 mm) |
Input Voltage |
3.3V or 5V,External |

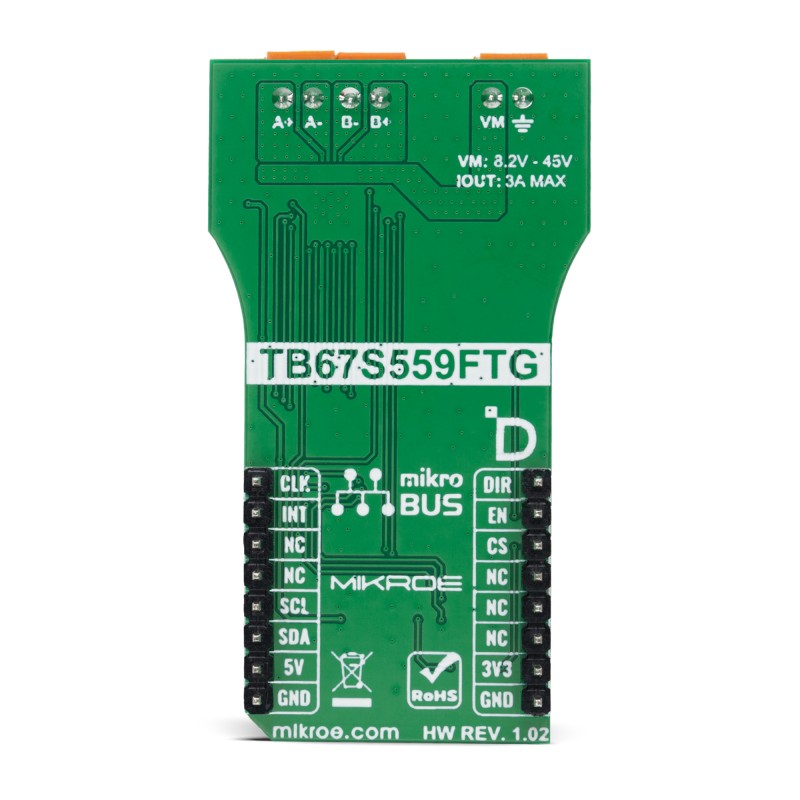

Pinout diagram
This table shows how the pinout on Stepper 28 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Notes |
Pin |
 |
Pin |
Notes |
---|
Rotation Direction Control |
DIR |
1 |
AN |
PWM |
16 |
CLK |
Step Clock |
Electrical Angle Intilizing / ID SEL |
RST |
2 |
RST |
INT |
15 |
INT |
Interrupt |
Output Enable / ID COMM |
EN |
3 |
CS |
RX |
14 |
NC |
|
|
NC |
4 |
SCK |
TX |
13 |
NC |
|
|
NC |
5 |
MISO |
SCL |
12 |
SCL |
I2C Clock |
|
NC |
6 |
MOSI |
SDA |
11 |
SDA |
I2C Data |
Power Supply |
3.3V |
7 |
3.3V |
5V |
10 |
5V |
Power Supply |
Ground |
GND |
8 |
GND |
GND |
9 |
GND |
Ground |

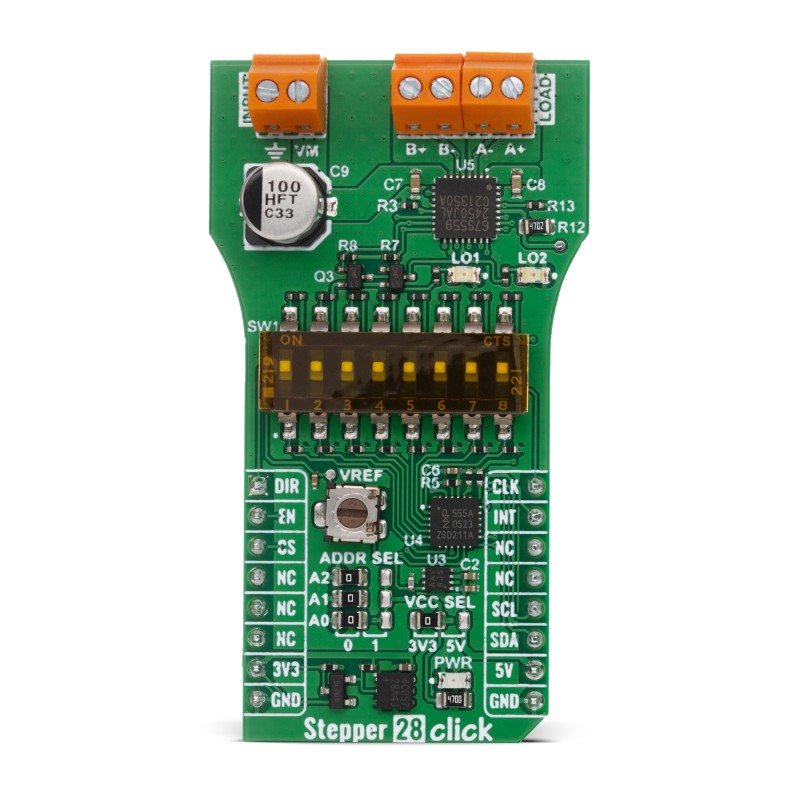

Onboard settings and indicators
Label |
Name |
Default |
Description |
---|
LD1 |
PWR |
- |
Power LED Indicator |
LD2 |
LO1 |
- |
Overcurrent or Overtemperature State LED Indicator |
LD3 |
LO2 |
- |
Only Overtemperature State LED Indicator |
JP1 |
VCC SEL |
Left |
Power Voltage Level Selection 3V3/5V: Left position 3V3, Right position 5V |
JP2-JP4 |
ADDR SEL |
Left |
I2C Address Selection 0/1: Left position 0, Right position 1 |
SW1 |
POS 1 |
- |
Sleep Mode Control Switch |
SW1 |
POS 2-3 |
- |
Torque Control Switch |
SW1 |
POS 4-5 |
- |
Decay Mode Control Switch |
SW1 |
POS 6-7-8 |
- |
Step Resolution Control Switch |
VR1 |
VREF |
- |
Current Threshold Trimmer |
Stepper 28 Click electrical specifications
Description |
Min |
Typ |
Max |
Unit |
---|
Supply Voltage |
3.3 |
- |
5 |
V |
External Supply Voltage |
8.2 |
24 |
44 |
V |
Output Current |
- |
- |
2.7 |
A |
Software Support
Stepper 28 Click demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK's open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.
Example Description
This example demonstrates the use of the Stepper 28 Click board by driving the motor in both directions for a desired number of steps.
Key Functions
stepper28_cfg_setup
This function initializes Click configuration structure to initial values.
stepper28_init
This function initializes all necessary pins and peripherals used for this Click board.
stepper28_default_cfg
This function executes a default configuration of Stepper 28 Click board.
stepper28_set_direction
This function sets the motor direction by setting the DIR pin logic state.
stepper28_set_step_mode
This function sets the step mode resolution settings.
stepper28_drive_motor
This function drives the motor for the specific number of steps at the selected speed.
Application Init
Initializes the driver and performs the Click default configuration.
Application Task
Drives the motor clockwise for 200 full steps and then counter-clockwise for 200 half steps and 400 quarter steps with a 1 second delay on driving mode change. All data is being logged on the USB UART where you can track the program flow.
Application Output
This Click board can be interfaced and monitored in two ways:
- Application Output - Use the "Application Output" window in Debug mode for real-time data monitoring. Set it up properly by following this tutorial.
- UART Terminal - Monitor data via the UART Terminal using a USB to UART converter. For detailed instructions, check out this tutorial.
Additional Notes and Information
The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.
