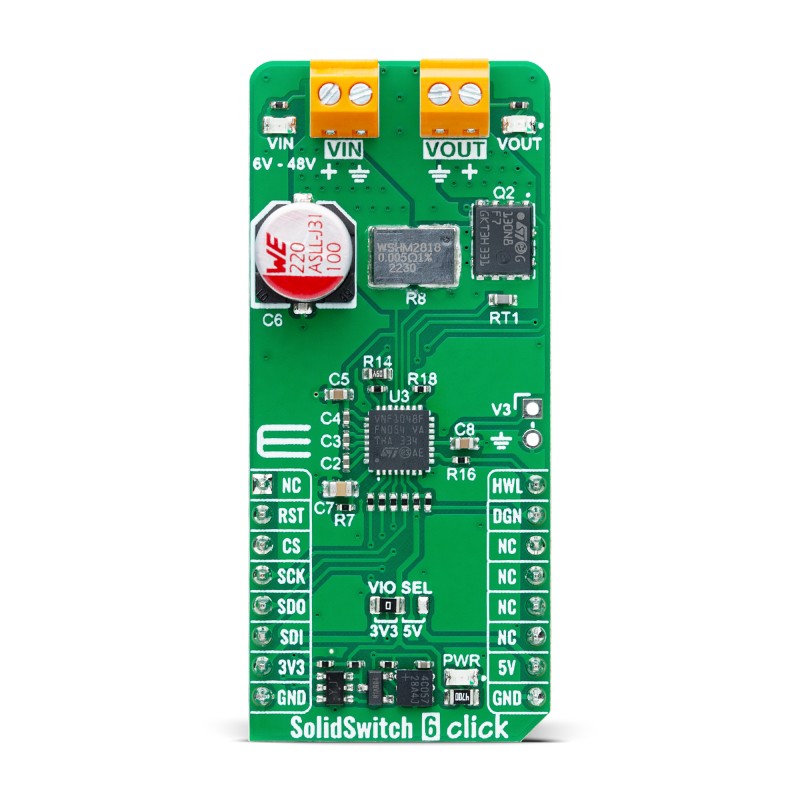

SolidSwitch 6 Click

PID: MIKROE-6089

Weight: 21 g

Status:

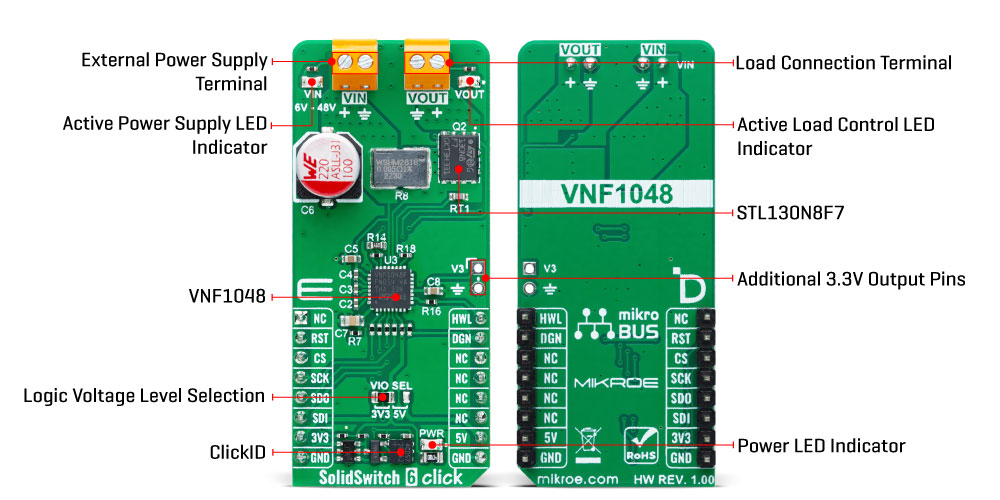

Type Relay Applications Ideal for automotive applications like load control in cars, trucks, and other vehicles On-board modules VNF1048F - high-side switch controller with intelligent e-fuse protection from STMicroelectronics Key Features High-side switch controller, intelligent e-fuse protection, NTC resistor for monitoring MOSFET temperature, diagnostic feedback, multiple protection features, SPI interface, additional 3.3V output for I/O and supply, and more Interface SPI Feature ClickID Compatibility mikroBUS™ Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V or 5V,External

OFF

QTY	%	PPU
2	5%	$27.55
5	10%	$26.10
10+	15%	$24.65

Looking for a customized version of this product?

If you have other questions about this product contact us.

Specification

Type	Relay

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
