SMA Male to BNC Female Type Adapter View larger
SMA Male to BNC Female Type Adapter
Previous

SMA Male to BNC Female Type Adapter

MIKROE-5984

13 g

Status:

SMA to BNC Adapter provides seamless interconnection for devices with SMA male and BNC female interfaces. This high-performance connector ensures reliable signal integrity with a 50Ohm impedance and supports up to 4GHz frequencies. Gold-plated center contact minimizes signal loss, while the nickel-plated brass body enhances durability. This adapter simplifies interconnection for various applications, making it essential for test labs and field environments.

For example, the SMA male to BNC female adapter can be used to connect the plastic pH electrode (BNC female) to the EZO Carrier Click - pH (SMA male).

More details


OFF

2 5 10

Quantity discount

QTY % PPU
2 5% $12.54
5 10% $11.88
10+ 15% $11.22

$13.20

SAVE:

Was: $13.20

Total Save:

GO LOCAL

Company Stock Price

How does it work?

SMA Male to BNC Female Adapter is a high-performance connector designed for seamless interconnection between devices featuring SMA male and BNC female interfaces. With a 50Ohm impedance and a maximum frequency of 4GHz, this adapter ensures reliable signal integrity. Its gold-plated center contact minimizes signal loss, while the nickel-plated brass body enhances corrosion resistance. Versatile in application, this straight-style adapter is packaged in bulk, bearing the trusted Amphenol RF brand.

Its phosphor bronze contact material adds to its durability. This adapter proves indispensable whether used in coax retrofit applications, coaxial extensions, or OEM coax setups requiring interface conversion. In a concise design, it simplifies the interconnection of devices with varying interface types, making it an essential tool for test labs and field environments. The adapter's robust construction and adaptability address interconnection challenges, offering a reliable solution for diverse scenarios where high-quality coaxial connections are crucial.

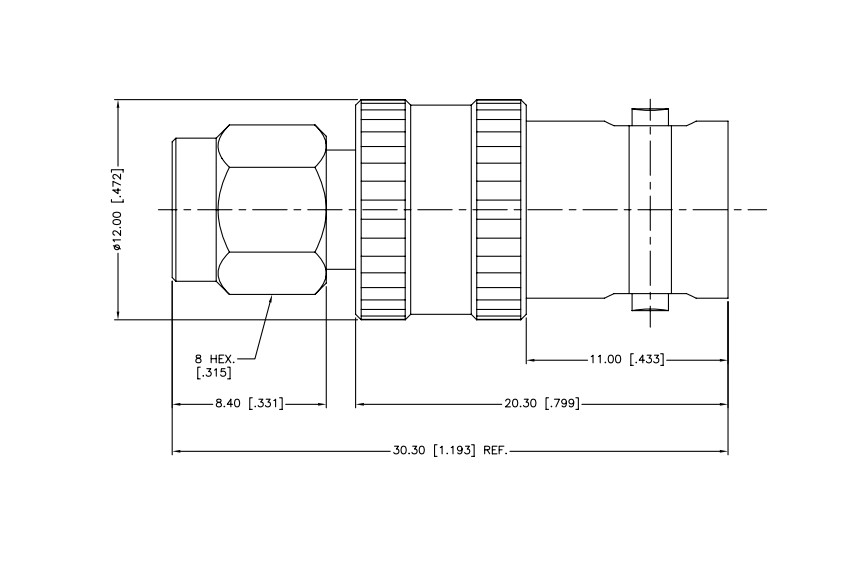

SMA Male to BNC Female Type Adapter Mechanical Specifications

BNC Female to SMA Male Type Adapter

SMA Male to BNC Female Type Adapter Mechanical Specifications

Connector Type: SMA-BNC
Side 1 RF Series: SMA
Side 1 Gender: Plug (Male)
Side 1 Polarity: Normal
Side 2 RF Series: BNC
Side 2 Gender: Jack (Female)
Side 2 Polarity: Normal
Impedance: 50Ohms
Maximum Frequency: 4GHz
Shell Plating: Nickel
Body Material: Brass
Contact Plating: Gold
Adapter Style: Straight
Contact Material: Phosphor Bronze
