RTC4 click carries DS2417, a real time clock/calendar with a 1-Wire MicroLAN interface and a programmable interrupt for system output.
This product is no longer in stock

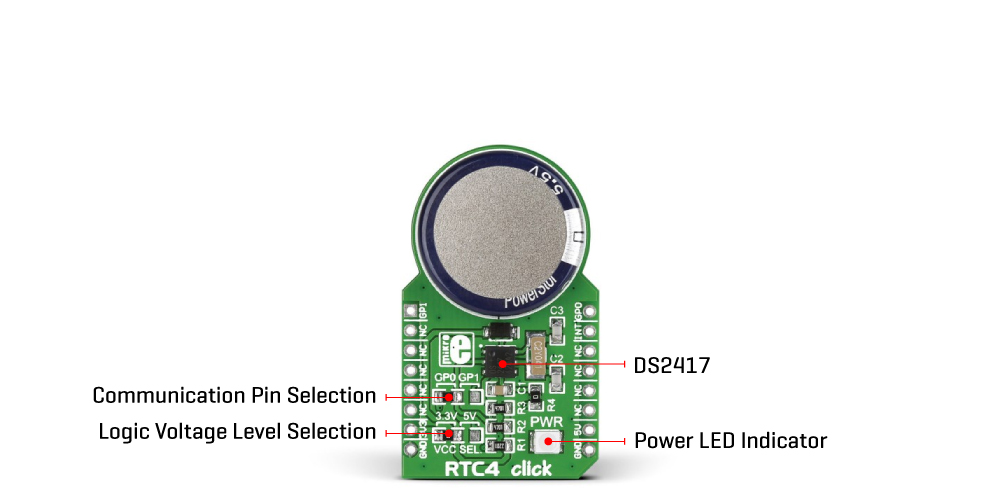

RTC4 click carries DS2417, a real time clock/calendar with a 1-Wire MicroLAN interface and a programmable interrupt for system output. The clock frequency is derived from an onboard 32.768KHz oscillator. An integrated backup energy source maintains a charge with an onboard coin cell supercapacitor. The clock has an accuracy of +/-2 minutes per month at a 25 degrees Celsius temperature. Depending on the position of the onboard jumper, RTC4 click communicates with the target board MCU either through mikroBUS AN or PWM pin (here, GPI01, GPIO0), plus the INT pin. The board is designed to use either a 3.3V or 5V power supply.
|Applications||Applications which require real-time clocks, calendars and programmed alarms, all through a 1-Wire interface|
|On-board modules||DS2417, a real time clock/calendar with a 1-Wire MicroLAN interface|
|Key Features||16.3 kbits per second|
|Key Benefits||Programmable interrupt for system wakeup|
|Input Voltage||3.3V or 5V|
|Click board size||M (42.9 x 25.4 mm)|
