Pressure 2 click carries MS5803, a high resolution MEMS pressure sensor that is both precise and robust. Its measurement range is from 0 to 14 bars...
This product is no longer in stock

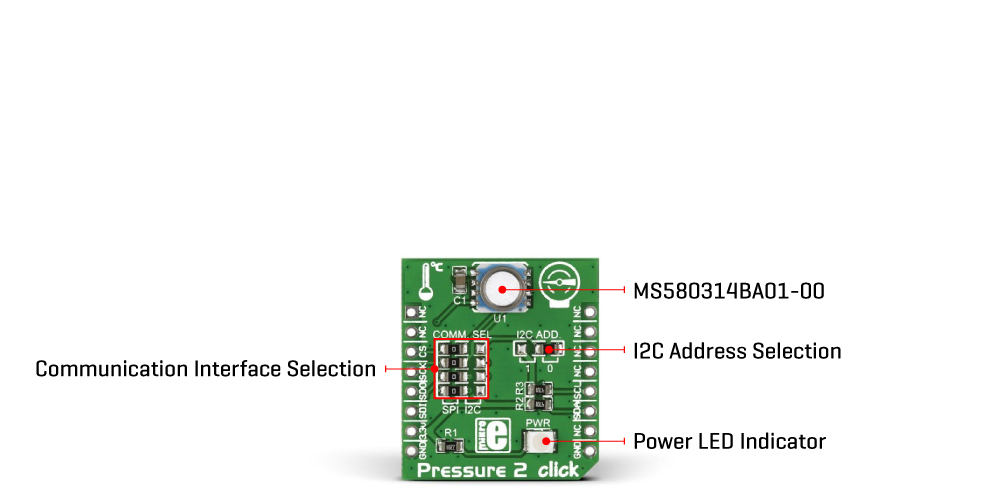

Pressure 2 click carries MS5803, a high resolution MEMS pressure sensor that is both precise and robust. Its measurement range is from 0 to 14 bars (with a resolution of up to 0.2 mbars), but because of the stainless steel cap enclosure, the sensor can withstand up to 30 bars of pressure. Pressure 2 click communicates with the target board MCU either through mikroBUS SPI or I2C lines, depending on the position in which the onboard jumpers are soldered.
|Applications||Robust but precise pressure measurement systems, such as adventure watches and suchlike|
|On-board modules||MS5803, a high resolution MEMS pressure sensor|
|Key Features||0-14 bars measurement range. Up to 0.2 mbar resolution, down to 1 ms conversion time|
|Click board size||S (28.6 x 25.4 mm)|
