PIR 2 Click

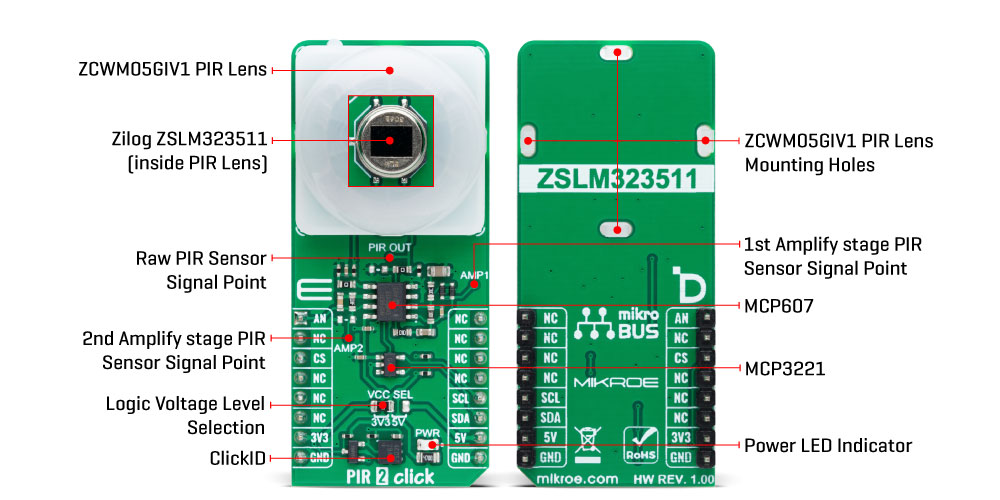

Type Motion Applications Ideal for security systems, lighting control, video doorbells, and more On-board modules ZSLM323511 - dual-element balanced differential pyroelectric (PIR) sensor from Zilog Key Features High performance, excellent EMI immunity, two sensing elements behind a spectral filter window, tuned to an 8-13um wavelength for blocking unwanted IR energy, 0.6mm element spacing for additional white light protection, typical field of view 150deg on the X- and 139 on Y-axis, integrated the ZCWM05GIV1 PIR lens for maximum IR transmissivity, output options between analog or digital processing, test points for signal monitoring throughout the process stages, and more Interface Analog,I2C ClickID Yes Compatibility mikroBUS™ Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V or 5V
