Micro Servo motor SG 180 degree

Name: Micro Servo motor SG 180 degree
Brand: MIKROE
SKU: MIKROE-6817
Price: 5.90 USD
Availability: InStock

PID: MIKROE-6817

Weight: 19 g

Status:

Micro Servo motor SG 180 degree (SG90) is a compact 9g micro servo motor designed to provide precise angular motion and reliable actuation in small embedded and robotic systems. It offers a 180-degree rotation range with 90 degrees in each direction, enabling smooth and accurate positioning for mechanical and automation tasks. Built with durable POM gears and a lightweight body, this servo ensures long-lasting performance and stable torque output of up to 1.8 kg/cm at 4.8V. It supports standard PWM control signals, making it compatible with a wide range of microcontrollers such as PIC, and STM32, and requires no additional motor drivers or feedback systems. The servo features a 25 cm cable with a JR connector for easy integration and includes three interchangeable horns with mounting hardware. Ideal for robotics, RC models, automation projects, and educational kits, this servo delivers durability and versatility in motion control applications.

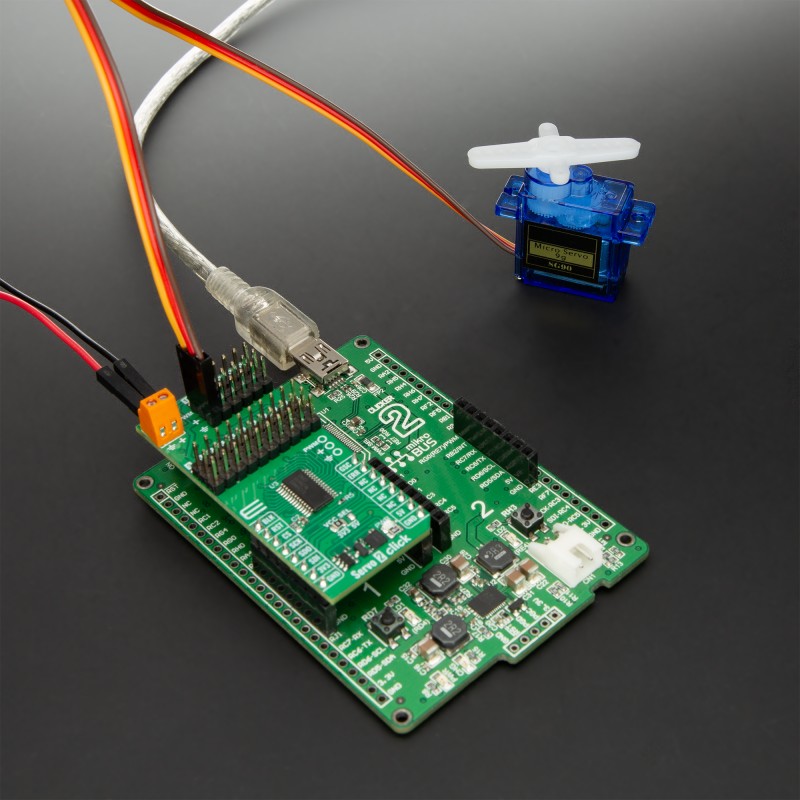

NOTE: This servo motor is fully compatible with MIKROE’s Servo Click boards™, providing precise control and easy integration into any embedded system. For a complete overview of compatible Servo Click boards, visit the Servo Click category.

More details

OFF

GO LOCAL

Company	Stock	Price

MIKROE products are not subject to U.S. tariffs. Under the U.S. HTSUS classification specified in Annex III, 9903.01.32, subdivision (v)(iii) of U.S. Note 2 and Executive Order 14257, they are exempt from ad valorem duty rates.

How does it work?

Micro Servo motor SG 180 degree is a compact and reliable actuator designed to provide precise angular motion in small embedded and robotic applications. It maintains a lightweight 9g form factor with high torque performance and efficient control characteristics. This servo motor offers a full 180-degree rotation range, allowing smooth movement of 90 degrees in each direction, which makes it ideal for applications requiring flexible and controlled positioning. It uses a digital control mechanism for more accurate response and stable holding torque compared to analog versions, ensuring consistent operation under various loads.

The servo can be easily driven using standard PWM signals and is compatible with most microcontroller platforms, such as PIC, STM32, and others, without the need for additional motor drivers or feedback systems. Built with a durable POM gear set, it delivers long operational life and reliable performance even in repetitive motion applications. With an operating voltage of 4.8V, stall torque of approximately 1.8kg/cm, and an operating temperature range between 0°C and 55°C, this servo provides versatility for a wide range of use cases including RC vehicles, robotic arms, automation systems, and DIY electronics.

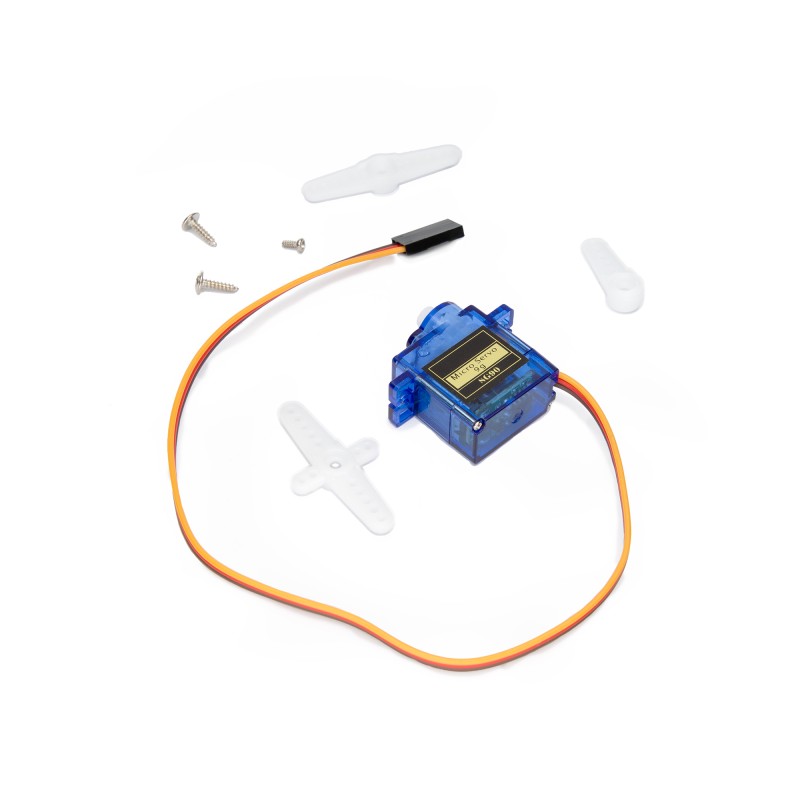

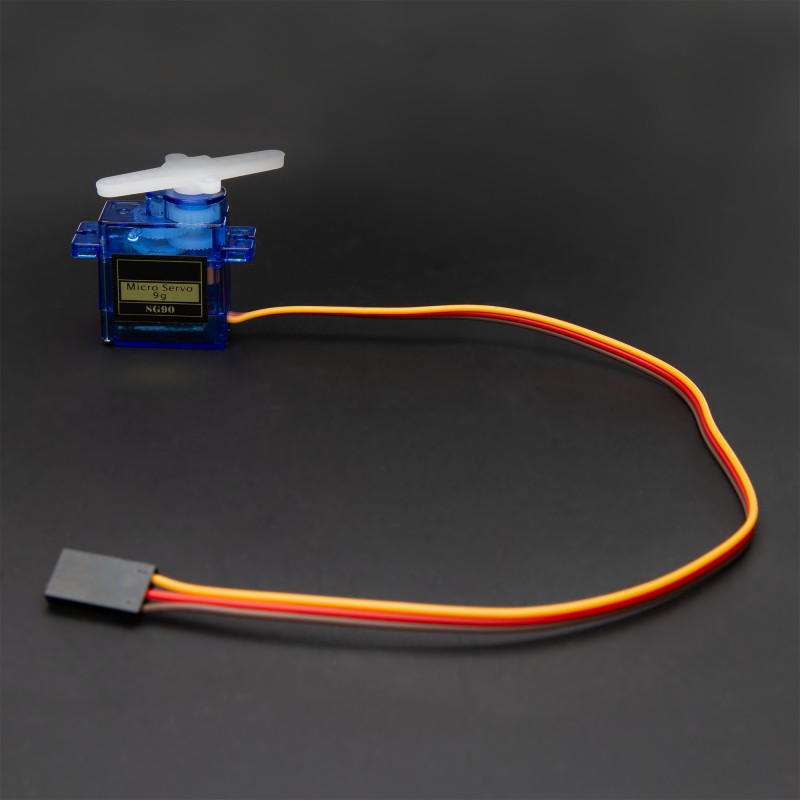

The Micro Servo motor SG 180 is powered through an external adapter and comes equipped with a 25cm cable terminated with a standard JR connector for quick integration. It is supplied with a set of three interchangeable servo horns and mounting hardware, providing flexibility for different mechanical configurations and project requirements.
