MIC24045 click carries MIC24045 I2C-programmable, high-efficiency, wide input range, 2A synchronous step-down regulator from Microchip.
The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over I2C interface with additional functionality provided by the following pins on the mikroBUS™ line: RST, INT.
This product is no longer in stock
Availability date:

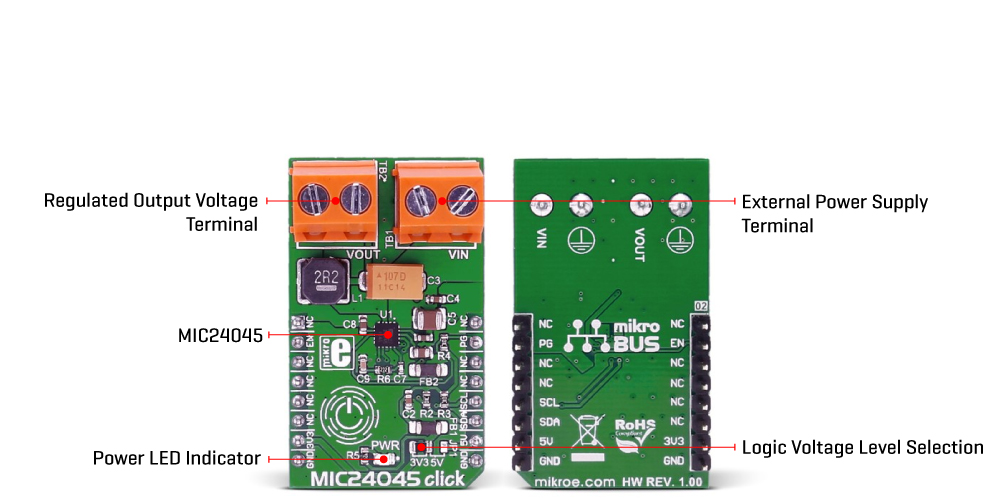

MIC24045 click carries MIC24045 I2C-programmable, high-efficiency, wide input range, 2A synchronous step-down regulator from Microchip. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over I2C interface with additional functionality provided by the following pins on the mikroBUS™ line: RST, INT.
The MIC24045 is a digitally programmable, 2A valley current-mode controlled regulator featuring an input voltage range from 4.5V to 19V.
The MIC24045 is perfectly suited for multiple voltage rail application environments, typically found in computing and telecommunication systems.
The MIC24045 has a thermal shutdown protection that prevents operation at excessive temperature. The MIC24045 features a Thermal Warning flag that is readable through the I2C interface (register polling is needed). The Thermal Warning flag signals the approaching of thermal shutdown, so that appropriate system-level countermeasures can be undertaken.
The click is designed to lower the voltage on the input from 4.5V-19V to 0.64V fixed minimum voltage. The same voltage is used for powering the MCP24045 IC (TB1 and TB2 connectors).
The voltage on the mikroBUS™ I2C pin can be either 3.3V or 5V, depending on the jumper position. The selected mikroBUS™ power supply is used only for the pull-ups on I2C lines.
Type
Buck
Applications
Servers, Data Storage, Routers and Base Stations, FPGAs, DSP and Low-Voltage ASIC Power
On-board modules
MIC24045 I2C-programmable, high-efficiency, wide input range synchronous step-down regulator
Key Features
4.5V to 19V Input Voltage Range, 2A (maximum), I2C Programmable Output Voltage, and more
Interface
GPIO,I2C
Feature
No ClickID
Compatibility
mikroBUS™
Click board size
M (42.9 x 25.4 mm)
Input Voltage
3.3V or 5V
This table shows how the pinout on MIC24045 click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Input Range | 4.5 | 19 | V | |
Output Current | 2 | A |
Code examples for MIC24045 click, written for MikroElektronika hardware and compilers are available on Libstock.
The following code snippet calls initialization functions, and then slowly decrements the voltage from maximum value down to the minimum.
01 void main() 02 { 03 system_init(); 04 mic_24045_init(0x50); 05 Delay_ms (100); 06 i = 21; 07 while (i) 08 { 09 write_1 = i*0.25; 10 mic_24045_write_vout (write_1); 11 GPIOC_ODR = 0x04; /* Sets EN pin to 1 */ 12 Delay_ms (1000); 13 14 read_2 = mic_24045_read_vout (); 15 FloatToStr (read_2, &uart_text); 16 17 if (read_2 > 1) 18 uart_text [5] = 0; 19 20 UART_Write_Text ("rn"); 21 UART_Write_Text (uart_text); 22 23 GPIOC_ODR = 0x00; 24 Delay_ms (1000); 25 i--; 26 } 27 }
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
