LTE Cat.1 6 Click

How does it work?

LTE Cat.1 6 Click is based on the SIM7600SA, an LTE Cat 1 module from SIMCom suitable for LTE, UMTS, and GSM networks with global coverage (this version covers regions like Europe, South America, Australia, and New Zealand). The SIM7600SA supports LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE wireless communication modes and has a maximum 10Mbps downlink rate and 5Mbps uplink rate. Besides, it also supports multiple LTE bands (B1/B3/B5/B7/B8/B20/B38/B40/B41), auxiliary (diversity) for bands B1, B5, and B8, as well as 900/1800MHz GSM support. The module integrates an optional multi-constellation GNSS support with multiple built-in network protocols and supports drivers for main operation systems (USB driver for Windows, Linux, and Android) and AT commands. Based on its broad features, this Click board™ is suitable for a wide range of IoT applications such as telematics, surveillance devices, CPE, industrial routers, remote diagnostics, and more.

Communication between the SIM7600SA and the host MCU is made through a UART interface, using standard UART RX and TX pins and hardware flow control pins (CTS/RTS/RI - Clear to Send/Ready to Send/Ring Indicator) for efficient data transfer. The module defaults to a communication speed of 115200bps, allowing for seamless data exchange over AT commands. This board is also equipped with all the necessary components and circuitry for an audio interface supported by the module family. However, in the current version, with the module placed on the board, the audio interface is not supported. As a result, those components have not been soldered onto the board.

In the case of the audio interface, the module’s audio interface operates through the NAU88C10, a mono audio voice codec configurable via the I2C interface. This setup works with a jack on the back of the board designed for CTIA standard headphones, which are commonly used in modern smartphones and feature a combined audio and microphone connector. This standard ensures compatibility with a wide range of headphones and headsets.

This Click board™ also includes a USB Type C connector for both power and data transfer, which is compliant with the USB 2.0 specification (peripheral only). In addition to this interface, the board also features a USB FW upgrade switch on the back of the board labeled USB BOOT to manage firmware upgrades. This switch has positions 0 for normal operation and 1 for firmware upgrades over USB, ensuring a straightforward upgrade process.

The LTE Cat.1 6 Click includes several additional functionalities that enhance its usability and control. The PWR button allows users to easily power the module on or off, while the RESET button provides a quick way to reset the module. These functions can also be controlled digitally via the mikroBUS™ pins PWR and RST, offering greater flexibility. Moreover, these controls have dedicated test points for easier debugging and testing. The board also features three visual indicators to provide real-time status updates.

The first red NET LED indicates the current network status of the module. When the LED is always on, the device is either searching for a network or connected to a call in VoLTE versions. A faster blinking pattern (200ms ON/OFF) indicates data transmission or 4G network registration. If the LED blinks slowly with an 800ms ON/OFF pattern, the module is registered on a 2G or 3G network. When the LED is off, the device is either powered OFF or in sleep mode. The second yellow STAT LED indicates the module's power status, which stays off when the module is OFF and turns ON when the module is powered on or firmware ready. The third green ISINK LED indicator is a user-configurable LED that allows users to customize specific notifications. Additionally, the brightness of this LED can be adjusted by configuring the current supplied to it, ranging from 0 to 40mA, which directly controls the intensity of its illumination.

The board features three u.Fl connectors for LTE, Auxiliary-diversity, and optional GNSS antennas that MIKROE offers, like the LTE Flat Rotation Antenna and Active GPS Antenna combined with an IPEX-SMA cable for flexible and efficient connectivity options. In addition, the user can easily choose the power supply of the optional GNSS antenna by choosing between 3.3V and 5V on the GNSS ANT jumper. The board is equipped with a micro SIM card holder that supports both 1.8V and 3.0V uSIM cards, ensuring compatibility with a wide range of cellular networks and allowing users to select the most appropriate service provider for their particular use case, and one optional microSD card slot for up to 32GB SD cards.

This Click board™ can operate with both 3.3V and 5V logic voltage levels selected via the VCC SEL jumper. Since the SIM7600SA module operates at 3.8V, logic-level translators, the TXB0106 and PCA9306, are also used for proper operation and an accurate signal-level translation. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.

Specifications

Pinout diagram

This table shows how the pinout on LTE Cat.1 6 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
Module Power-ON	PWR	1	AN	PWM	16	RI	Ring Indicator
Reset / ID SEL	RST	2	RST	INT	15	CTS	UART CTS
UART RTS / ID COMM	RTS	3	CS	RX	14	TX	UART TX
	NC	4	SCK	TX	13	RX	UART RX
	NC	5	MISO	SCL	12	SCL	I2C Clock
	NC	6	MOSI	SDA	11	SDA	I2C Data
Power Supply	3.3V	7	3.3V	5V	10	5V	Power Supply
Ground	GND	8	GND	GND	9	GND	Ground

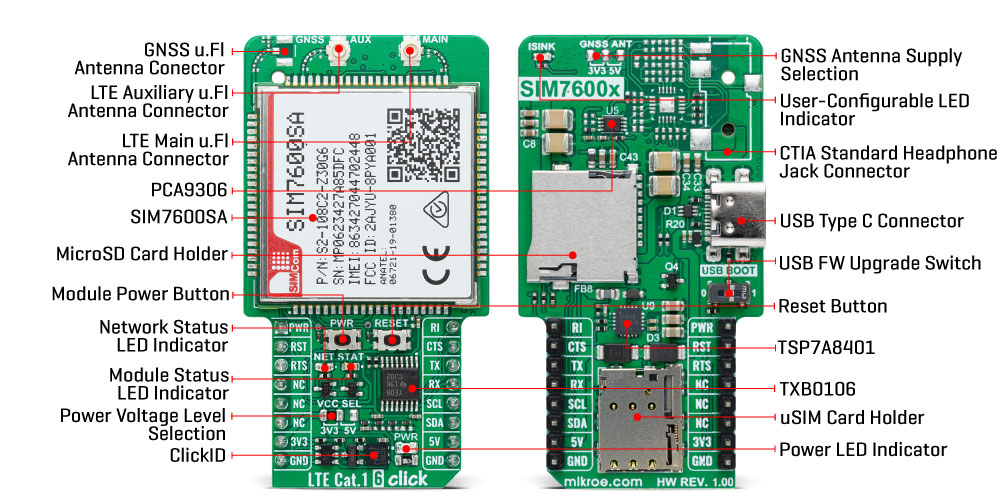

Onboard settings and indicators

LTE Cat.1 6 Click electrical specifications

Software Support

We provide a library for the LTE Cat.1 6 Click as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.

Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on MIKROE github account.

Library Description

This library contains API for LTE Cat.1 6 Click driver.

Key functions

• ltecat16_set_sim_apn This function sets APN for SIM card.

• ltecat16_send_sms_text This function sends text message to a phone number.

• ltecat16_send_cmd This function sends a specified command to the Click module.

Example Description

Application example shows device capability of connecting to the network and sending SMS or TCP/UDP messages using standard "AT" commands.

void application_task ( void )
 {
     switch ( app_state )
     {
         case LTECAT16_POWER_UP:
         {
             if ( LTECAT16_OK == ltecat16_power_up( &ltecat16 ) )
             {
                 app_state = LTECAT16_CONFIG_CONNECTION;
                 log_printf( &logger, ">>> APP STATE - CONFIG CONNECTION <<<rnn" );
             }
             break;
         }
         case LTECAT16_CONFIG_CONNECTION:
         {
             if ( LTECAT16_OK == ltecat16_config_connection( &ltecat16 ) )
             {
                 app_state = LTECAT16_CHECK_CONNECTION;
                 log_printf( &logger, ">>> APP STATE - CHECK CONNECTION <<<rnn" );
             }
             break;
         }
         case LTECAT16_CHECK_CONNECTION:
         {
             if ( LTECAT16_OK == ltecat16_check_connection( &ltecat16 ) )
             {
                 app_state = LTECAT16_CONFIG_EXAMPLE;
                 log_printf( &logger, ">>> APP STATE - CONFIG EXAMPLE <<<rnn" );
             }
             break;
         }
         case LTECAT16_CONFIG_EXAMPLE:
         {
             if ( LTECAT16_OK == ltecat16_config_example( &ltecat16 ) )
             {
                 app_state = LTECAT16_EXAMPLE;
                 log_printf( &logger, ">>> APP STATE - EXAMPLE <<<rnn" );
             }
             break;
         }
         case LTECAT16_EXAMPLE:
         {
             ltecat16_example( &ltecat16 );
             break;
         }
         default:
         {
             log_error( &logger, " APP STATE." );
             break;
         }
     }
 }

The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on MIKROE github account.

Other MIKROE Libraries used in the example:

• MikroSDK.Board
• MikroSDK.Log
• Click.LTECat16

Additional notes and informations

Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.

mikroSDK

This Click board™ is supported with mikroSDK - MIKROE Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.

For more information about mikroSDK, visit the official page.
