Shop Click Boards Load Cell 7 Click front

View larger

Load Cell 7 Click

PID: MIKROE-5276

Weight: 19 g

Status:

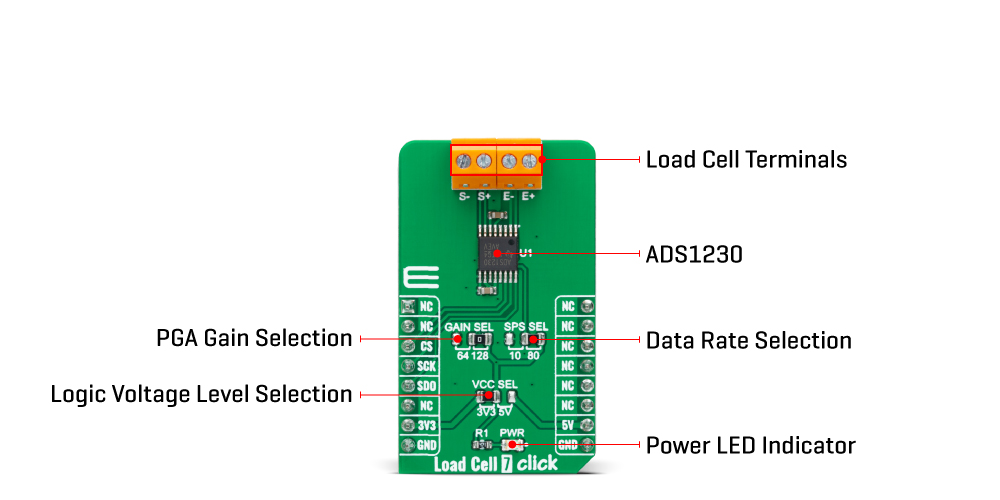

Type Force Applications Can be used for bridge sensor applications, including industrial process control, weigh scales, and strain gauges On-board modules ADS1230 - 20-bit delta-sigma analog-to-digital converter (ADC) from Texas Instruments Key Features High precision, outstanding noise performance, selectable gain and data rate, complete front-end for bridge sensor, low power consumption, and more Interface SPI Compatibility mikroBUS Click board size M (42.9 x 25.4 mm) Input Voltage 3.3V or 5V

OFF

QTY	%	PPU
2	5%	$28.50
5	10%	$27.00
10+	15%	$25.50

Looking for a customized version of this product?

If you have other questions about this product contact us.

Specification

Type	Force

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
