LED Ring 2 Click

MIKROE-5634

18 g

Status:

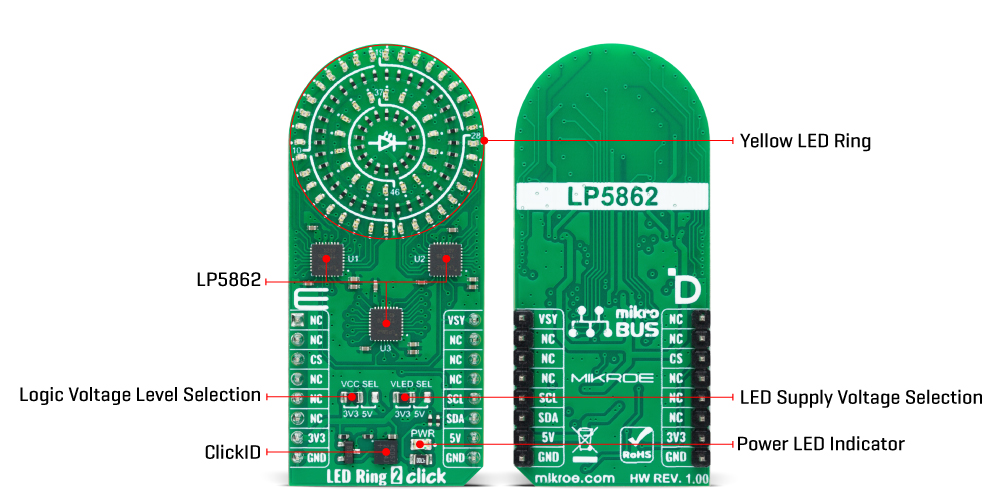

Type I2C,LED Matrix Applications Can be used for animation and indication purposes for amusement products, LED status signalization, home automation projects, and more On-board modules LP5862 - LED matrix driver from Texas Instruments Key Features 18 constant current sinks, 54 LEDs arranged in a circular pattern for animation and indication purposes, wide operating voltage, high performance, high efficiency PWM dimming, low power consumption, fully addressable SRAM to minimize data traffic, I2C interface, and more Interface I2C Compatibility mikroBUS Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V or 5V


OFF

2 5 10

Quantity discount

QTY % PPU
2 5% $51.30
5 10% $48.60
10+ 15% $45.90

$54.00

SAVE:

Was: $54.00

Total Save:

Type LED Matrix,I2C

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
