MIKROE-1882
26 g
Status:
IR reflect click carries a GP2S700HCP reflective photointerrupter and an onboard potentiometer. On this type of photointerrupter the infrared emitter and receiver are facing the same direction.
This product is no longer in stock
Availability date:

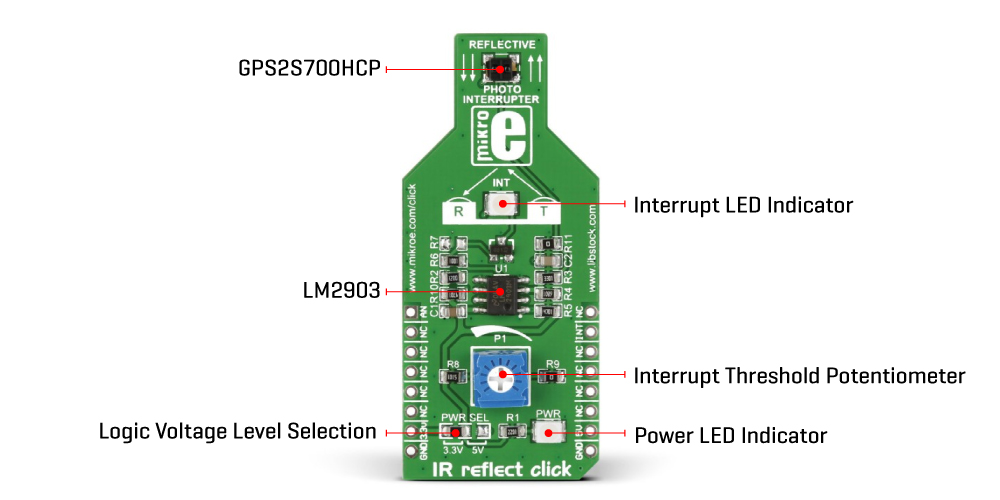

IR reflect click carries a GP2S700HCP reflective photointerrupter and an onboard potentiometer. On this type of photointerrupter the infrared emitter and receiver are facing the same direction; the infrared beam from the emitter gets bounced back to the receiver when an object is placed within the detecting range of the sensor. IR reflect click communicates with the target board microcontroller through mikroBUS™ AN and INT pins (an onboard potentiometer sets the Interrupt threshold). It’s designed to use either a 3.3V or 5V power supply.
| Type | Optical |
| Applications | These sensors are used to detect an object’s presence or motion, such as a piece of paper passing through a printer |
| On-board modules | GP2S700HCP reflective photointerrupter and an onboard potentiometer |
| Key Features | Infrared LED and phototransistor |
| Interface | Analog,GPIO |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
