IR Beacon Click is a compact add-on board that provides a beaconing capability to your application. This board features nine VSMB2948SLs, high-speed infrared emitting diodes from Vishay Semiconductors. This board functions as a beacon device, transmitting infrared rays at a wide angle over nine VSMB2948SL LEDs, which nearby infrared receivers, such as the one on IR Click, can detect. The IR LEDs are packed in a half-circle way allowing the transmitted infrared rays to cover a broader space in front of this Click board™. This Click board™ makes the perfect solution for high pulses current operation, such as remote controls, robots, and more.
IR Beacon Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
This product is no longer in stock
Availability date:
IR Beacon Click is based on the nine VSMB2948SLs, high-speed infrared emitting diodes from Vishay Semiconductors. The VSMB2948SL is a 940nm wavelength infrared emitting diode in a GaAIAs multi-quantum well (MQW) technology with high radiant power, high radiant intensity, and high speed molded in a clear untinted package with a lens. This kind of architecture allows the IR wave to have a half-intensity angle of ±25 degrees and a range of up to half of a meter that can be increased by stacking multiple IR Beacon Clicks onto the same mikroBUS™ socket.
The IR Beacon uses either UART or PWM lines of the mikroBUS™ socket, selected over the TX SEL jumpers, with PWM chosen by default, to allow the host MCU to transmit a signal to a target receiver. The mainboard MCU drives the infrared diodes through the MOD pin, providing a carrier signal which can be adjusted to match the frequency.
This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the PWR SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. However, the Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used, as a reference, for further development.
Type
Optical
Applications
Can be used for high pulses current operation, such as remote controls, robots, and more
On-board modules
VSMB2948SL - high-speed infrared emitting diodes from Vishay Semiconductors
Key Features
Beaconing capability, transmitting infrared rays in a wide angle, nine high speed IR LEDs with a range of up to 0.5 meter, high radiant power, intensity with a peak wavelengths of 940nm, selectable pin for signal transmission, and more
Interface
GPIO,PWM,UART
ClickID
No
Compatibility
mikroBUS
Click board size
L (57.15 x 25.4 mm)
Input Voltage
3.3V or 5V
This table shows how the pinout on IR Beacon Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

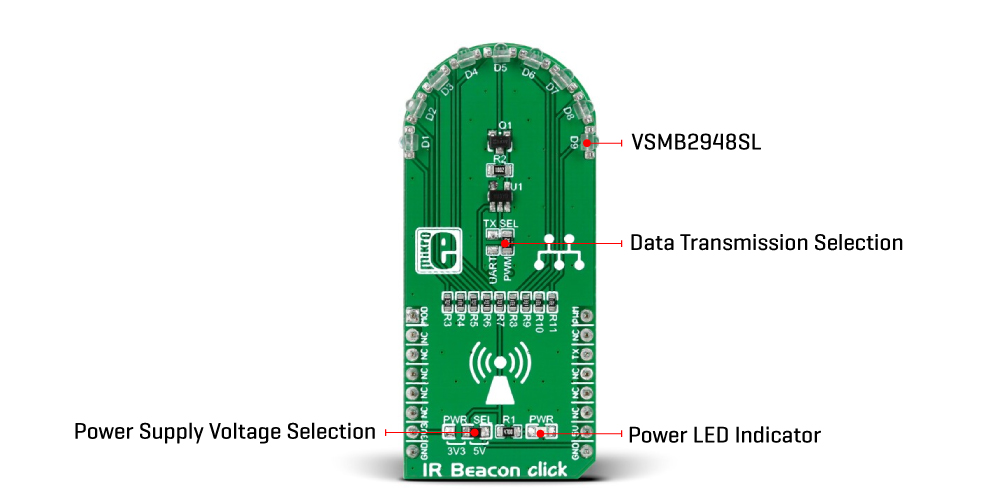

Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
JP1 | PWR SEL | Left | Logic Level Voltage Selection 3V3/5V: Left position 3V3, Right position 5V |
JP2 | TX SEL | Right | Data Transmission Selection UART/PWM: Left position UART, Right position PWM |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | - | 3.3 | - | V |
IR LED Peak Wavelength | - | - | 940 | nm |
IR Beacon Range | - | - | 0.5 | m |
We provide a library for the IR Beacon Click as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager(recommended way), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for IR Beacon Click driver.
Key functions
Enable MOD function
Disable MOD function
Reset MOD function
Example Description
This application sets the brightness on Leds.
void application_task ( void )
{
irbeacon_enable_mod( &irbeacon );
for ( duty_cycle = 250; duty_cycle < 3000; duty_cycle += 250 )
{
irbeacon_set_duty_cycle( &irbeacon, duty_cycle );
Delay_ms( 500 );
}
irbeacon_disable_mod( );
Delay_ms( 1000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager(recommended way), downloaded from our LibStock™ or found on Mikroe github account.
Other Mikroe Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
This Click board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
For more information about mikroSDK, visit the official page.
