H-Bridge 17 Click

How does it work?

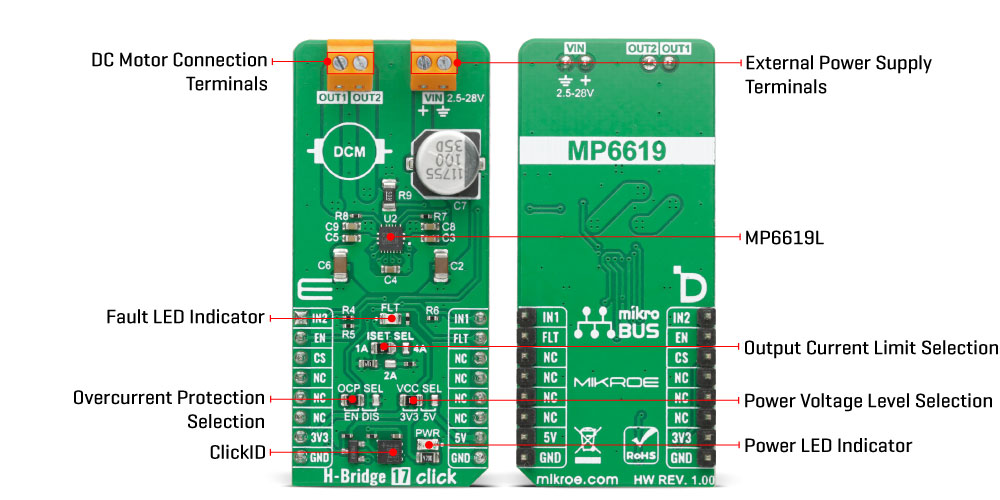

H-Bridge 17 Click is based on the MP6619L, an H-bridge motor driver IC from MPS designed for driving brushed DC motors, solenoids, and actuators. The MP6619L operates from an external supply voltage ranging between 2.5V and 28V via the VIN terminal and delivers high motor currents, ensuring reliable performance even under demanding conditions. This Click board™ is ideal for applications requiring precise motor control and robust safety mechanisms, offering reliable performance in industrial, automotive, and consumer settings.

This Click board™ provides flexible control through several pins on the mikroBUS™ socket. The IN1 and IN2 pins control the output channels (OUT1 and OUT2), while the EN pin turns the motor driver IC ON or OFF. For added customization, the MP6619L features a configurable current limit that can be set using the ISET SEL jumper. This jumper allows users to select between three current limit values: 1A, 2A, or 4A. For 1A and 2A, the jumper is placed in the corresponding position, while for 4A, the jumper position must be left open, requiring the removal of a specific resistor.

H-Bridge 17 Click also incorporates several safety and diagnostic features. The FLT pin acts as a fault indicator, and it works in combination with a red FLT LED to signal if any protection circuits, such as overcurrent, overtemperature, overvoltage, or undervoltage lockout, are activated. This ensures that users are immediately informed of fault conditions, enabling quick troubleshooting. Additionally, the overcurrent protection (OCP) can be turned ON or OFF using the OCP SEL jumper, providing further flexibility in configuring the board to suit specific application requirements.

This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.

Specifications

Pinout diagram

This table shows how the pinout on H-Bridge 17 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
OUT2 Channel Control	IN2	1	AN	PWM	16	IN1	OUT1 Channel Control
Chip Enable	EN	2	RST	INT	15	FLT	Fault Interrupt
ID COMM	CS	3	CS	RX	14	NC
	NC	4	SCK	TX	13	NC
	NC	5	MISO	SCL	12	NC
	NC	6	MOSI	SDA	11	NC
Power Supply	3.3V	7	3.3V	5V	10	5V	Power Supply
Ground	GND	8	GND	GND	9	GND	Ground

Onboard settings and indicators

H-Bridge 17 Click electrical specifications

Software Support

H-Bridge 17 Click demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK's open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.

Example Description

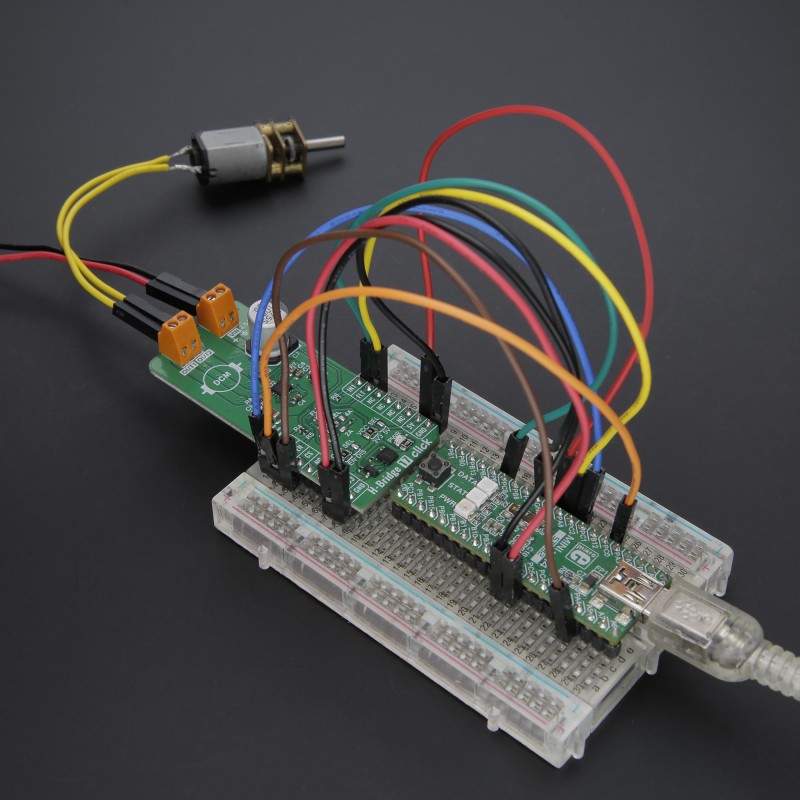

This example demonstrates the use of the H-Bridge 17 Click board by driving the motor in both directions with braking and freewheeling.

Key Functions

• hbridge17_cfg_setup Config Object Initialization function.
• hbridge17_init Initialization function.
• hbridge17_set_out_state This function is used to set the output state of the H-Bridge 17 Click board.
• hbridge17_ic_enable This function enables driver IC by setting the EN (RST) pin on the high level of the H-Bridge 17 Click board.
• hbridge17_fault_indication This function reads the state of the FLT (INT) pin of the H-Bridge 17 Click board.

Application Init

Initializes the driver and enable H-Bridge driver IC.

Application Task

The demo application drives the motor in both directions with coasting and braking in between, every state lasts 5 seconds.

Application Output

This Click board can be interfaced and monitored in two ways:

• Application Output - Use the "Application Output" window in Debug mode for real-time data monitoring. Set it up properly by following this tutorial.
• UART Terminal - Monitor data via the UART Terminal using a USB to UART converter. For detailed instructions, check out this tutorial.

Additional Notes and Information

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.
