GNSS Click is a compact add-on board that provides fast positioning capability. This board features the L86, an ultra-compact GNSS Patch-on-Top (POT) module from Quectel Wireless Solutions. It is a concurrent GNSS receiver with a multi-GNSS engine that provides simultaneous GPS, GLONASS, Galileo, and QZSS open-service L1 reception capability. Combining advanced AGPS called EASY™ and proven Alwayslocate™ technology, L86 achieves the highest performance and fully meets the industrial standard. This Click board™ is suitable for acquisition and tracking and represents an ideal product for automotive, consumer, and industrial tracking applications.
GNSS Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
This product is no longer in stock
Availability date:
GNSS Click is based on the L86, a compact GNSS module from Quectel Wireless Solutions. The L86 supports the L1 band only (1575.42MHz for GPS and 1601.71MHz for GLONASS), with 33 tracking and 99 acquisition channels. Under L86's hood is the MediaTek MT3333 chipset that can achieve the perfect performance. The module is an ultra-low tracking power consumption device with a high sensitivity of -167dBm while tracking and -149dBm in acquisition mode with a reacquisition time of less than 1 second. The greater number of visible satellites increases horizontal positioning accuracy (<2.5m CEP) and decreases acquisition time (<5s TTFF with a warm start). GNSS Click supports anti-jamming and better positioning under signal conditions with onboard LNA for better sensitivity, multi-tone active interference canceller, and balloon mode for high altitudes up to 80km.
The L86 can automatically predict satellite orbits from data stored in its internal flash (EASY™ technology). Also, it can adaptively adjust its ON/OFF time to balance positioning accuracy and power consumption (AlwaysLocate™ technology). To save power consumption, GNSS Click comes with VBAT connection pads and a backup power supply selection jumper for connecting an external power supply that can supply power to the module's SRAM memory. This memory serves for storing GPS information for quick Start-Up sequences. Periodic Standby mode can periodically control the board's power on/off time to reduce average power consumption, configurable using the PMTK command. GNSS Click will enter the Periodic mode after successfully fixing the position.
For communication with the host microcontroller, L86 uses the UART interface with commonly used UART RX and TX pins as its default communication protocol operating at 9600bps by default configuration to transmit and exchange data. In addition, the Click board™ features other functions accessible through mikroBUS™ signals, such as Force on (FON) and Reset (RST). A logic high state on the FON pin will force the module to wake from Backup mode, while the RST pin provides a general reset function.
In addition to the possibility of using the built-in POT antenna, this Click board™ can also use an external active antenna offered by MIKROE, thanks to the onboard u.FL connector. In addition to precise positioning, the GNSS Click has an accurate timing signal indicated via a red LED indicator marked as PPS and an AADET LED, which serves as an active antenna detection indicator. In addition to the indicator, the NMEA message will include the detection result and notification of different external active antenna statuses.
This Click board™ can only be operated with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used as a reference for further development.
Type
GPS/GNSS
Applications
Can be used for both acquisition and tracking for automotive, consumer, and industrial tracking applications
On-board modules
L86 – GNSS module from Quectel Wireless Solutions
Key Features
Multi-GNSS engine for GPS, GLONASS, Galileo and QZSS, supports L1 GNSS band, built-in LNA for better sensitivity, low power consumption, high performance, automatic antenna switching, anti-jamming, and more
Interface
GPIO,UART
Feature
No ClickID
Compatibility
mikroBUS™
Click board size
M (42.9 x 25.4 mm)
Input Voltage
3.3V
This table shows how the pinout on 9DOF 2 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|

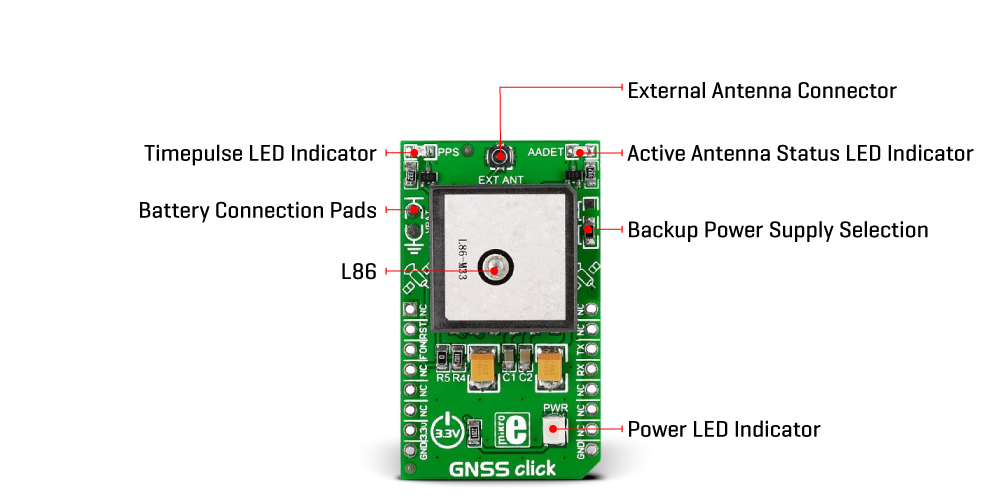

LD1 | PWR | - | Power LED Indicator |
LD2 | PPS | - | Timepulse LED Indicator |
LD3 | AADET | - | Active Antenna Detection LED Indicator |
J1 | - | Lower | Backup Power Supply Selection Battery/VCC: Upper position Battery, Lower Position VCC |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | - | 3.3 | - | V |
Operating Frequency Range | 1575.42 | - | 1601.71 | MHz |
Maximum Altitude | - | 18 | - | km |
Acquisition Sensitivity | - | -149 | - | dBm |
Tracking Sensitivity | - | -167 | - | dBm |
TTFF @-130dBm without EASY™ | - | 35 | - | sec |
We provide a library for the GNSS Click as well as a demo application (example), developed using Mikroe compilers. The demo can run on all the main Mikroe development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for GNSS Click driver.
Key functions
Wake-up module function
Generic read function.
Generic write function.
Example Description
This example reads and processes data from GNSS clicks.
void application_task ( void )
{
gnss_process( );
parser_application( current_parser_buf );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manage r(recommended), downloaded from our LibStock™ or found on Mikroe github account.
Other Mikroe Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all Mikroe compilers.
This Click board™ is supported with mikroSDK - Mikroe Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
For more information about mikroSDK, visit the official page.
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
