MIKROE-1895
26 g
Status:

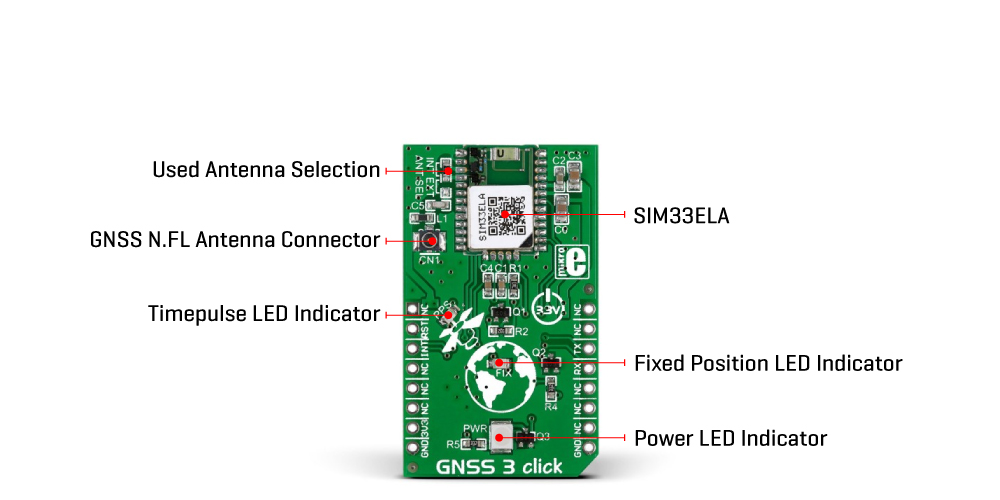

GNSS3 click carries SIMCom’s SIM33ELA standalone GNSS module with an integrated antenna (and a connector for an external one).
This product is no longer in stock
Availability date:
GNSS3 click carries SIMCom’s SIM33ELA standalone GNSS module with an integrated antenna (and a connector for an external one). GNSS stands for Global Navigation Satellite System, an umbrella term that describes both the United States GPS and the Russian GLONASS global positioning systems. The SIM33ELA module has MTK’s high sensitivity navigation engine. It features EPO™ orbit prediction, AGPS, SBAS ranging (WAAS, EGNOS, GAGAN, MSAS). GNSS3 click communicates with the target MCU through mikroBUS UART pins (RX, TX), with additional functionality provided through RST and INT pins. The board uses a 3.3V power supply.
| Type | GPS/GNSS |
| Applications | Navigation devices based on GPS and GLONASS global positioning systems |
| On-board modules | SIMCom’s SIM33ELA with integrated antenna |
| Key Features | MTK high sensitivity navigation engine. TTFF: 28 seconds (cold), 26s (warm), less than 1 (hot). Sensitivity: -165 dBm tracking; -160 dBm reacquisition; -146 dBm cold start |
| Interface | GPIO,UART |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
| Input Voltage | 3.3V |
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
