ETH WIZ Click is a compact add-on that contains an Ethernet controller with a hardwired TCP/IP internet protocol offload engine. This board features the W5500, a fully featured 10/100 Ethernet controller from WIZnet that provides performance, flexibility, ease of integration, and system cost control. It complies with the IEEE802.3 (Full/Half-Duplex 10BASE-T and 100BASE-TX) Ethernet protocol, supports eight independent sockets simultaneously, power down mode, and Wake-on-LAN over UDP. It also includes an integrated Ethernet MAC and PHY with 16KB for both TX and RX socket buffer blocks. This Click board™ is suitable for industrial automation systems, IP set-top boxes, VoIP/Video phone systems, security systems, home network and gateways, test and measurement equipment, and more.
This product is no longer in stock
Availability date:

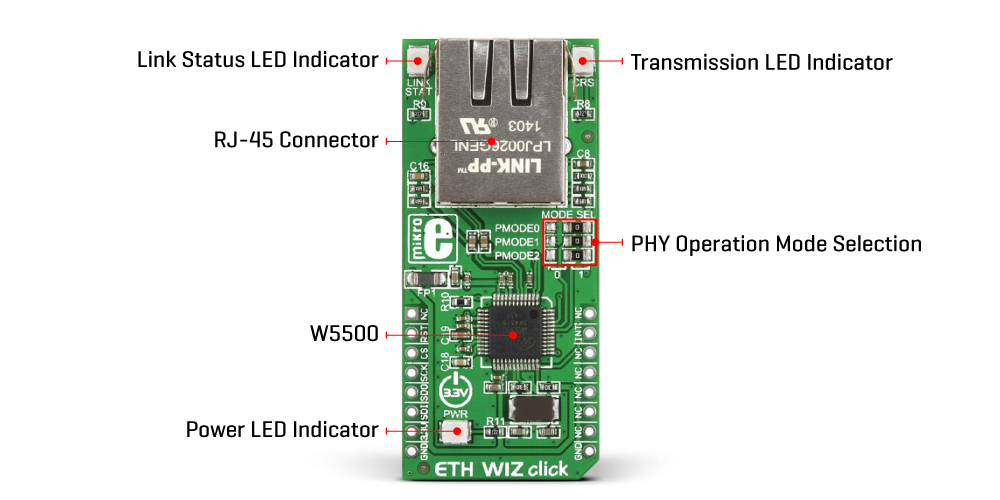

ETH WIZ Click is based on the W5500, a fully-featured high-performance 10/100 Ethernet controller from WIZnet designed for embedded applications where performance and flexibility are required. The W5500 module employs a variety of solutions to reduce the target MCU’s memory load and enable a stable and secure Internet connection. High-speed network communications are realized through a serial interface in variable-length data mode configuration. The module has 32KB of internal memory for TX/RX buffers, where each block is register-configurable. Reduced power consumption is achieved with Wake on LAN and power-down modes. Automatic handshaking, retransmitting on collision, and automatic rejection of erroneous packets are also supported. The W5500 also supports HP Auto-MDIX, allowing direct connections or cross-over LAN cables on the onboard RJ-45 connector.
This Click board™ communicates with the target MCU using an SPI/QSPI serial interface with a clock rate of up to 80MHz, supporting the most common SPI modes, SPI Mode 0 and 3. Besides, it has three PMODE0-2 selectable jumpers for selecting the PHY network operating mode. As a default, they are populated with 0-ohm resistors at position 1, which means both 10BASE-T and 100BASE-Tfull/Half-duplex capable, and Auto-negotiation enabled.
This ETH Wiz Click can reset the W5500 through a hardware reset pin labeled RST and also provides a programmable interrupt feature on the INT pin used for some features like Wake on LAN. From the RJ-45 sides, two LEDs labeled LINK STAT and CRS stands for visual network status indicators: Link and Transimission indicators.
This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels.
Type
Ethernet
Applications
Can be used for industrial automation systems, IP set-top boxes, VoIP/Video phone systems, security systems, home network and gateways, test and measurement equipment, and more
On-board modules
W5500 - fully-featured high-performance 10/100 Ethernet controller from WIZnet
Key Features
Hardwired TCP/IP protocols, power-down mode, wake-on-LAN over UDP, high speed SPI interface, auto-negotiation feature, network LED indicators, reduced power consumption, and more
Interface
GPIO,SPI
Feature
No ClickID
Compatibility
mikroBUS™
Click board size
L (57.15 x 25.4 mm)
Input Voltage
3.3V
This table shows how the pinout on ETH WIZ Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
LD2 | CRS | - | Transmission LED indicator |
LD3 | LINK STAT | - | Link Status LED Indicator |
J1 | PHMODE0 | Right | PHY operation mode sellection: Left position Half-duplex, Right position Full-duplex |
J2 | PHMODE1 | Right | PHY operation mode sellection: Left position 10BASE-T, Right position 100BASE-T |
J3 | PHMODE2 | Right | PHY operation mode sellection: Left position Auto-negotiation disabled, Right position Auto-negotiation enabled |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | - | 3.3 | - | V |
Ethernet Bandwidth | - | 10/100 | - | Mbps |
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
