DIGI IN 2 Click

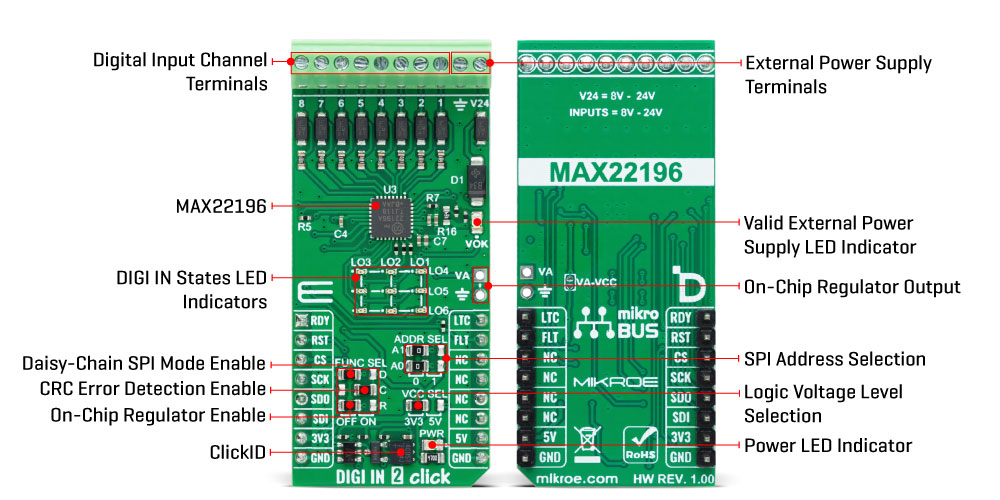

Type Port expander Applications Ideal for Programmable Logic Controllers (PLC), factory automation, and process control systems On-board modules MAX22196 - octal industrial sink/source digital input from Analog Devices Key Features Eight inputs individually configurable as sink or source, SPI serial interface, compliance with the IEC 61131-2 standard, programmable glitch/debounce filter, optional 16-bit down-counter on every channel, extensive diagnosis, addressable or daisy-chain SPI, low power dissipation, LED matrix indication, CRC error detection, on-chip regulator output, and more Interface SPI ClickID Yes Compatibility mikroBUS™ Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V or 5V,External
