Diff Press 5 Click

PID: MIKROE-6527

Weight: 19 g

Status:

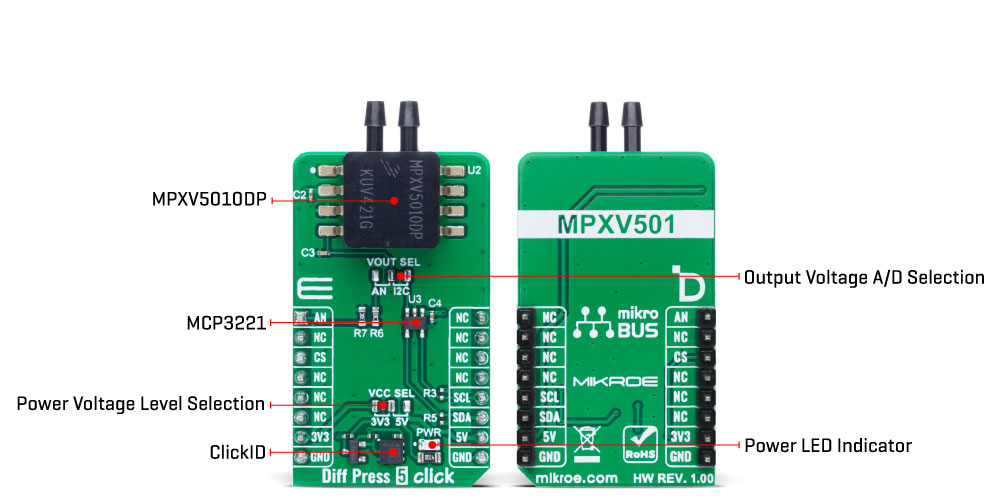

Type Pressure Applications Ideal for HVAC systems, respiratory monitoring, process control, liquid level sensing, and other applications requiring precise pressure measurement On-board modules MPXV5010DP - dual port differential pressure type sensor from NXP Key Features High-precision differential pressure measurement, high sensitivity, integrated temperature compensation and calibration, selectable output mode, operates at different voltage levels, industrial-grade tubing compatibility, durable epoxy unibody and thermoplastic surface-mount package, and more Interface Analog,I2C Feature ClickID Compatibility mikroBUS™ Click board size M (42.9 x 25.4 mm) Input Voltage 3.3V or 5V

OFF

QTY	%	PPU
2	5%	$61.75
5	10%	$58.50
10+	15%	$55.25

Looking for a customized version of this product?

If you have other questions about this product contact us.

Specification

Type	Pressure

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
