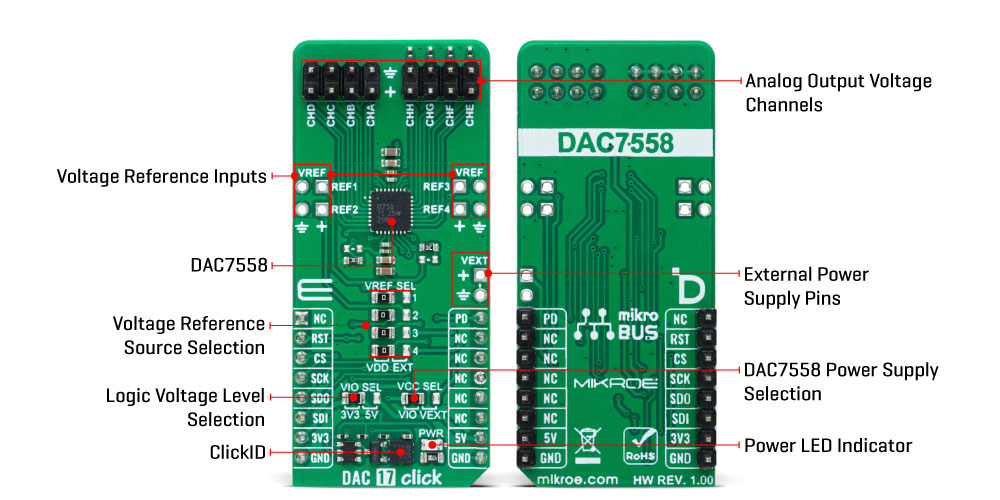

DAC 17 Click

Type DAC Applications Ideal for digital gain and offset adjustment, programmable voltage and current sources, programmable attenuators, industrial process control, and more On-board modules DAC7558 - octal-channel voltage output DAC from Texas Instruments Key Features 12-bit linearity and monotonicity, rail-to-rail voltage output, rapid settling time of 5µs, ultralow glitch and crosstalk, low power consumption, power-down feature, SPI-compatible interface, selectable power supply source, and more Interface SPI ClickID Yes Compatibility mikroBUS™ Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V or 5V
