Current 9 Click

How does it work?

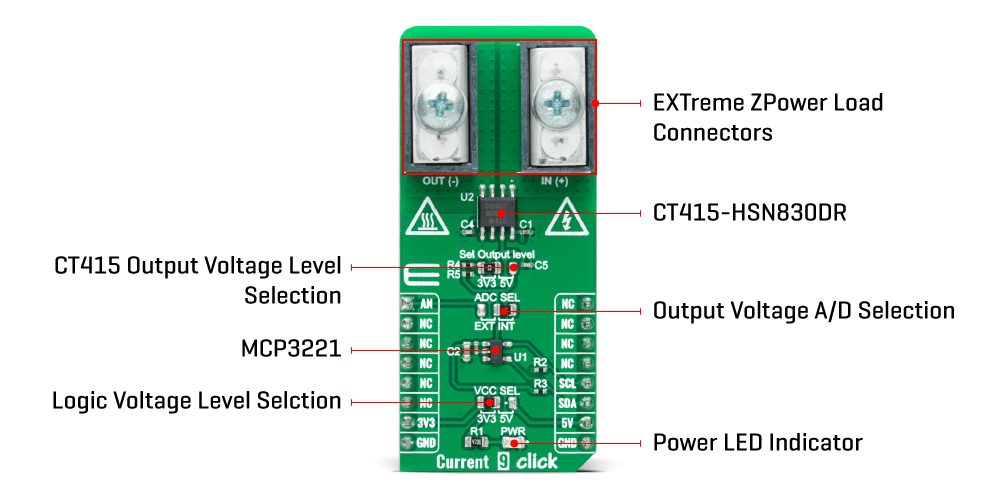

Current 9 Click as its foundation uses the CT415-HSN830DR, an XtremeSense® TMR current sensor providing high-accuracy current measurements from Crocus Technology. The CT415-HSN830DR comes with an integrated current carrying conductor (CCC) that handles current from 0A up to 30A. It has high sensitivity and a wide dynamic range with excellent accuracy (low total output error) across temperature range from –40°C to +85°C making it suitable for many consumer, enterprise, and industrial applications.

When current flows through the CCC, the XtremeSense® TMR sensors inside the chip sense the field, generating a differential voltage signal that goes through the analog front-end to output a current measurement with less than ±1% full-scale total output error. The CT415-HSN830DR is designed to enable a fast response time for the current measurement. In addition, the user is provided with the option of selecting the output voltage level of the sensor performed by the onboard SMD jumper by populating it to an appropriate position marked as 3V3 or 5V. Even with high bandwidth of 1MHz, the CT415 consumes minimal power.

The output signal of the CT415-HSN830DR can be converted to a digital value using MCP3221, a successive approximation A/D converter with a 12-bit resolution from Microchip using a 2-wire I2C compatible interface, or can be sent directly to an analog pin of the mikroBUS™ socket labeled as AN. Selection can be performed by onboard SMD jumper labeled as ADC SEL, placing it to an appropriate position marked as EXT and INT.

Also, this Click board™ should be connected in series with the load. The current is measured by two onboard terminal connectors, one terminal block for the positive and the other for the negative current input.

This Click board™ can operate with both 3.3V and 5V logic voltage levels selected via the VCC SEL jumper. This way, it is allowed for both 3.3V and 5V capable MCUs to use the communication lines properly. However, the Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used, as a reference, for further development.

Specifications

Pinout diagram

This table shows how the pinout on Current 9 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
Analog Signal	AN	1	AN	PWM	16	NC
	NC	2	RST	INT	15	NC
	NC	3	CS	RX	14	NC
	NC	4	SCK	TX	13	NC
	NC	5	MISO	SCL	12	SCL	I2C Clock
	NC	6	MOSI	SDA	11	SDA	I2C Data
Power Supply	3.3V	7	3.3V	5V	10	5V	Power Supply
Ground	GND	8	GND	GND	9	GND	Ground

Onboard settings and indicators

Current 9 Click electrical specifications

Software Support

We provide a library for the Current 9 Click as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.

Package can be downloaded/installed directly from NECTO Studio Package Manager(recommended way), downloaded from our LibStock™ or found on Mikroe github account.

Library Description

This library contains API for Current 9 Click driver.

Key functions

• current9_read_voltage This function reads raw ADC value and converts it to proportional voltage level.

• current9_read_current This function reads the input current level [A] based on @b CURRENT9_NUM_CONVERSIONS of voltage measurements.

• current9_set_vref This function sets the voltage reference for Current 9 click driver.

Example Description

This example demonstrates the use of Current 9 Click board™ by reading and displaying the input current measurements.

 void application_task ( void )
 {
     float current = 0;
     if ( CURRENT9_OK == current9_read_current ( &current9, &current ) )
     {
         log_printf( &logger, " Current : %.3f[A]rnn", current );
         Delay_ms( 1000 );
     }
 }

The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager(recommended way), downloaded from our LibStock™ or found on Mikroe github account.

Other Mikroe Libraries used in the example:

• MikroSDK.Board
• MikroSDK.Log
• Click.Current9

Additional notes and informations

Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.

mikroSDK

This Click board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.

For more information about mikroSDK, visit the official page.
