Color 4 Click

How does it work?

Color 4 Click is based on the VEML6040, an advanced RGB/ambient light sensor from Vishay Semiconductors, that provides fast and accurate spectral measurements. It is based on the Filtron™ technology achieving the closest ambient light spectral sensitivity to real-human eye responses. The VEML6040 senses red, green, blue, and white light and processes those signals using a CMOS signal conditioning circuit. This digital RGBW information can be used in feedback control systems, among other things, to monitor and actively control a light source.

This Click board™ detects light intensity under multiple lighting conditions and through different attenuation materials, including dark glass. The VEML6040 provides a selectable measurement range from 515.4lx up to 16.496lx with the highest sensitivity of 0.007865lx/step. Its peak sensitivities for red, green, and blue are 645nm, 575nm, and 460nm, respectively. Moreover, it provides excellent temperature compensation, keeping the output stable under changing temperatures.

Color 4 Click communicates with MCU using the standard I2C 2-Wire interface to read data and configure settings, supporting Standard Mode operation with a clock frequency of 100kHz and Fast Mode up to 400kHz. The VEML6040 contains one configuration register (00h) used for operation control and parameter setup. Its measurement results are stored in four separate registers, each for red, green, blue, and white, with addresses from 08h to 0Bh, respectively. All registers are 16-bit wide.

This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used as a reference for further development.

Specifications

Pinout diagram

This table shows how the pinout on Color 4 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	NC
	NC	2	RST	INT	15	NC
ID COMM	CS	3	CS	RX	14	NC
	NC	4	SCK	TX	13	NC
	NC	5	MISO	SCL	12	SCL	I2C Clock
	NC	6	MOSI	SDA	11	SDA	I2C Data
Power Supply	3.3V	7	3.3V	5V	10	NC
Ground	GND	8	GND	GND	9	GND	Ground

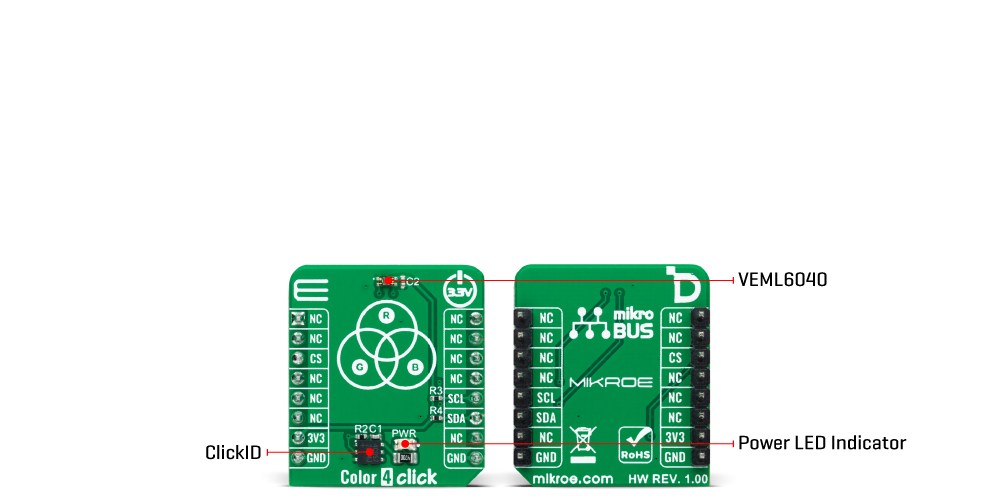

Onboard settings and indicators

Color 4 Click electrical specifications

Software Support

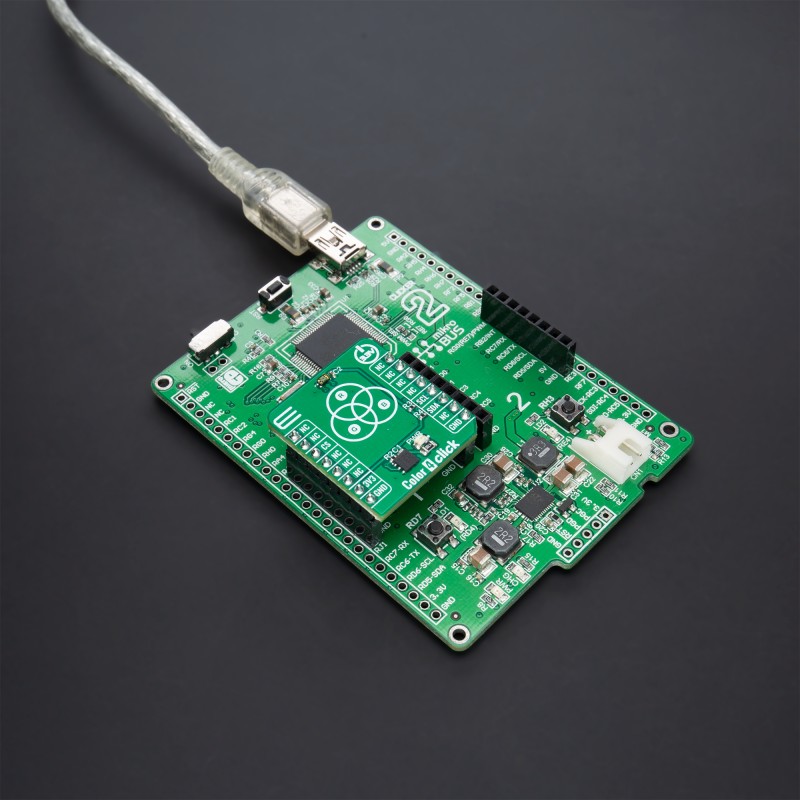

We provide a library for the Color 4 Click as well as a demo application (example), developed using Mikroe compilers. The demo can run on all the main Mikroe development boards.

Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.

Library Description

This library contains API for Color 4 Click driver.

Key functions

• color4_set_config Color 4 set configuration function.

• color4_get_color_data Color 4 get color data function.

• color4_get_ambient_light Color 4 get ambient light level function.

Example Description

This library contains API for the Color 4 Click driver. This driver provides the functions for the sensor configuration and for reading RGBW and ambient light data from device. This example displays RGBW data, Ambient light level, CCT data and the light color names.

void application_task ( void )
 {
     if ( COLOR4_OK == color4_get_color_data( &color4, COLOR4_RED, &red_data ) )
     {
         log_printf( &logger, " Red: %urn", red_data );
     }

     if ( COLOR4_OK == color4_get_color_data( &color4, COLOR4_GREEN, &green_data ) )
     {
         log_printf( &logger, " Green: %urn", green_data );
     }

     if ( COLOR4_OK == color4_get_color_data( &color4, COLOR4_BLUE, &blue_data ) )
     {
         log_printf( &logger, " Blue: %urn", blue_data );
     }

     if ( COLOR4_OK == color4_get_color_data( &color4, COLOR4_WHITE, &white_data ) )
     {
         log_printf( &logger, " White: %urn", white_data );
     }
     log_printf( &logger, " - - - - - - -  - - - - rn" );

     if ( COLOR4_OK == color4_get_ambient_light( &color4, &ambient_light ) )
     {
         log_printf( &logger, " ALS lux level: %.2frn", ambient_light );
     }

     if ( COLOR4_OK == color4_get_cct( &color4, &cct ) )
     {
         log_printf( &logger, " CCT: %.2frn", cct );
     }
     log_printf( &logger, " - - - - - - -  - - - - rn" );

     display_color();
     log_printf( &logger, " ----------------------rn" );
     Delay_ms( 1000 );
 }

The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.

Other Mikroe Libraries used in the example:

• MikroSDK.Board
• MikroSDK.Log
• Click.Color4

Additional notes and informations

Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all Mikroe compilers.

mikroSDK

This Click board™ is supported by a mikroSDK - Mikroe Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from LibStock and installed for the compiler you are using.

For more information about mikroSDK, visit the official page.
