Color 12 Click

How does it work?

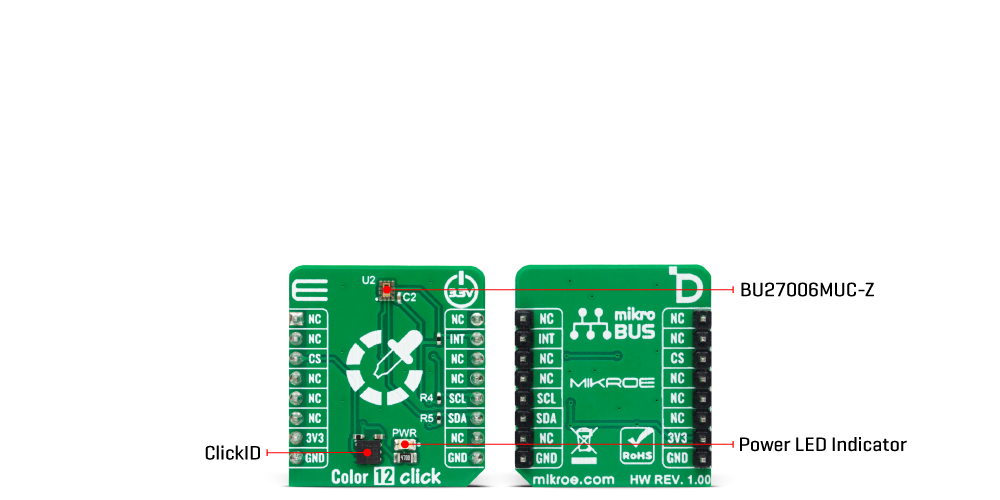

Color 12 Click is based on the BU27006MUC-Z, an advanced digital color sensor from Rohm Semiconductor with an integrated flicker sensing function. The primary purpose of this sensor is to sense Red, Green, Blue (RGB), and Infrared light and convert them into digital values via the I2C interface. The BU27006MUC-Z stands out with its exceptional performance, high sensitivity, wide dynamic range, and excellent IR-cut characteristics. These features allow for precise illuminance measurement, typically up to 50klx, with peak wavelengths for red, green, and blue of 645/575/460nm, respectively, providing accurate information about the intensity of ambient light.

In addition, the BU27006MUC-Z excels at accurately determining the ambient light's color temperature. It can effectively detect flicker noise originating from displays and room lighting, with a typical sensitivity of 10klx. This Click board™ serves a wide range of residential and commercial lighting management applications. It can be employed for contrast enhancement in various settings where optimal lighting conditions are necessary for an immersive visual experience. Moreover, the accurate detection of ambient light makes it suitable for applications that require precise backlight control, ensuring optimal visibility and energy efficiency.

Color 12 Click communicates with MCU using the standard I2C 2-Wire interface to read data and configure settings, supporting Standard Mode operation with a clock frequency of 100kHz and Fast Mode up to 400kHz. Also, it uses an interrupt pin, the INT pin of the mikroBUS™ socket, used when an interrupt occurs to alert the system when some of the results cross upper or lower threshold settings.

This Click board™ can only be operated with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used as a reference for further development.

Specifications

Pinout diagram

This table shows how the pinout on Color 12 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	NC
	NC	2	RST	INT	15	INT	Interrupt
ID COMM	CS	3	CS	RX	14	NC
	NC	4	SCK	TX	13	NC
	NC	5	MISO	SCL	12	SCL	I2C Clock
	NC	6	MOSI	SDA	11	SDA	I2C Data
Power Supply	3.3V	7	3.3V	5V	10	NC
Ground	GND	8	GND	GND	9	GND	Ground

Onboard settings and indicators

Color 12 Click electrical specifications

Software Support

We provide a library for the Color 12 Click as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.

Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on MIKROE github account.

Library Description

This library contains API for Color 12 Click driver.

Key functions

• color12_get_color_data Color 12 gets the color measurement result function.

• color12_set_config Color 12 sets the configuration function.

• color12_get_config Color 12 gets the configuration function.

Example Description

This library contains API for the Color 12 Click driver. The demo application sets sensor configuration and reads and displays RGB/IR measurement results.

void application_task ( void )
 {
     if ( COLOR12_OK == color12_get_color_data( &color12, COLOR12_DATA_RED, &color_data ) )
     {
         log_printf( &logger, " Red : %urn", color_data );
     }

     if ( COLOR12_OK == color12_get_color_data( &color12, COLOR12_DATA_GREEN, &color_data ) )
     {
         log_printf( &logger, " Green : %urn", color_data );
     }

     if ( COLOR12_OK == color12_get_color_data( &color12, COLOR12_DATA_BLUE, &color_data ) )
     {
         log_printf( &logger, " Blue : %urn", color_data );
     }

     if ( COLOR12_OK == color12_get_color_data( &color12, COLOR12_DATA_IR, &color_data ) )
     {
         log_printf( &logger, " IR : %urn", color_data );
     }
     log_printf( &logger, " ---------------------- rn" );
     Delay_ms( 1000 );
 }

The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on MIKROE github account.

Other MIKROE Libraries used in the example:

• MikroSDK.Board
• MikroSDK.Log
• Click.Color12

Additional notes and informations

Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.

mikroSDK

This Click board™ is supported with mikroSDK - MIKROE Software Development Kit, that needs to be downloaded from the LibStock and installed for the compiler you are using to ensure proper operation of mikroSDK compliant Click board™ demo applications.

For more information about mikroSDK, visit the official page.
