Charger 6 Click is a compact add-on board that represents a single-cell battery charger. This board features the BQ25601, an I2C controlled battery charger for high input voltage and narrow voltage DC power path management from Texas Instruments. This buck charger supports USB, and it’s optimized for USB voltage input. The low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time, and extends battery life during discharge. It also has a programmable current limiting, allowing it to use an external power supply rated up to 13.5V. This Click board™ is suitable as a Li-Ion and Li-polymer battery charger for portable devices and accessories, power tools, and more.
Charger 6 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
This product is no longer in stock
Availability date:
Charger 6 Click as its foundation uses the BQ25601, a fast-charging solution for single-cell Li-Ion and Li-polymer battery with high input voltage suitable for a wide range of smartphones, tablets, and portable devices from Texas Instruments. The low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time, and extends battery life during discharge. It is optimized for USB 5V voltage input, has a programmable current limiting based on the built-in USB interface, and allows the use of an external power supply from 3.9 to 13.5V. The BQ25601 also meets USB On-the-Go (OTG) operation power rating specification by supplying 5.15 V on the VBUS line with a constant current limit of up to 1.2A. The device provides automatic power path selection on the SYS line from the VBUS input source, battery, or both.
The power path management regulates the system slightly above battery voltage but does not drop below 3.5 V minimum system voltage. With this feature, the system maintains operation even when the battery is completely removed. When the input current limit or voltage limit is reached, the power path management automatically reduces the charge current to zero. As the system load increases, the power path discharges the battery until the system power requirement is met.
Charger 6 Click communicates with MCU using the standard I2C 2-Wire interface and supports both Standard and Fast Mode with a transfer rate of 100 and 400kbit/s. The I2C serial interface with charging and system settings makes this Click board™ a truly flexible solution. Also, it uses several GPIO pins, one of which is an interrupt pin, the INT pin of the mikroBUS™ socket, used as a ‘fault’ indicator. This pin sets immediately notifies the host when a fault occurs.
This Click board™ also uses two LED indicators, labeled as PG and STAT, used as power good and charging status indicator. PG indicates a good input source if the input voltage is above the SLEEP mode threshold and the current limit is above 30mA, while STAT reports the charging status and any fault conditions. CE pin routed to the CS pin on the mikroBUS™ socket enables battery charging process by setting this pin into a low logic state. PSEL pin routed to the PWM pin on the mikroBUS™ socket is used as a power source selection input and sets 500mA input current limit by pulling this pin high, otherwise set 2.4A input current limit by pulling this pin low. The BQ25601 also provides a QON pin, routed to the RST pin on the mikroBUS™ socket, for BATFET enable and reset control, to exit low-power mode or whole system reset function.
The charger provides a temperature monitoring feature selectable via jumper labeled as TEMP SEL, where the user can choose between external or internal mode of monitoring. For external mode, a single thermistor input for the battery temperature monitor is provided.
This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before use with MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
Type
Battery charger
Applications
Can be used for a Li-Ion and Li-polymer battery charger for portable devices and accessories, power tools, and more.
On-board modules
BQ25601 - fast-charging solution for single-cell Li-Ion and Li-polymer battery with high input voltage suitable for a wide range of smartphones, tablets, and portable devices from Texas Instruments
Key Features
High efficiency, USB On-The-Go feature, high battery discharge efficiency, accuracy, programmable input current limit, and more.
Interface
I2C
Feature
No ClickID
Compatibility
mikroBUS™
Click board size
M (42.9 x 25.4 mm)
Input Voltage
3.3V,External
This table shows how the pinout on Charger 6 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

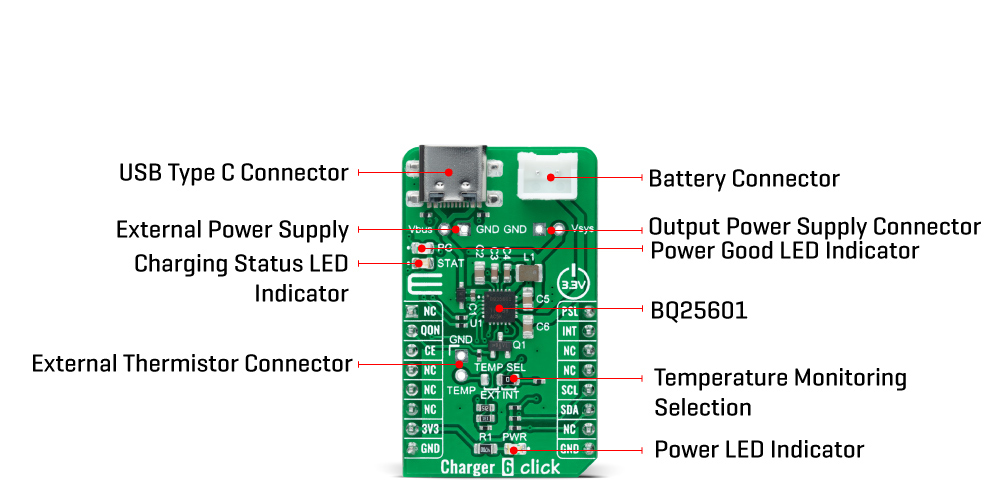

Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
LD2 | STAT | - | Charging Status LED Indicator |
LD3 | PG | - | Power Good LED Indicator |
JP1 | TEMP SEL | Left | Temperature Monitoring Selection EXT/INT: Left position EXT, Right position INT |
CN2 | VBUS | Unpopulated | External Power Supply Connector |
CN3 | VSYS | Unpopulated | Converters Output Voltage Connector |
CN4 | TEMP | Unpopulated | External Thermistor Connector |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage VCC | - | 3.3 | - | V |
Supply Voltage VBAT | 3.9 | - | 13.5 | V |
Output Voltage VSYS | 3.68 | - | 4.45 | V |
Battery Charging Voltage | 3.856 | - | 4.624 | V |
Battery Charging Output Current | 0 | - | 3 | A |
Operating Temperature Range | -40 | +25 | +85 | °C |
We provide a library for the Charger 6 Click as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager(recommended way), downloaded from our LibStock™ or found on mikroE github account.
Library Description
This library contains API for Charger 6 Click driver.
Key functions:
charger6_cfg_setup
- Config Object Initialization function.charger6_init
- Initialization function.charger6_default_cfg
- Click Default Configuration function.Examples description
This library contains API for the Charger 6 Click driver. The library contains drivers to enable/disable battery charging, set current limit, set system min voltage, set fast charge current, set charge voltage, etc.
The application is composed of three sections :
void application_task ( void ) { charger6_get_status( &charger6, &chg_status ); Delay_ms( 100 ); display_power_good_status( ); Delay_ms( 100 ); display_chrg_status( ); Delay_ms( 100 ); display_bat_status( ); Delay_ms( 100 ); display_chrg_fault_status( ); Delay_ms( 100 ); display_vsys_status( ); log_printf( &logger, "-------------------------------rn" ); Delay_ms( 2000 ); }
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager(recommended way), downloaded from our LibStock™ or found on mikroE github account.
Other mikroE Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 click or RS232 click to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
This Click board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
For more information about mikroSDK, visit the official page.
