MIKROE-5843
21 g
Status:

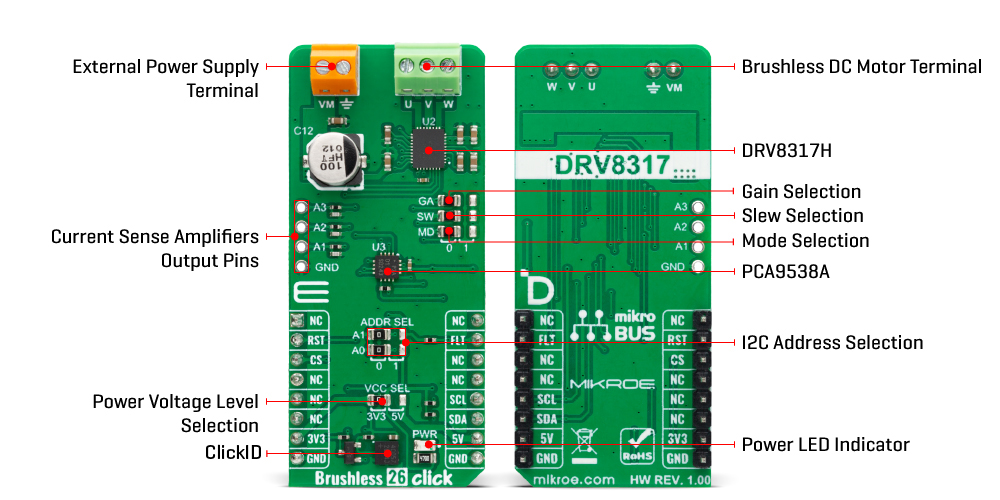

Type Brushless Applications Can be used for the development of brushless DC (BLDC) motor modules, air purifiers, dishwasher pumps, vacuum robots, washer and dryer pumps, coffee machines, and more On-board modules DRV8317H - three-phase PWM motor driver from Texas Instruments Key Features Three-phase BLDC motor driver, configurable slew rate for EMI mitigation, programmable fain current sensing, supports up to 200kHz PWM frequency, integrated shoot-through protection, wide power supply voltage operating range, multiple control interface options, integrated current sensing, and more Interface I2C ClickID Yes Compatibility mikroBUS Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V or 5V
This product is no longer in stock
Availability date: 10/06/2023
| Type | Brushless |
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
